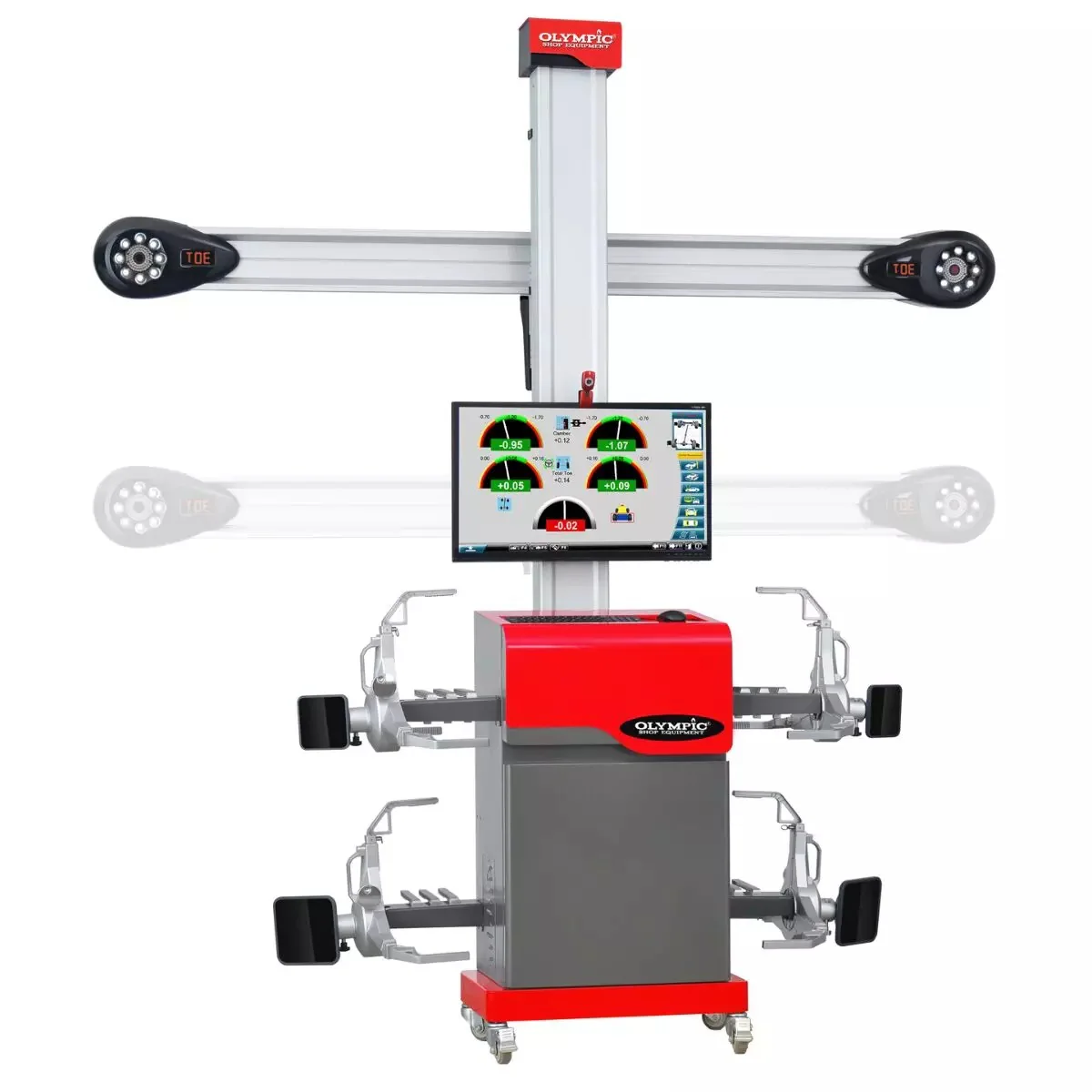

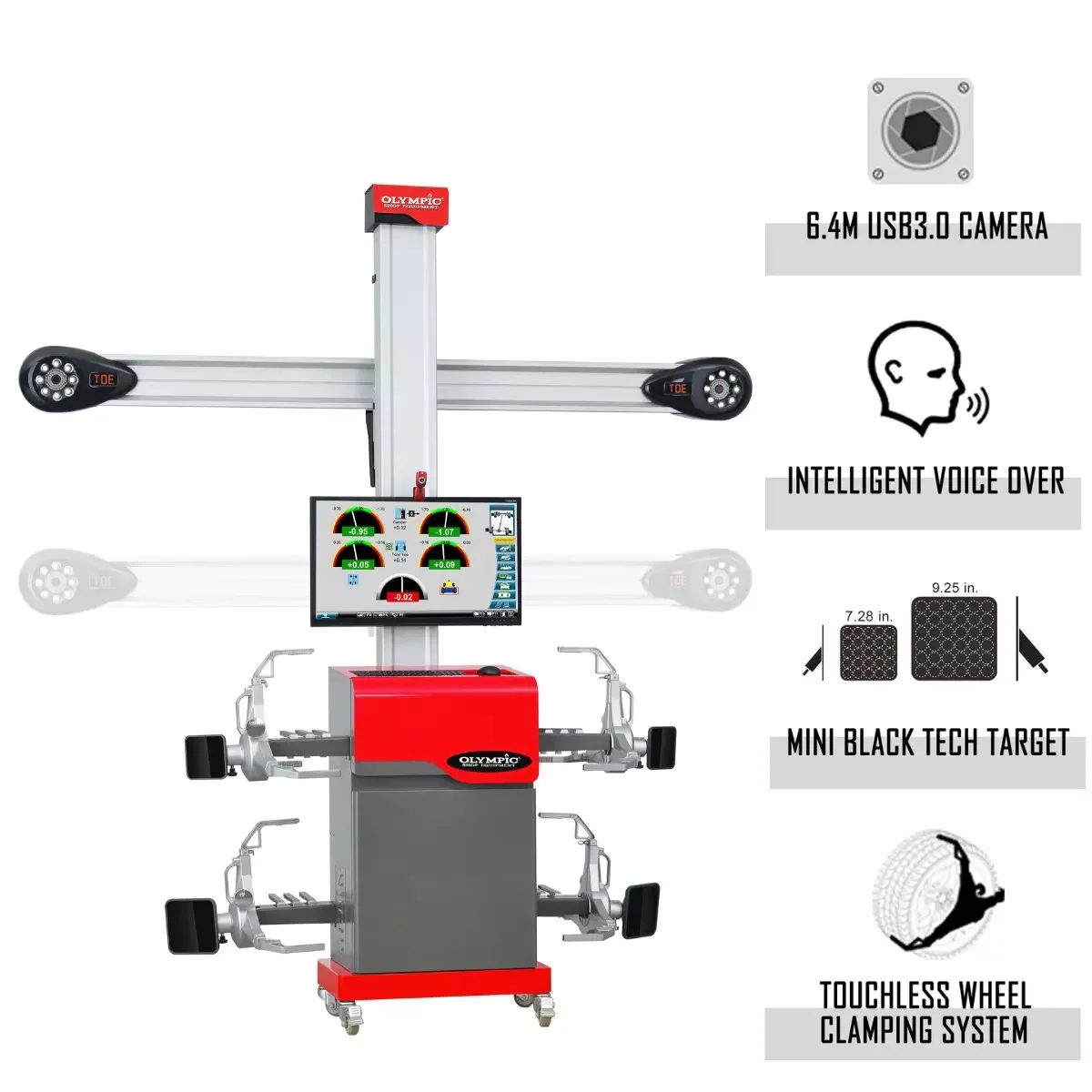

Olympic AS800
True 3D Touchless Alignment Machine
$16,795
$11,157
Features / Specs
Dynamic 3D precision, touchless technology, and Olympic reliability.
The AS800 delivers fast, damage-free, and highly accurate alignments with its patented touchless 3-point tire clamps and true 3D measuring system. Covering 95% of vehicles on the road.
Warranty: 5-Year
- Olympic 5-Year Warranty
- True 3D touchless wheel alignment
- Sony HD Industrial 6.4MP camera
- Dual screens for simultaneous upper/lower view
- Vivid 3D training videos included
- Drive-on cameras improve parking efficiency & safety
- Automatic synchronized camera beam tracking

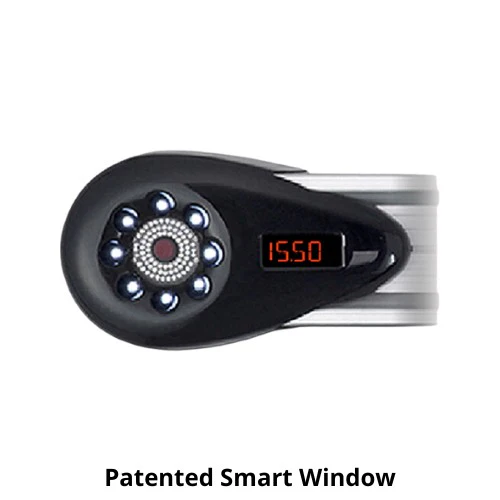

- Patented smart window display with real-time data
- 720° vehicle view via smart software

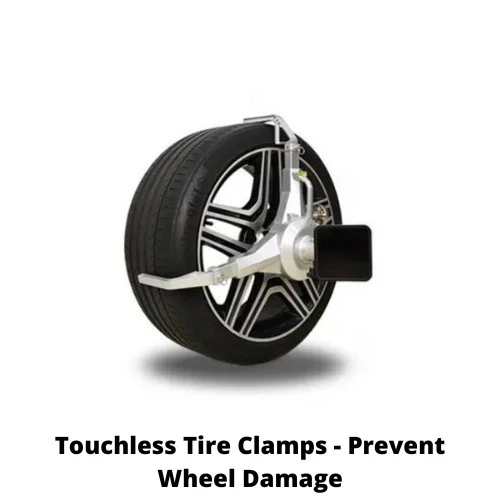

- Touchless 3-point tire clamps — no rim contact
- Multi-language support with yearly software updates
- Certified & tested at 150% of rated capacity
| Alignment Type | True 3D (Rolling Compensation) |
|---|---|
| Clamp Type | 3-Point Tire Adapter (No rim contact) |
| Camera | Sony 6.4MP USB3.0 |
| Smart Tracking | Auto-synchronized beam tracking |
| Smart Window Tech | Real-time compensation & anticipation |
| Software | 720° vehicle display, hand signal recognition |
| Target Material | Sun-resistant polymer “Black-Tech” |
| Functions | Toe, Max Turning Angle, Toe-out-on-turn, Ride Height, Wheelbase, Track Width, Offset, Roll Radius |
| Tire Diameter Range | Passenger-Commercial Tires |
| Voltage | 110V, 60Hz, 1PH |
| Package Dimensions | 3 Crates: 14″×11″×111″ (x2), 39″×30″×53″ |
| Package Weight | 640 lbs |
