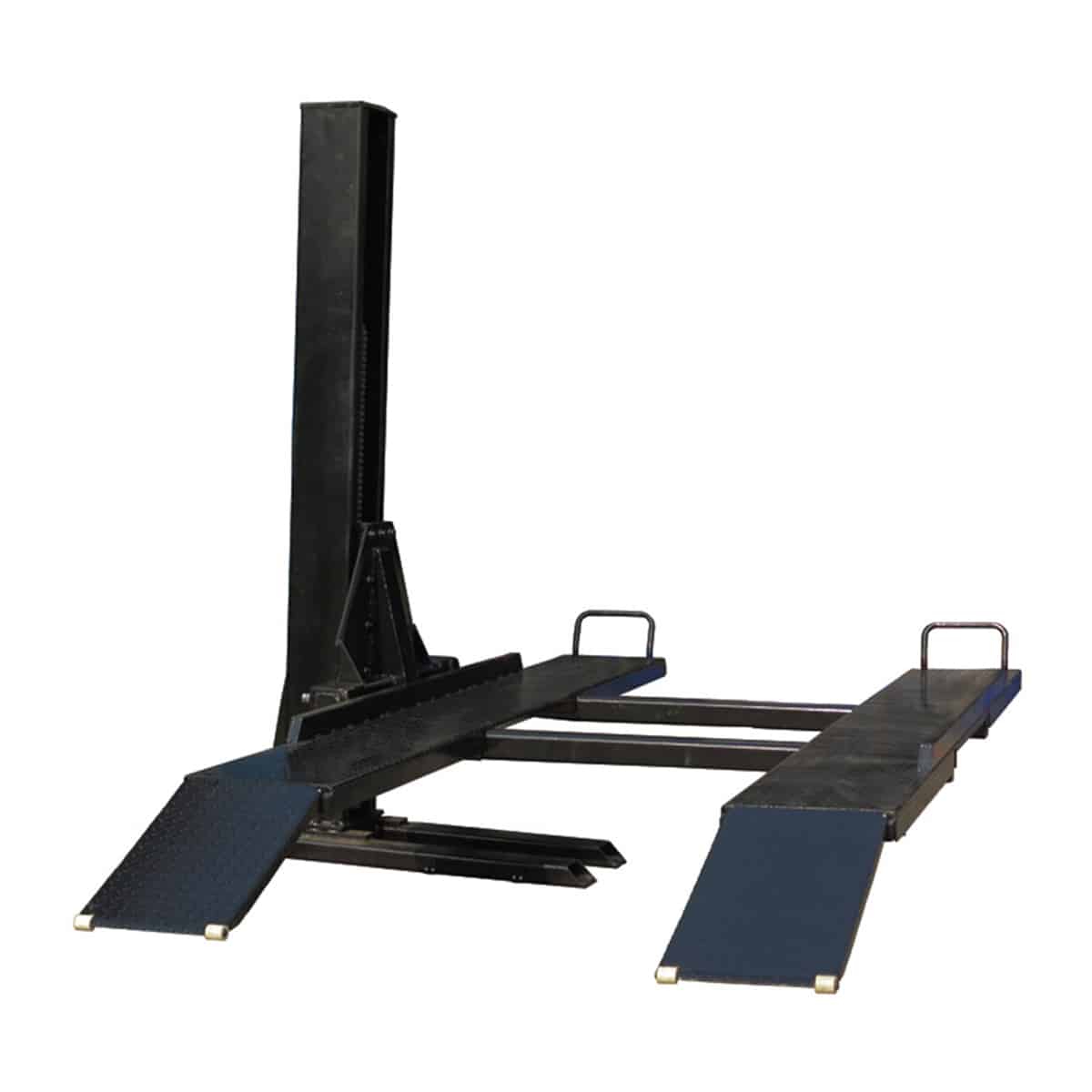

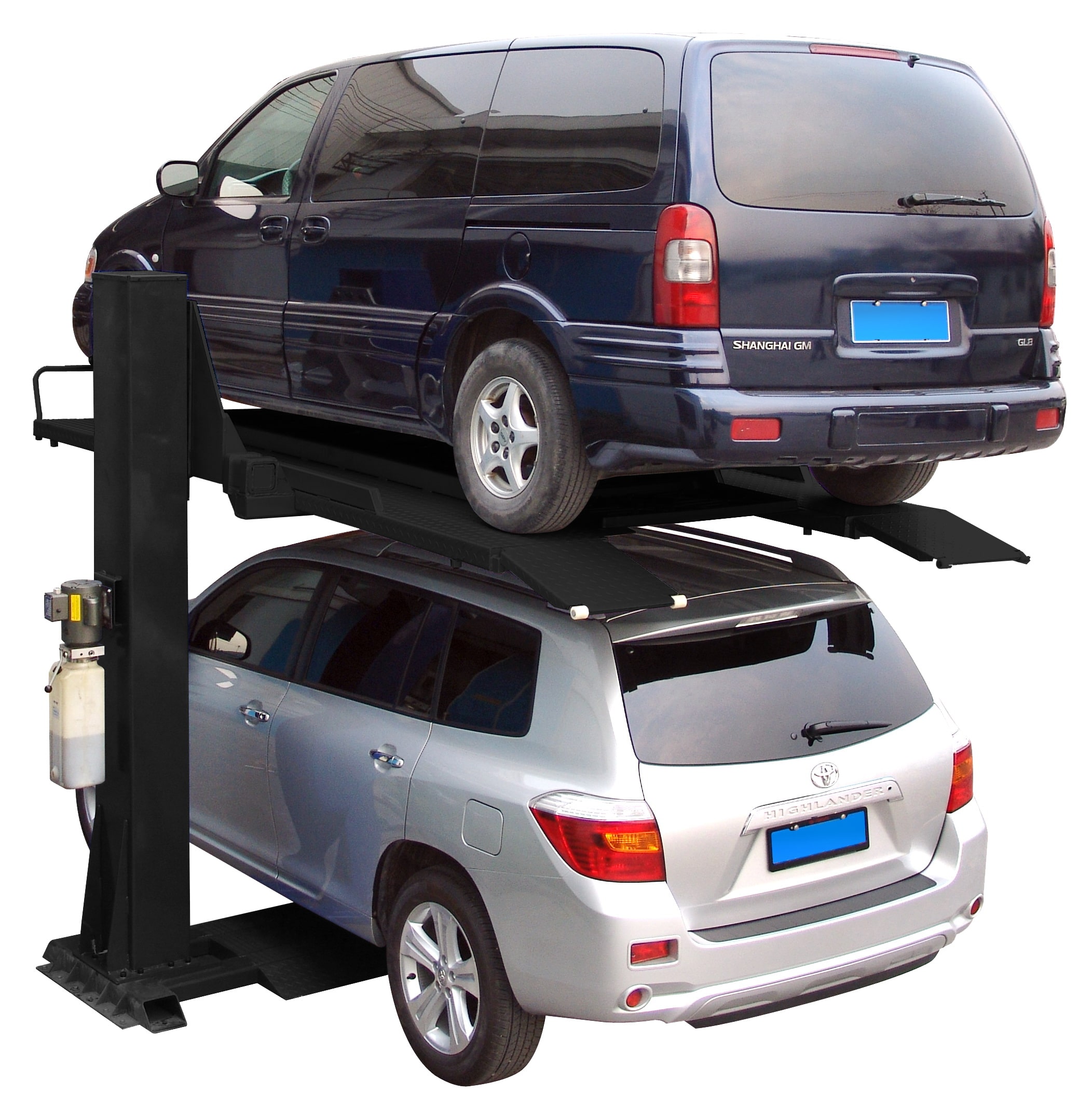

SP-6K-SS

6,000 lb Single Column Parking Lift

$6,899

$5,749

Features
  • 6,000 lbs capacity
  • Low Profile approach ramps for vehicles with low ground clearance
  • Lift can be installed to lift from left or right side
  • Lift can be installed to lift from left or right side
  • Minimal footprint allows for multiple installations
  • Low post height allows for low
  • Commercial grade hydraulic cylinder and heavy-duty leaf chain
  • Reliable DURO electric/hydraulic pump
  • Optional drip trays available
Specifications
Lifting Capacity 6,000 lb
Overall Length w/Ramp 188″
Overall Width (Outside Base Plates) 112-3/16″
Overall Height 110-1/4″
Lifting Height 81-3/16″
Width Between Posts N/A
Length of Runways 152″
Width of Runways 18-7/8″
Lifting Speed 90S
Maximum Clearance under Track 77-3/16″
Cable Diameter 3/8″
Base Plate Size 52″ x 39″
Lock Position 19
Ship Weight 2,610 lbs
Power 115V – 20 Amp – 1PH
Details on Freight

Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:

  • You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
  • Lift Gate delivery service is not available for auto lifts.
  • You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
  • If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
  • You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.

When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
