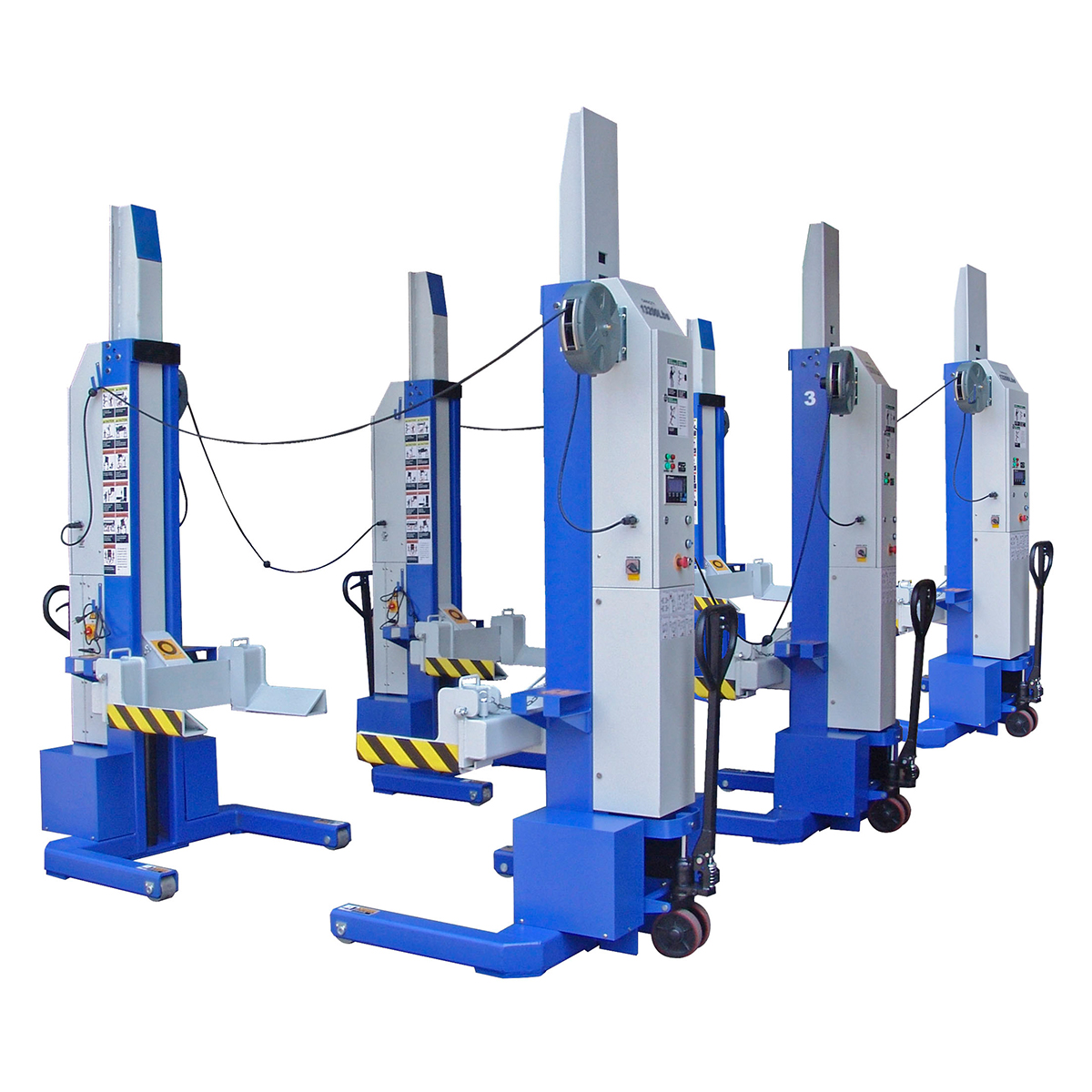

Mobile Single Column Lifts
(6-Columns) 78,000 lb MSC-13K-B-678$48,199
Description
Each column is capable of lifting 13,200 pounds. In a tandem of 4, that means 52,800lbs. of lifting capacity. Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns. The iDEAL Mobile Column Lift comes with the latest lifting technology pre-installed.
Features
- Easy to use master controller for individual or paired synchronized operation
- Siemens PLC and Electro-Optical encoder provide continuous synchronization of all columns
- Adjustable lifting forks accommodate the widest range of wheels
- Easily positioned with pallet jack style wheel
- Heavy-duty hydraulic system
- Large carriage bearings provide durable, fast and easy lifting
- LCD screen with keyboard offers easy to read visuals of settings and lifting height
- Independent mechanical locking system
- Emergency switch on each column provide highest safety assurance

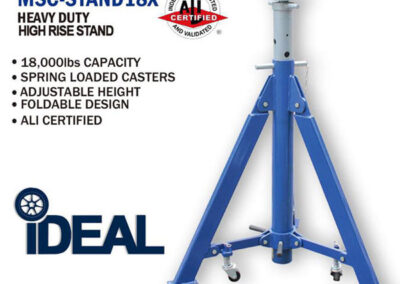

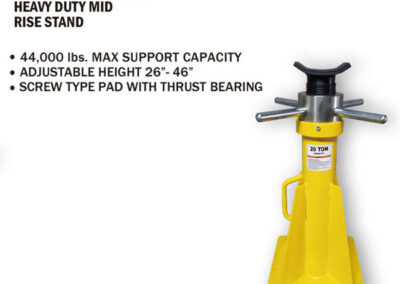

- Optional jack stands available
SPECIFICATIONS
Lift Models | MSC-13K-B-226 | MSC-13K-B-452 | MSC-13K-B-678 |
Column Configurations | 2 Column | 4 Column | 6 Column |
Capacity | 26,000 lbs | 52,000 lbs | 78,000 lbs |
AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | ||
DC Power (Output, Per Column) | 24VDC | ||
Lifting Height | 67.1″ | ||
Column Heights – Min/Max | Min. 88.6″ / Max 155.5″ | ||
Overall Width | 44.1″ | ||
Fork Adjustable Range | 6.3″ – 22″ | ||
Fork Length | 14″ | ||
Fork to Column Clearance | 9.3″ | ||
Rise Time | 75S | ||
Descent Time | 60S | ||
Maximum Distance between Columns | 32.8′ | ||
Minimum Concrete Surface Strength | 3000 PSI | ||
Noise Level | 70 dB(A) | ||
Set-Up / Operation | Indoors | ||
Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) |
||
Ship Weight | 1,210 lbs per Column |
TUXEDO Locations:
- Temecula, CA
- Orlando, FL
- Kennesaw, GA
- Marshalltown, IA
- Elwood, IN
- Windham, ME
- Southfield, MI (Drop Ship Only)
- Rogers, MN
- Reidsville, NC
- Bohemia, NY
- Reading, PA
- Alvarado, TX
- West Valley City, UT
*Locations subject to change, please contact us for the most updated information
Details On Freight
CLICK HERE for full details on equipment delivery options.
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
