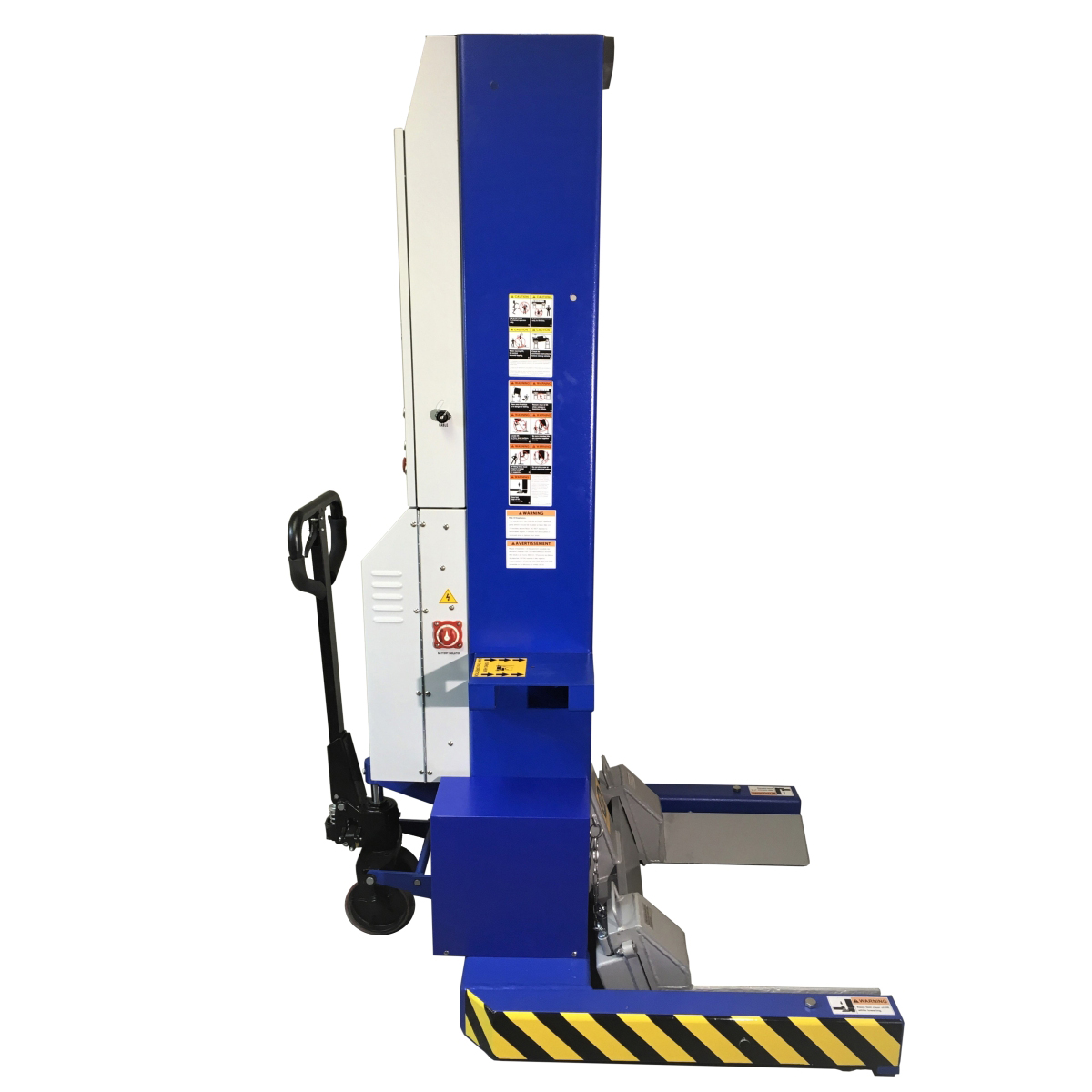

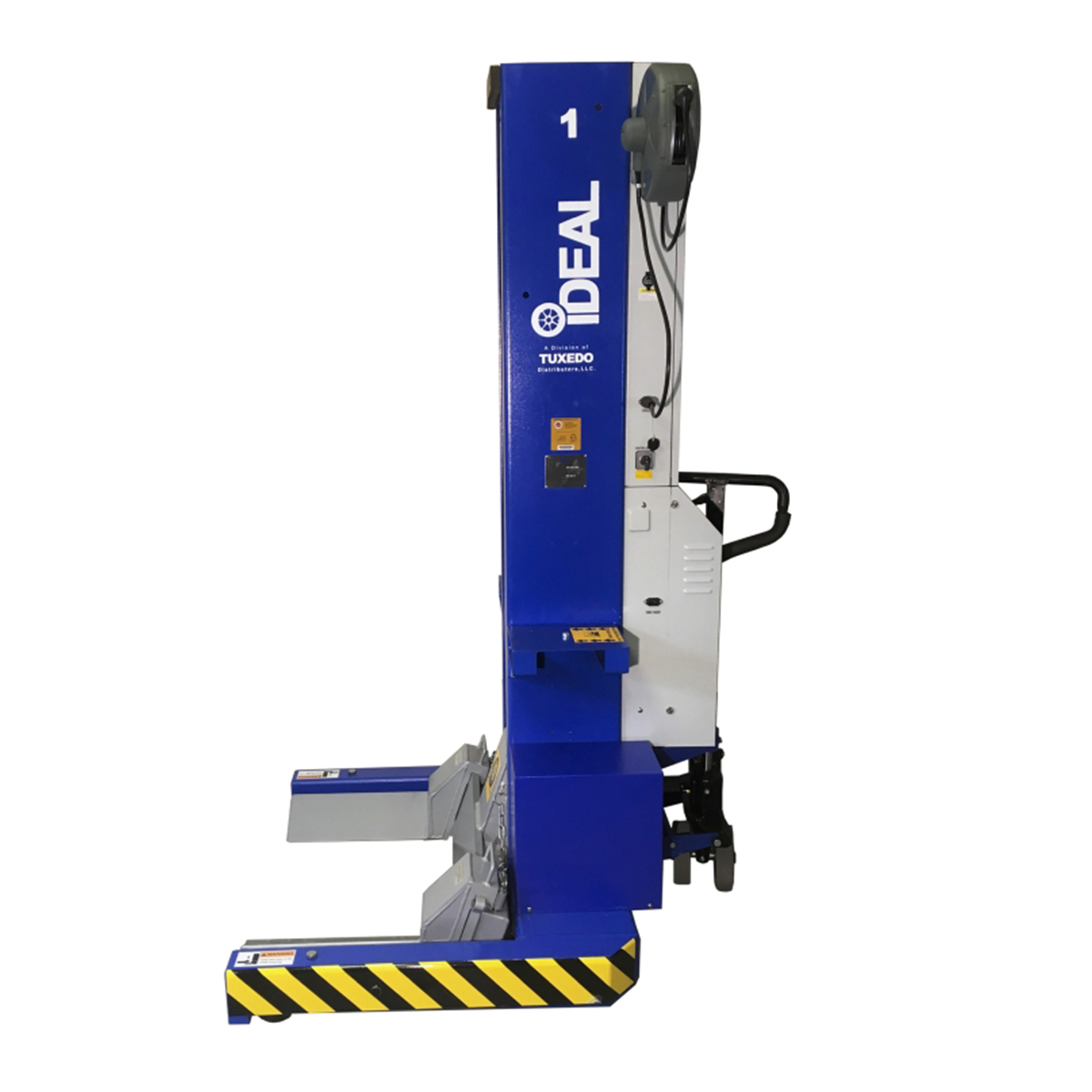

iDEAL - MSC-18K-X-472 (4)
ALI Certified 18,000 lb Capacity Heavy Duty Mobile Column Lifts
$39,999
Description/Features
• 24VDC Battery Operation with Onboard Charging System
• Communication Cable with Retractable Cable Reels
• U-Shape Wiring Configuration for quick vehicle entry & exiting
• Convenient Operation from any Column
• Independent Mechanical Locking System
• PLC & Optical Encoder provides continuous synchronization for Columns
• Easily positioned with Pallet Jack type device with Poly Caster Wheels

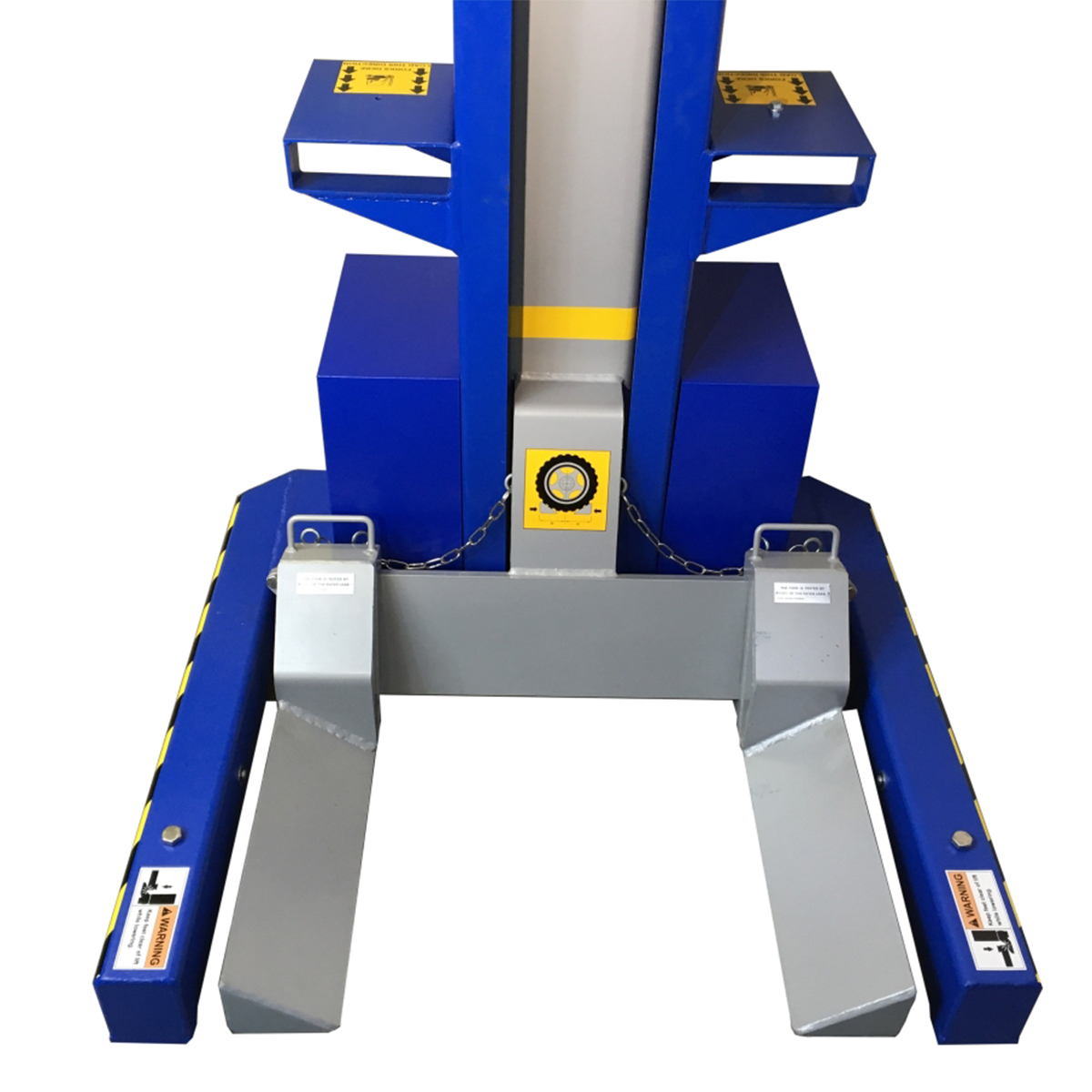

• Adjustable Lifting Forks for the widest range of Wheel Diameters
• Emergency Switch per each Column, provides the highest safety assurance
• Easy to use Master Control Panel for Individual or Paired Synchronized Operation
• LCD Screen with Keypad offers ‘easy to read’ visuals for Settings Lifting Height
• Conveniently stored out of the way when not in use to maximize work space

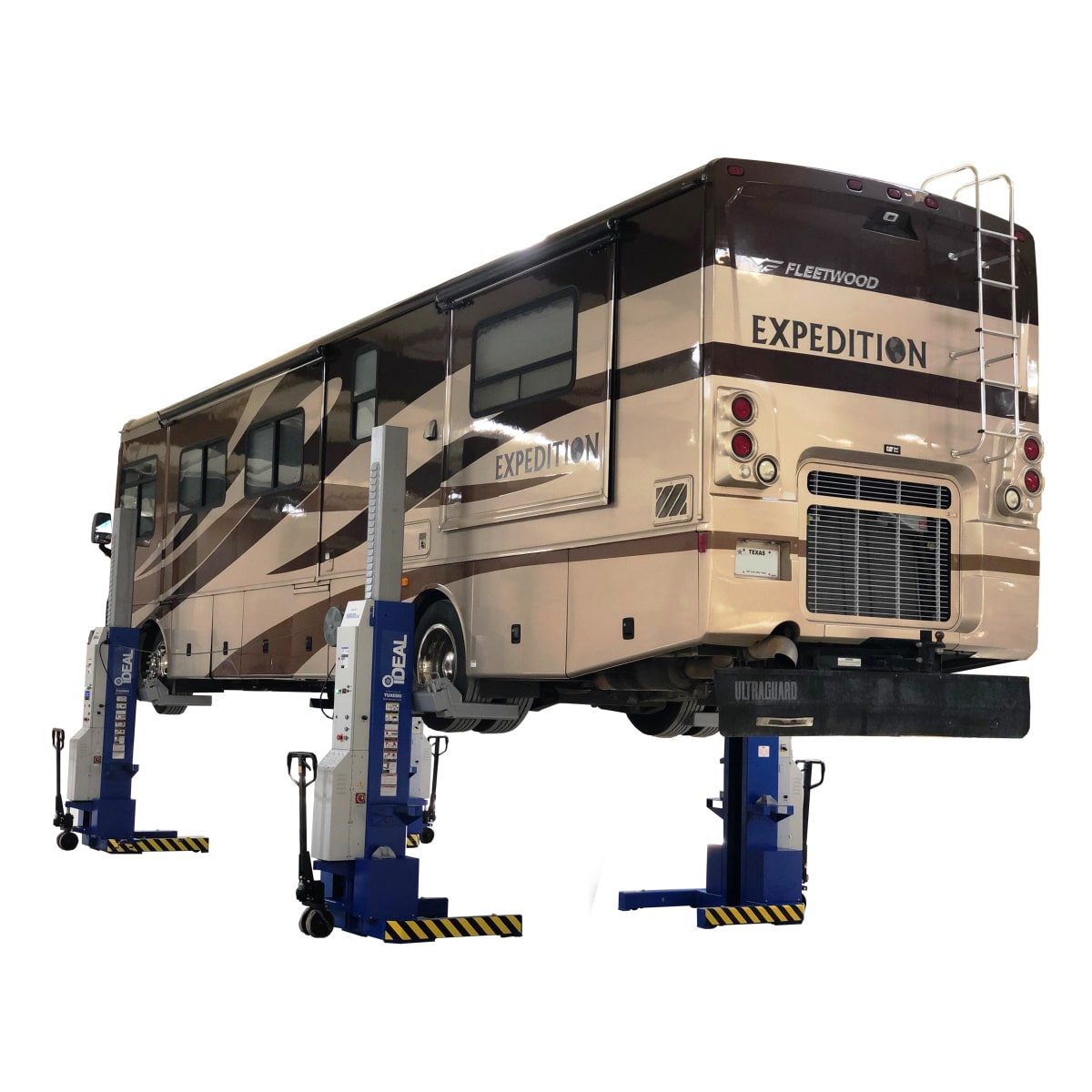

• Available in Two, Four or Six Column Configurations

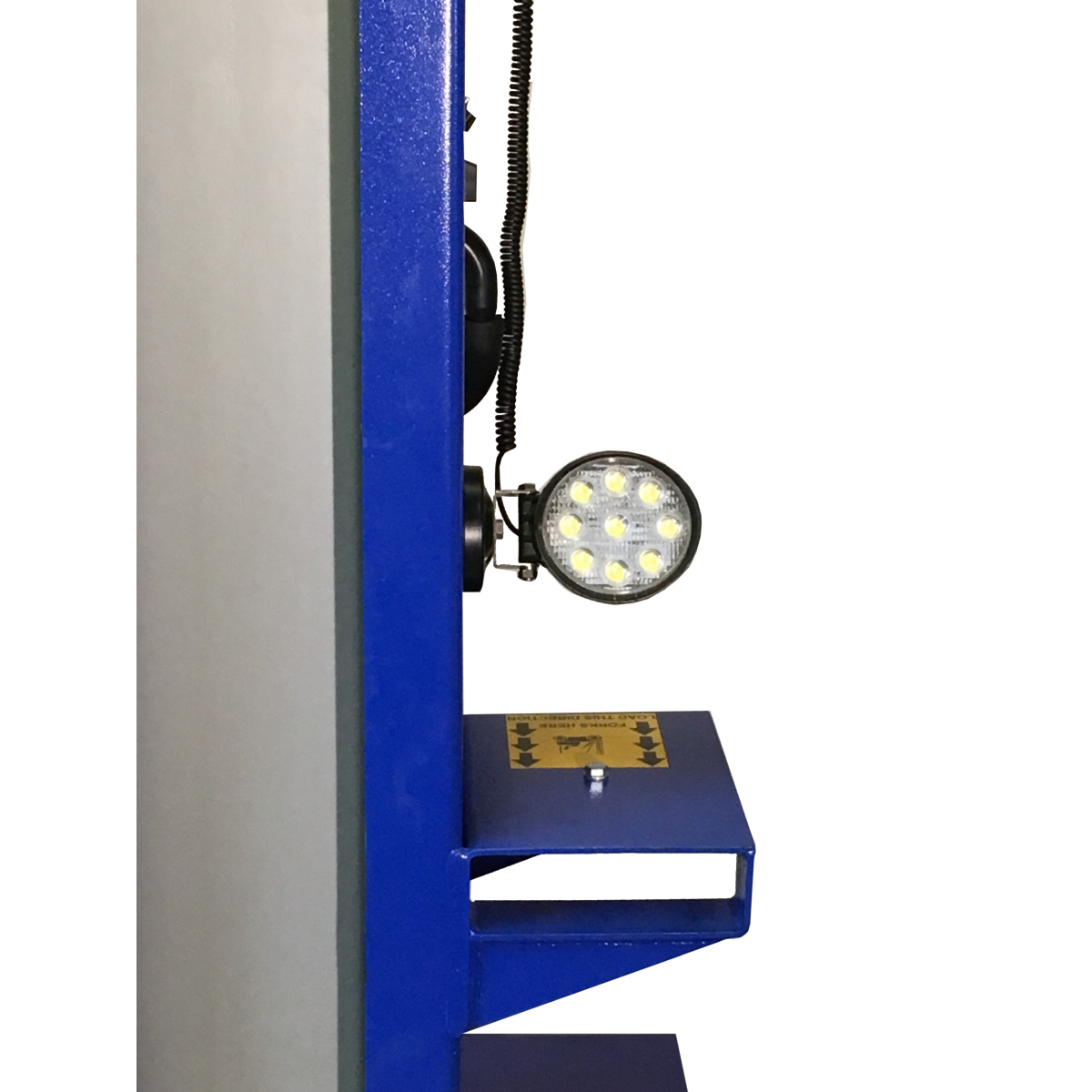

• New! LED Light with Magnetic Base!!
• New! Optional MSC ALI Certified Accessories available
SPECIFICATIONS
| Lift Models | MSC-18K-X-236 | MSC-18K-X-472 | MSC-18K-X-6108 |
| Column Configurations | 2 Column | 4 Column | 6 Column |
| Capacity | 36,000 lbs | 72,000 lbs | 108,000 lbs |
| AC Power (Input, Per Column) | 100-140VAC, 60Hz, 1 PH | ||
| DC Power (Output, Per Column) | 24VDC | ||
| Lifting Height | 67.1″ | ||
| Column Heights – Min/Max | Min. 88.6″ / Max. 155.5″ | ||
| Overall Width | 44.1″ | ||
| Fork Adjustable Range | 12.6″- 22″ | ||
| Fork Length | 17.9″ | ||
| Fork to Column Clearance | 10″ | ||
| Rise Time | 100S | ||
| Descent Time | 60S | ||
| Maximum Distance between Columns | 32′ 8″ | ||
| Minimum Concrete Surface Strength | 3000 PSI | ||
| Noise Level | 70 dB(A) | ||
| Set-Up / Operation | Indoors | ||
| Battery Type (Not included) | 12VDC Sealed Deep Cycle Battery (BCI Group 31, AH-105) | ||
| Ship Weight | 1,584 lbs per Column | ||
MSC-STAND18X
MSC-STAND18X – $999
MSC18KX-LTVAK
MSC18KX-LTVAK – $1,499
MSC18KX-CRSBM
MSC18KX-CRSBM – $2,599
MSC-FL-RAMPSET
MSC-FL-RAMPSET – $1,699
MSC-FORKSPACER
MSC-FORKSPACER – $769
MSC-44K-Stand-46
MSC-44K-STAND-46 – $439
MSC-44K-Stand-26
MSC-44K-STAND-26 – $339
