AMGO MRL09
9,000 lb Mid-Rise Lift
$4,150
Description
AMGO mid-rise scissors lift model MRL09 is designed with hydraulic locking system, and double entrance drive-in ramps which are suitable for most vehicles, especially lower chassis cars.

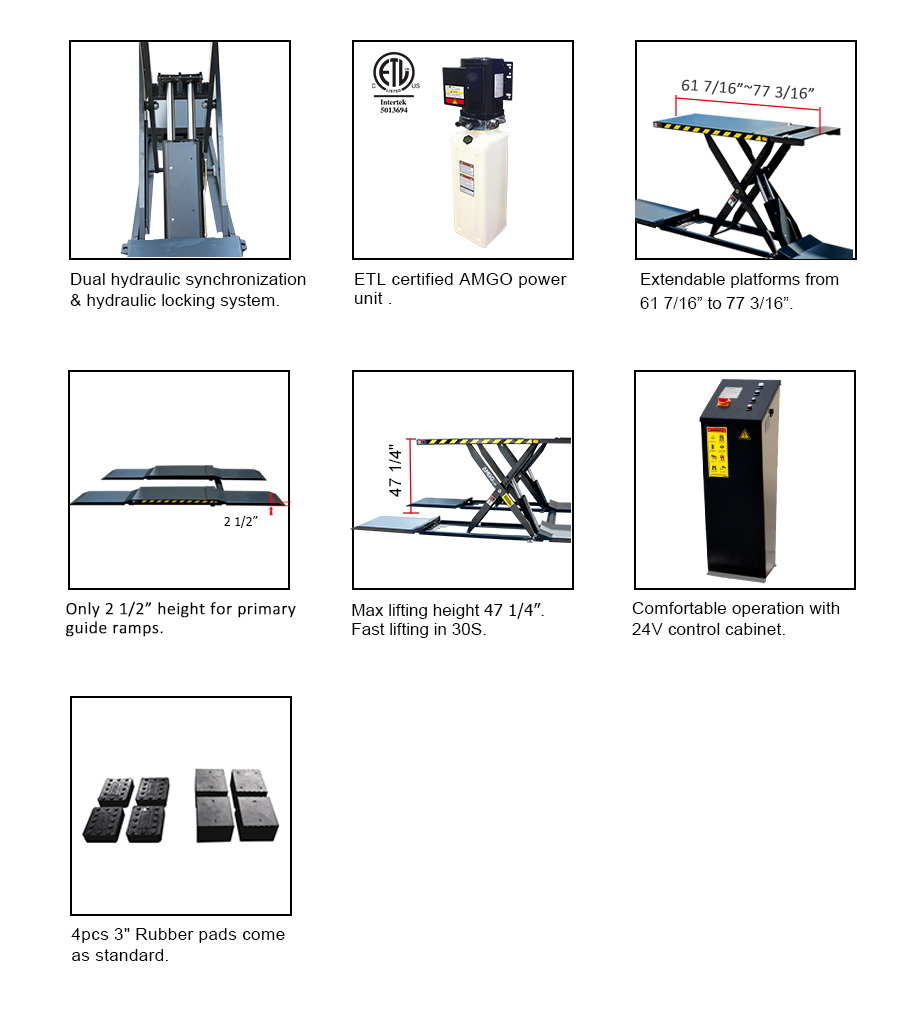

Features
- 9,000LBS(4000kg) capacity.
- Mid rise scissors lift, 24V Safety voltage control.
- Dual hydraulic synchronization & hydraulic locking system;
- The lifting scissors are made of thickened steel which is more strong;
- Adjustable lift platform length, applicable to vehicles with different wheelbases;
- Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles;
- Flexible structure design, users can choose either flush mount or surface mount installation;
- Standard ETL certificated power unit;
- AMGO global 5-3-2 warranty policy:
- Five-year Warranty on Steel Components,
- Three-year Warranty on Hydraulic Parts,
- Two years on Electrical Components.
Specifications
| Lifting Capacity | 9,000lbs (4000kg) |
| Lifting Time | 29S |
| A: Max Lifting Height | 47 1/4″ (1200mm) |
| B: Minimum Height | 5 3/8″ (135mm) |
| C: First Stage Ramp Height | 2 1/2″ (65mm) |
| D: Overall Length(Inc. Ramps) | 156 3/4″ (3980mm) |
| E: Overall Width | 76 3/4″ (1950mm) |
| F: Width Between Runways | 29 1/2″ (750mm) |
| F: Runway Length |
61 3/8″ – 77 1/8″ (1560-1960mm) |
| Motor | 1.0HP, 110V/60Hz, Single Phase |
| Gross Weight | 1,788lbs (811kg) |
Details on Freight
Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:
- You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
- Lift Gate delivery service is not available for auto lifts.
- You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
- If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
- You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.
When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
AMGO Locations:
- Temecula, CA
- Kalamazoo, MI
- Manning, SC
- Dallas, TX
*Locations subject to change, please contact us for the most updated information
MRL09_1

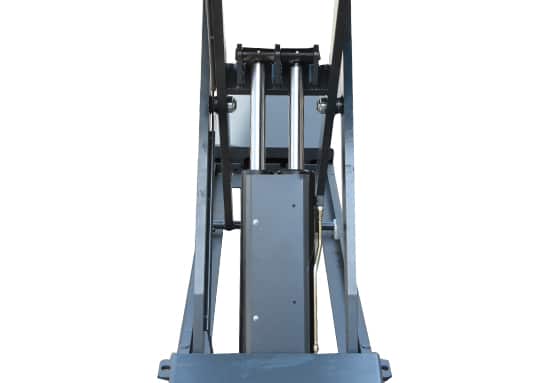

Dual hydraulic synchronization & hydraulic locking system
MRL09_2

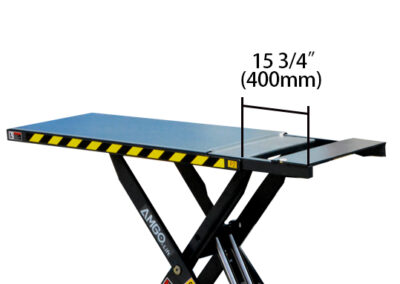

Adjustable lift platform length, applicable to vehicles with different wheelbases
MRL09_3

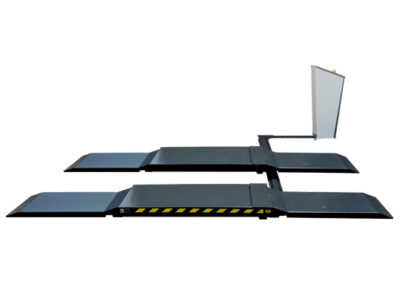

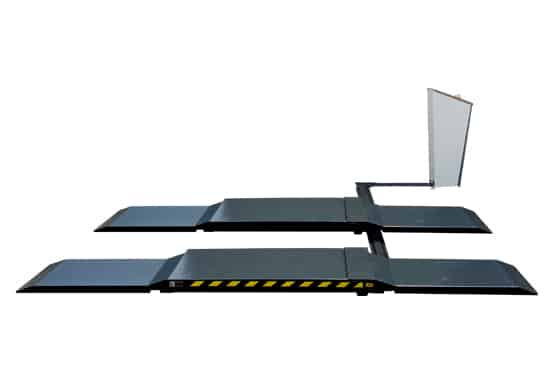

Two-stage drive in ramps, suitable for lifting ultra-low chassis vehicles
MRL09_4
Both 1 1/2″ and 3″ height rubber pads included as standard supply.
