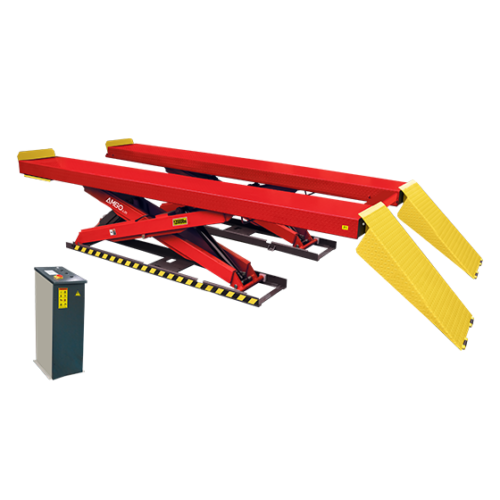

AMGO AX-12

12,000 lb Large Scissor Lift

$9,995

Description

AMGO’s AX-12 has great performance and it is the perfect choice for your commercial service. This heavy-duty scissor lift has four cylinders and each dual cylinder is designed to assure the optimal lifting level on both platforms. The AX-12 is made stronger, more versatile, and easier to use and can lift 12,000lbs.

Features

2 dual synchronous cylinders are used to assure the optimal lifting level on both platforms
Electro-air control system, which operates the self-lock safety mechanism
Heavy-duty design, the X serial scissor lift uses a 5 7/8” x 3” (150 x 75mm) tube to make it stronger and assures the runways remain level during operations
Skid proof diamond platform provides traction for tires to stay put
Optional rolling jacks:
- J6H: 6,000 lbs with manual control
- J6A: 6,000 lbs with pneumatic pump
More choices:
- Optional led lights Kits No. PX010
- Optional extension Kits No. PX001
- Optional airline Kits No. PX004

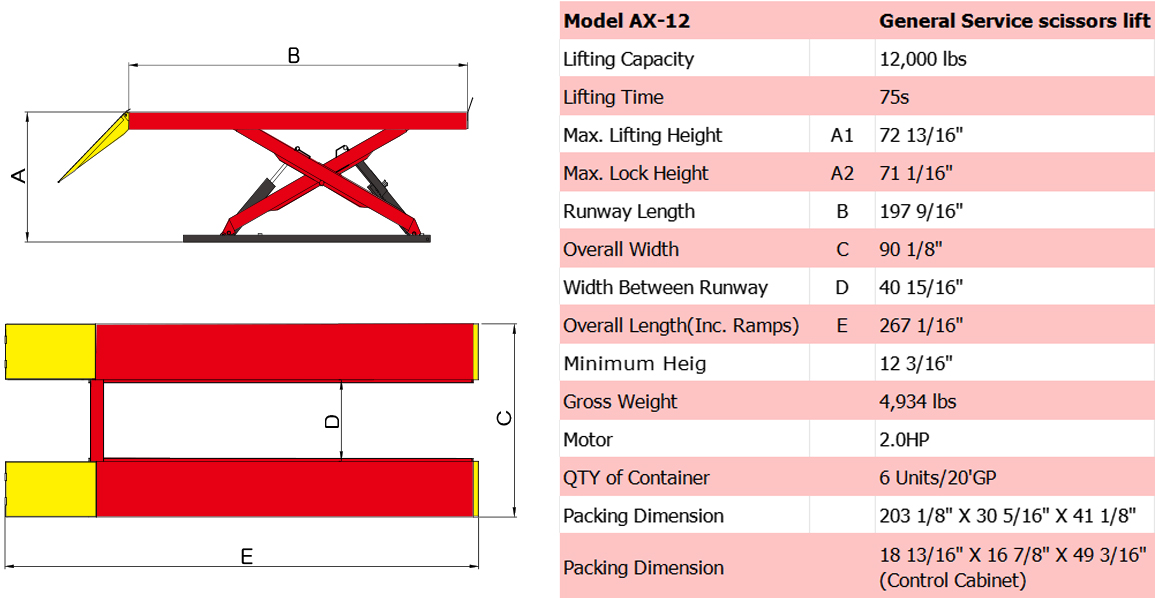

Specifications

Model	AX-12
Style	Non-Alignment
Lifting Capacity	12,000 lbs (5,500 kg)
Lifting Time	75S
A1: Max. Lifting Height	73 5/8″ (1870mm)
A2: Minimum Height	11 3/4″ (300mm)
B: Runway Length	197 1/2″ (5018mm)
C: Overall Width	90 1/8″ (2290mm)
D: Width Between Runway	41″ (1040mm)
E: Overall Length(Inc. Ramps)	267″ (6784mm)
Motor	2.0HP 220V/60Hz Single Phase
Gross Weight	4,925 lbs (2,259 kg)

Details on Freight

Your Auto Lift ships on a LTL common carrier freight company. It is taken to your location on a 48 foot semi truck. Please note the following before making your purchase:

You are responsilbe for unloading the lift from the truck. The truck driver does not unload it for you.
Lift Gate delivery service is not available for auto lifts.
You cannot unload an auto lift from the truck by hand. You must have machinery that can lift the full weight on your auto lift for unloading from the truck. Fork Lift, Bobcat, Tractor, Tow Truck, Back Hoe are all good options.
If you cannot unload from a truck, we can ship to our carrier's nearest freight terminal for you to pickup with a trailer or moving van.
You are responsible for calling the freight company to make a delivery appointment. We don't know your schedule so we can't do this for you.

When your lift ships, we will email you the carrier information and tracking number. Freight shipping is slower than small package shipping and can take 3-14 days depending on your location so please be patient.
