M1M Truck Side Down Draft Paint Booth PBTSDD161764
by M1M
SKU PBTSDD161764
Original price
$69,299.00
-
Original price
$69,299.00
Original price
$69,299.00
$69,299.00
-
$69,299.00
Current price
$69,299.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

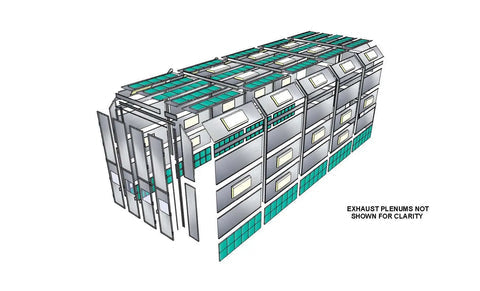

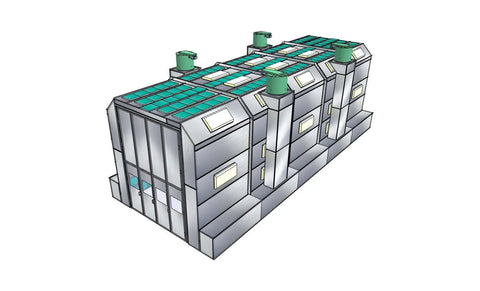

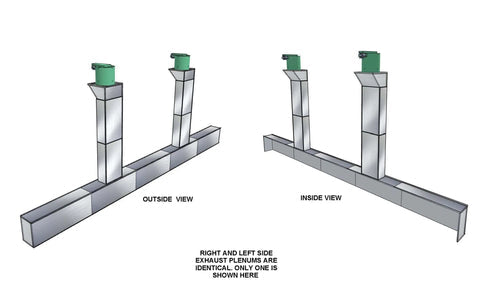

The Side Down Draft (SDD) truck booth delivers optimal airflow for the highest quality finishes, with top-down airflow and multiple chimney exhausts. Can support an air make-up/heating unit with the addition of a solid intake box.
- Engineered with 18-gauge galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Customization available — engineered to your needs
Truck Side Down Draft Paint Booth PBTSDD161764
| Inside Dimensions | 16' W x 16' T x 60' D |
| Outside Dimensions | 20' W x 16'8" T x 64' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 11' W x 15' T |
| Lighting | 22x 4-tube 2'x4' LED fixtures w/ glass |
| Exhaust System | (4) 30" fans; 3HP 3-phase; 48,000 CFM @ 1/4" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
| Included | Manometer, hardware & sealants |
Additional Options (quote required)
- Single phase motor
- 30" dia x 8' exhaust ductwork package
- Powder coated bright white (complete booth)
- Control panel for lights & fan
- High-end VFD control panel (converts 1-phase to 3-phase or 3-to-3-phase)
- Drive-through doors
