M1M Truck Semi Down Draft Paint Booth PBTSD161754
by M1M
SKU PBTSD161754
Original price
$44,099.00
-
Original price
$44,099.00
Original price
$44,099.00
$44,099.00
-
$44,099.00
Current price
$44,099.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description
Designed to accommodate tractor trailers and large equipment for coating — a large, efficient, cost-effective solution for painting heavy-duty vehicles without concrete pits. Pulls filtered air from the ceiling, moves it down the length of the vehicle, and exhausts through the rear.

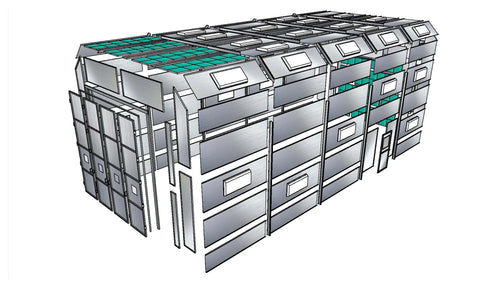

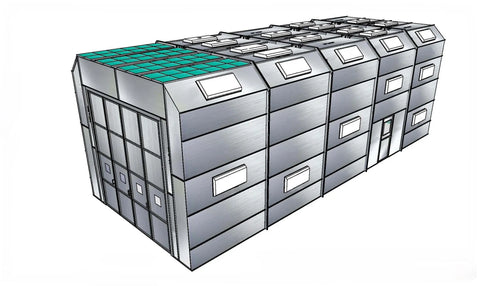

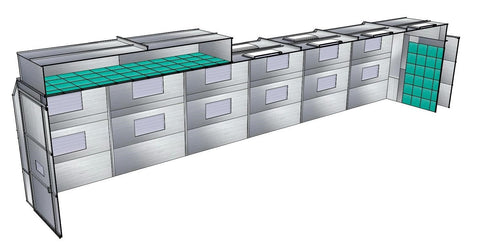

Truck Semi Down Draft Paint Booth PBTSD161754
| Inside Dimensions | 16' W x 17' T x 51' D |
| Outside Dimensions | 16' W x 17'5" T x 54' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 13' W x 15' T |
| Lighting | 40x 4-tube 2'x4' LED fixtures w/ glass |
| Exhaust System | 42" fan; 10HP 3-phase; 30,185 CFM @ 1/4" S.P. (requires bridge plenum) |
| Filtration | 20"x20" intake & 20"x20" exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Single phase motor
- 42" dia x 8' exhaust ductwork package
- Powder coated bright white (complete booth)
- Control panel for lights & fan
- High-end VFD control panel (converts 1-phase to 3-phase or 3-to-3-phase)
- Drive-through doors
