M1M Truck Semi Down Draft Paint Booth PBTSD161744
by M1M
SKU PBTSD161744
Original price
$37,799.00
-
Original price
$37,799.00
Original price
$37,799.00
$37,799.00
-
$37,799.00
Current price
$37,799.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

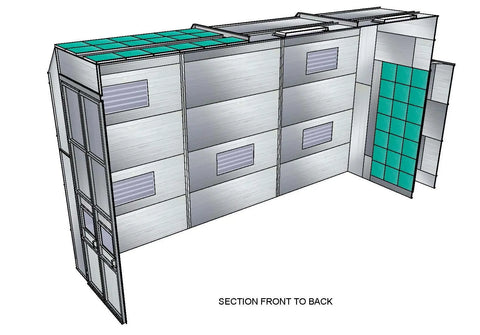

Designed to accommodate tractor trailers and large equipment for coating — a large, efficient, cost-effective solution for painting heavy-duty vehicles without concrete pits. Pulls filtered air from the ceiling, moves it down the length of the vehicle, and exhausts through the rear. Can support an air make-up/heating unit with a solid intake box.
- Engineered with 18-gauge galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Customization available — engineered to your needs

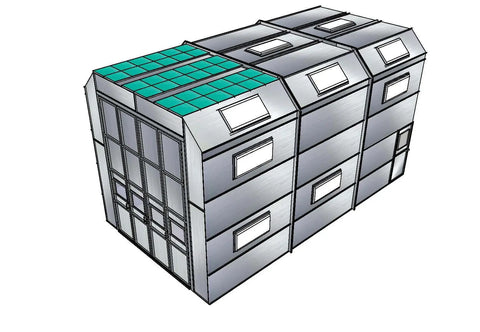

Truck Semi Down Draft Paint Booth PBTSD161744
| Inside Dimensions | 16' W x 17' T x 41' D |
| Outside Dimensions | 16' W x 17'5" T x 44' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 13' W x 15' T |
| Lighting | 40x 4-tube 2'x4' LED fixtures w/ glass |
| Exhaust System | 42" fan; 5HP 3-phase; 30,185 CFM @ 1/4" S.P. (requires bridge plenum) |
| Filtration | 20"x20" intake & 20"x20" exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Single phase motor
- 42" dia x 8' exhaust ductwork package
- Powder coated bright white (complete booth)
- Control panel for lights & fan
- High-end VFD control panel (converts 1-phase to 3-phase or 3-to-3-phase)
- Drive-through doors
