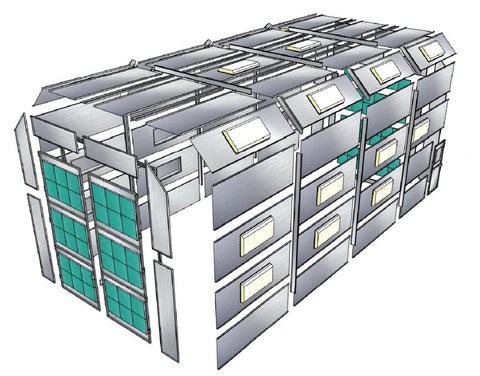

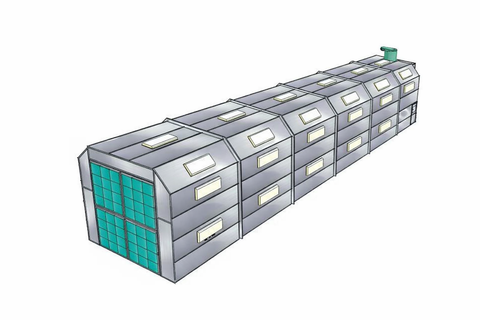

M1M Truck Cross Flow Paint Booth PBTCF161764
by M1M
SKU PBTCF161764
Original price
$43,049.00
-
Original price
$43,049.00
Original price
$43,049.00
$43,049.00
-
$43,049.00
Current price
$43,049.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description
Designed to accommodate large tractor trailers and other large equipment for coating. Available in multiple sizes to fit different vehicle/equipment sizes and shop footprints.
- 18-gauge galvanized steel construction
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Fully customizable dimensions available on request
Truck Cross Flow Paint Booth PBTCF161764
| Inside Dimensions | 16' W x 16' T x 60' L |
| Outside Dimensions | 17' W x 16'8" T x 64' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 11' W x 15' T |
| Lighting | 17x 2'x4' LED fixtures w/ glass |
| Exhaust System | 42" fan; 5HP 3-phase; 25,600 CFM @ 1/4" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
| Fire Suppression | Installer contacts provided in your area |
Additional Options (quote required)
- Single phase motor
- 42" dia x 8' exhaust ductwork package
- Powder coated bright white (complete booth)
- Control panel for lights & fan
- High-end VFD control panel (converts 1-phase to 3-phase or 3-to-3-phase)
- Drive-through doors
