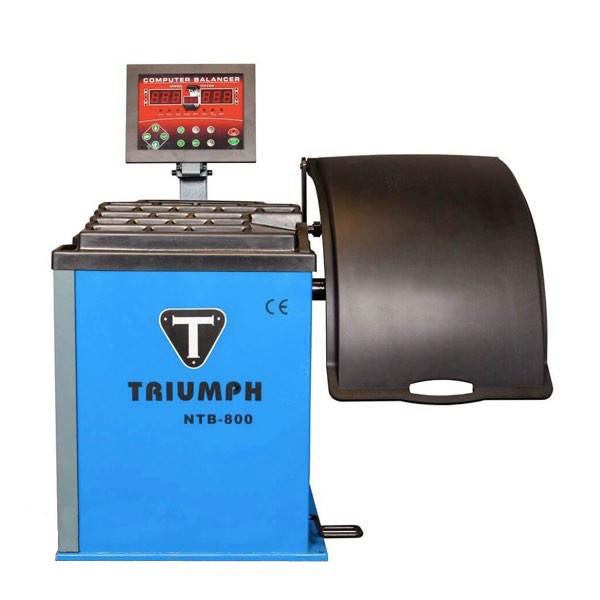

Triumph NTB-800 Wheel Balancer
Authorized Dealer
We are an authorized dealer for all TRIUMPH branded products.
All computer wheel balancers require the user to input rim diameter, rim width, and the distance of the mounted wheel from the wheel balancer. The NTB-580 requires the user to input all three of these measurements. The NTB-800 requires the user to only enter the wheel width. The other two measurements are automatically entered by simply touching the distance ruler to the mounted wheel. This decreases labor time and user error. Time saved is estimated at 25%. The NTB-800 also includes a foot pedal wheel brake to hold the tire in place while you install the weights.
Wheel Size Range 10″ – 28″
Max Tire Diameter 44″
Rim Width 1.5″ – 20″
| Wheel Size | 10-28″ |
| Max Tire Diameter | 44″ |
| Rim Width | 1.5-20″ |
| Max Weight | 150 lbs. |
| Shaft Size | 36 mm |
| Automatic Data Entry | Yes |
| Display | Standard or Metric |
| Accuracy | +/-1 Gram |
| Cycle Time | 6-9 Sec |
| Horse Power | 1/4 Horse |
| Voltage | 110 Volt |
| Assembled Size | 28x48x62″ |
| Shipping Size | 30x39x51″ |
| Shipping Weight | 300 lbs. |
