TCE ALI Certified 10,000 lb 2-Post Overhead Single Release Direct Drive Car Lift, 3-Year Warranty, QJY245DX
by TCE
SKU QJY245DX
Original price
$4,699.00
-
Original price
$4,699.00
Original price
$4,699.00
$4,699.00
-
$4,699.00
Current price
$4,699.00

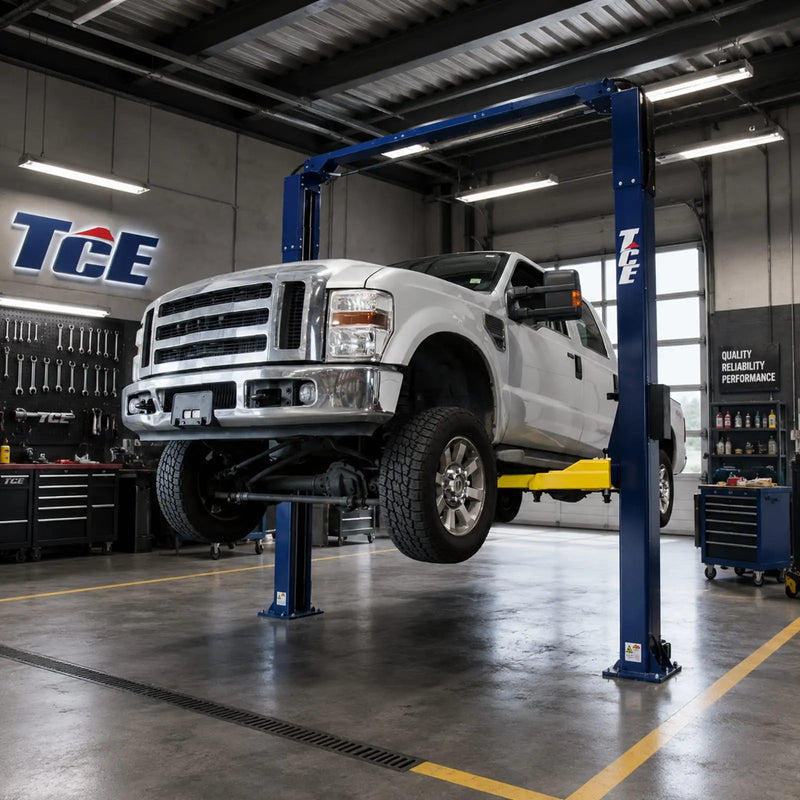

The TCE Professional Series 10,000 lb two-post lift is built for commercial repair shops and serious enthusiasts who want industrial-grade quality without compromise. It is ALI Gold Label Certified for full compliance with rigorous safety and insurance standards, and its direct-drive design pairs with Triple Telescoping Arms for both symmetric and asymmetric positioning, plus an ultra-low lift pad height that accommodates everything from low-profile performance cars to heavy-duty pickup trucks.

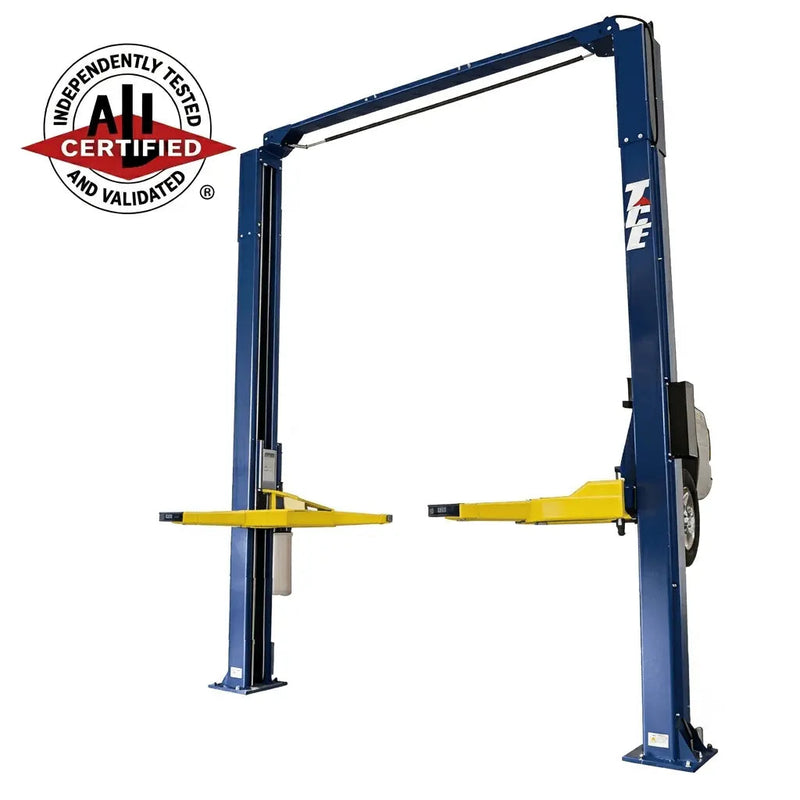

- ALI Gold Label Certified to meet strict safety and commercial insurance requirements
- Industry-leading 3-year parts warranty
- Triple Telescoping Arms with three sets of high-extension truck adapters for broad vehicle compatibility
- Three adjustable drive-through width settings: 88 1/8", 94 1/16", and 100"

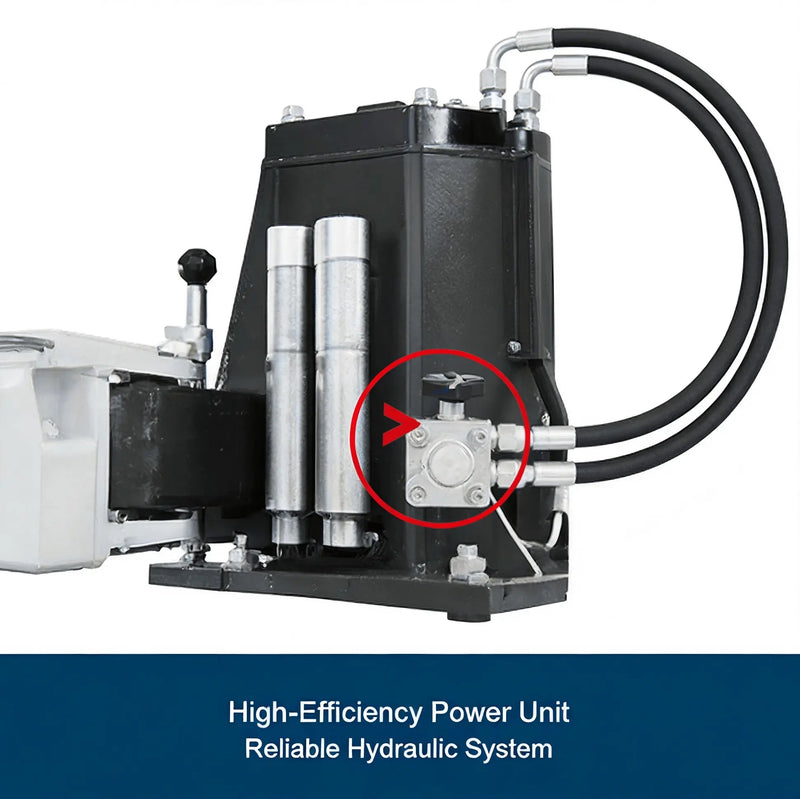

- Dual direct-drive hydraulic cylinders in an all-robot-welded, powder-coated frame

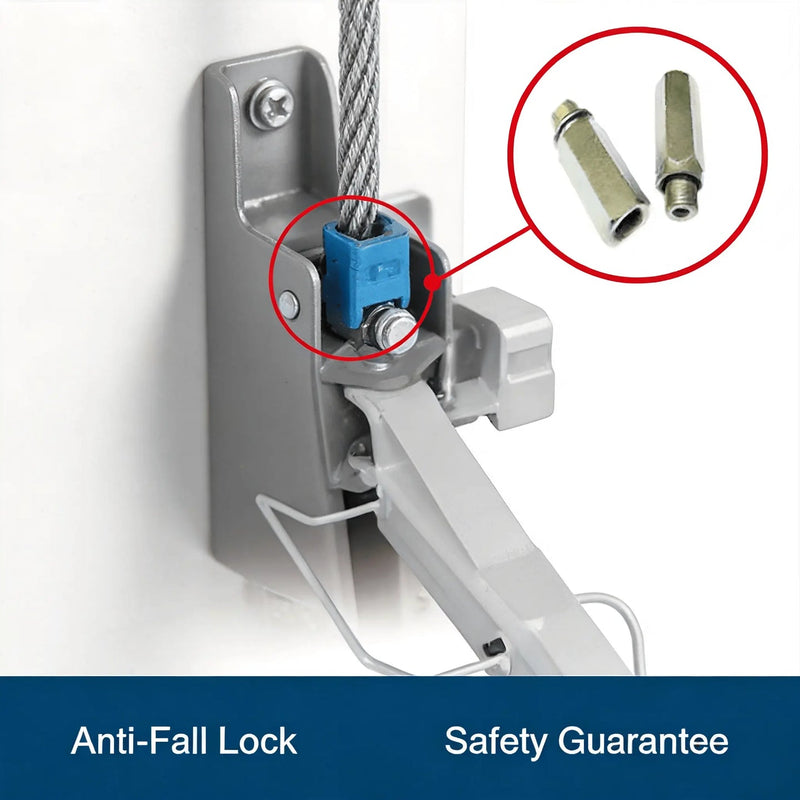

- 57" oversized carriage with single-point manual lock release for simple, reliable operation

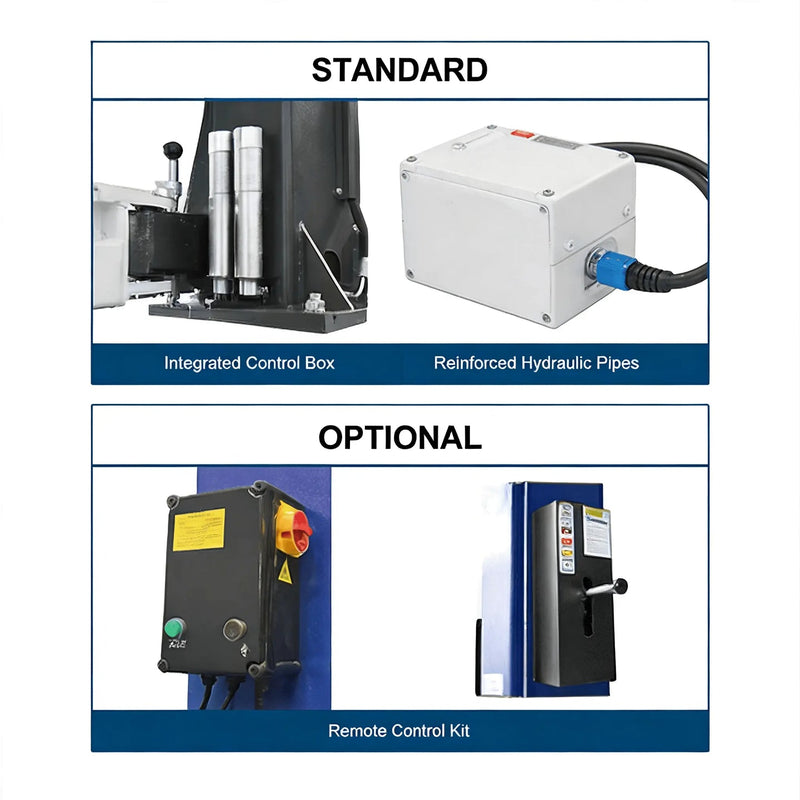

- Optional add-ons available: adjustable screw pads, U-shape frame cradle pads, 90-degree power unit mounting brackets
| Model | QJY245DX |
|---|---|
| Certification | ALI Certified |
| Lock Release | Single Point Release |
| Warranty | 3 Year |
| Lifting Capacity | 10,000 lbs |

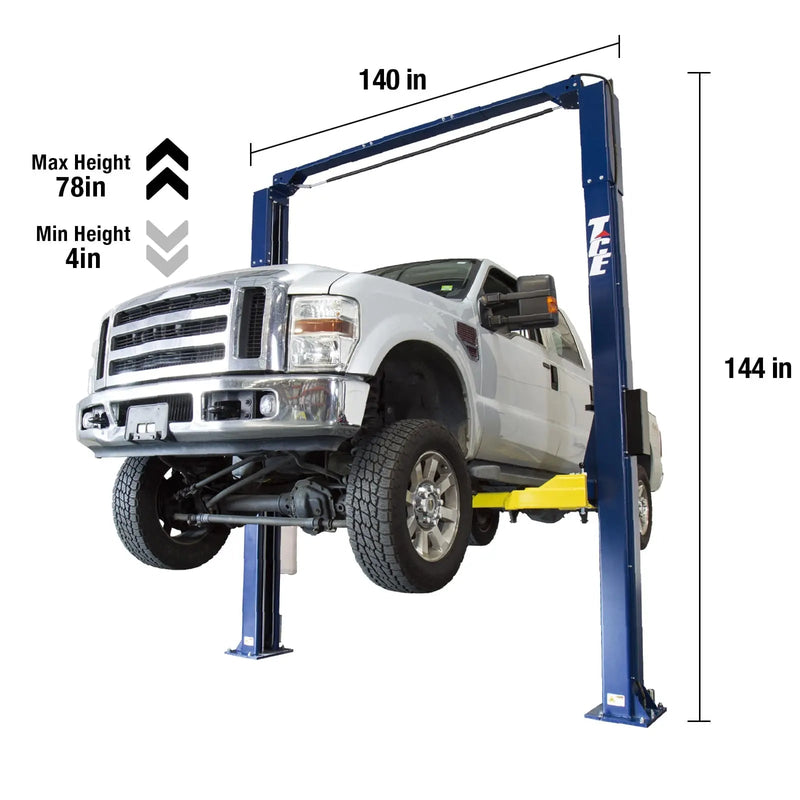

| Overall Height | 144 in |
| Overall Width | 140 in |
| Max Lift Height (with Truck Adapters) | 78 in |
| Max Lift Height (without Truck Adapters) | 69 in |
| Min Height of Adjustable Pads from Ground | 4 in |
| Drive-Through Width (Carriage to Carriage) | 88 in |
| Column to Column Width | 97 in |
| Driving Mode | Direct Drive |
| Motor | 220V 3HP |
| Time to Full Rise | 50 sec |
| Front Arms | 3 Stages |
| Back Arms | 3 Stages |
| Shipping Weight | 2,000 lbs |
| Concrete Requirement | 6" thick at 3500 psi, reinforced with fiberglass or steel (4" thick for vehicles 9,000 lbs and below) |
