M1M Side Down Draft Paint Booth PBSDD18926FT
by M1M
SKU PBSDD18926FT
Original price
$19,656.00
-
Original price
$19,656.00
Original price
$19,656.00
$19,656.00
-
$19,656.00
Current price
$19,656.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

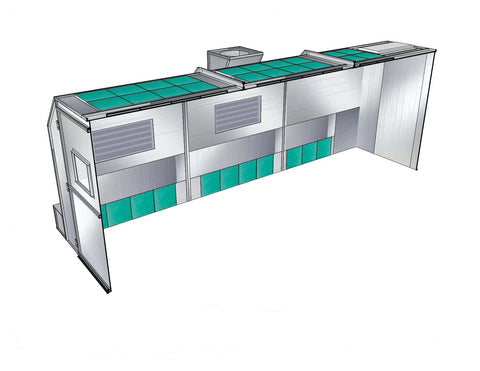

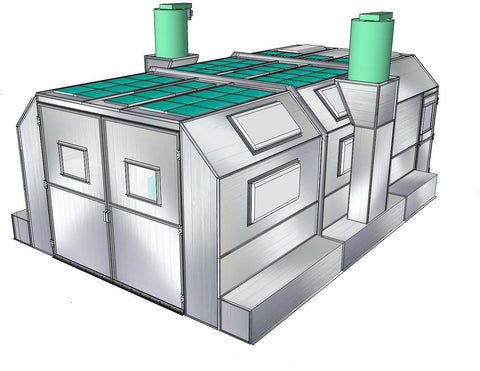

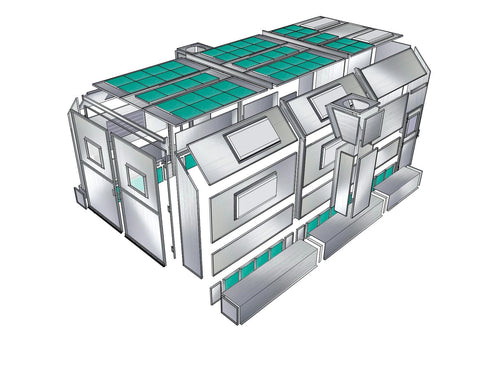

The Side Down Draft (SDD) booth delivers optimal airflow for the highest quality finishes. It's a higher-end booth design with top-down airflow and dual chimney exhaust. Custom-built in Reidsville, NC.
Side Down Draft Paint Booth Filter Top
| Model Number | PBSDD18926FT (Filter Top) |
| Inside Dimensions | 14' W x 9'4" T x 25'9" L |

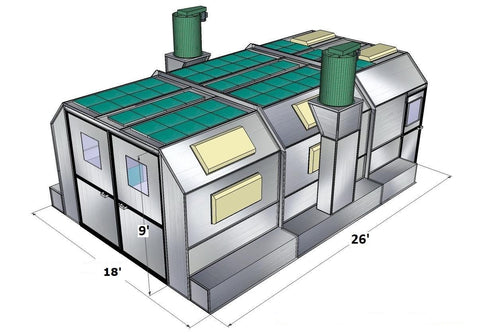

| Outside Dimensions | 18' W x 9'10" T x 26' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 9' T x 10' W |
| Man Door Access | 1 door w/ window, 7' T x 3' W |
| Lighting | 10x 4-tube 2'x4' LED fixtures w/ glass |
| Exhaust System | (2) 24" fans; 2HP 3-phase; 12,220 CFM @ 1/4" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Single phase motor
- 24" dia x 8' exhaust ductwork package
- Powder coated bright white (complete booth)
- Control panel for lights & fan
- High-end VFD control panel (UL listed)
- Drive-through doors
