M1M Semi Down Paint Booth w/ Air Intake Box PBSD141129B
by M1M
SKU PBSD141129B
Original price
$15,834.00
-
Original price
$15,834.00
Original price
$15,834.00
$15,834.00
-
$15,834.00
Current price
$15,834.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

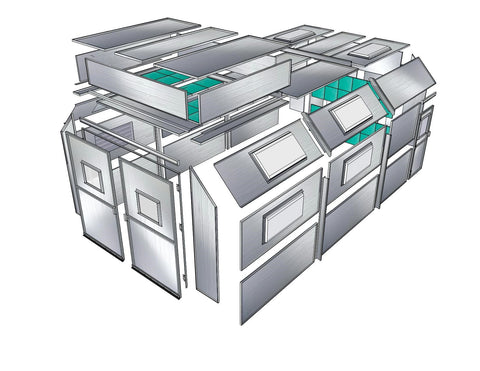

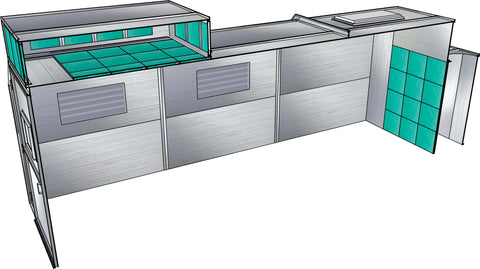

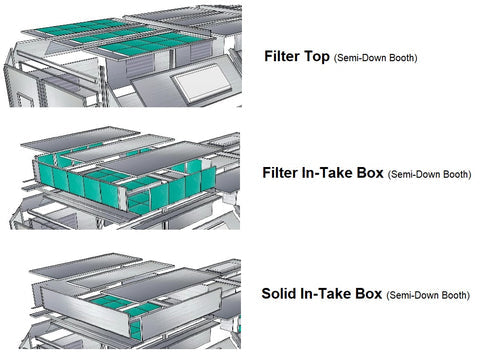

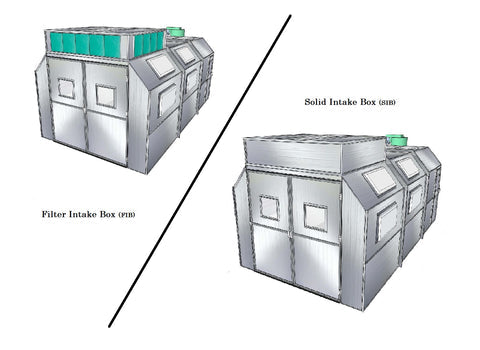

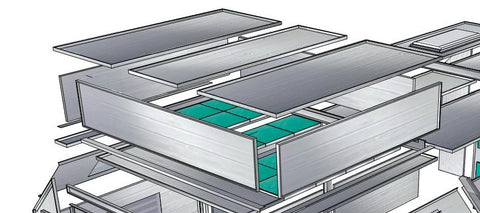

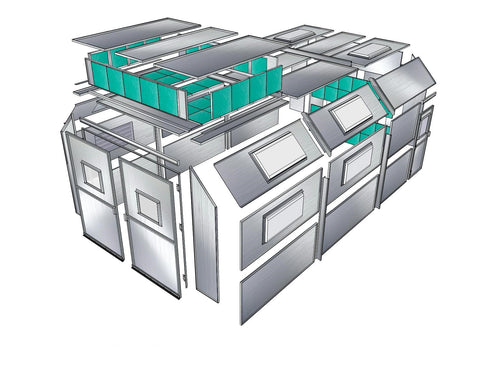

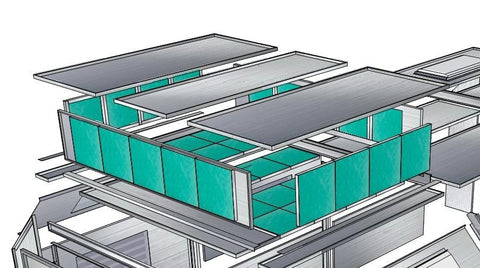

Provides front-to-back horizontal airflow similar to cross flow, with intake filter grids at the ceiling/front. This model's intake box can be configured 'filtered' or solid, ready for an air make-up/heating unit. Custom-built in Reidsville, NC.
- 18-gauge galvanized steel construction
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Fully customizable dimensions available on request
Semi-Down Draft Paint Booth w/ Air Intake Box
| Model Number | PBSD141129B |

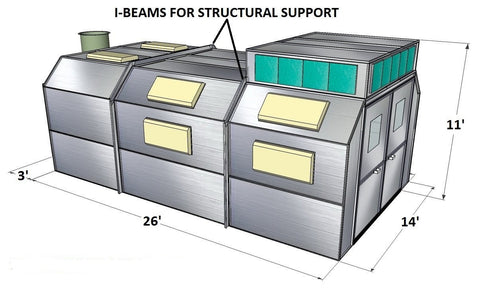

| Inside Dimensions | 14' W x 9'4" T x 25'9" L |
| Outside Dimensions | 15' W x 11'3" T x 29' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 9' T x 10' W |
| Man Door Access | 1 door w/ window, 7' T x 3' W |
| Lighting | 10x 2'x4' LED fixtures w/ glass |
| Exhaust System | 30" dia tubeaxial fan; 3HP 3-phase; 12,220 CFM @ 1/4" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Single phase motor
- 30" dia x 8' exhaust ductwork package
- Powder coated bright white (all panels)
- Drive-through doors
- High-end control panel (UL listed)
- High-end VFD control panel (UL listed)
