M1M Semi Down Draft Paint Booth PBSD14929
by M1M
SKU PBSD14929FT
Original price
$15,288.00
-
Original price
$15,288.00
Original price
$15,288.00
$15,288.00
-
$15,288.00
Current price
$15,288.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

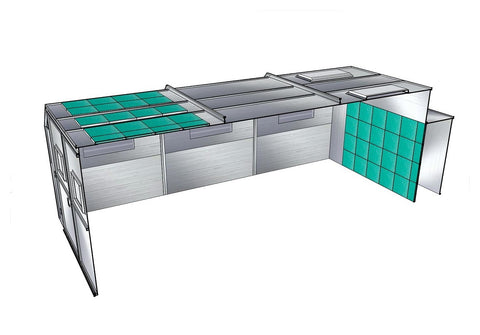

Provides front-to-back horizontal airflow similar to cross flow, but the intake filter grids sit at the ceiling/front of the booth rather than in the doors. This layout makes it easy to later add an air make-up or heating unit by ducting into a solid intake box above the ceiling filter grids. Custom-built in Reidsville, NC.
- 18-gauge G-90 galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Standard and custom sizes available

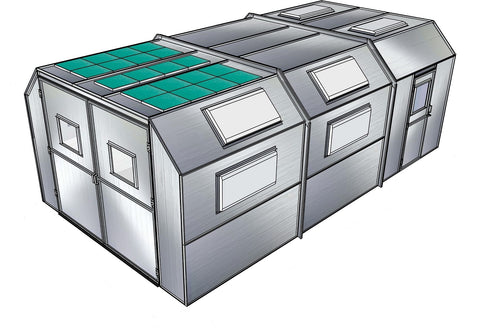

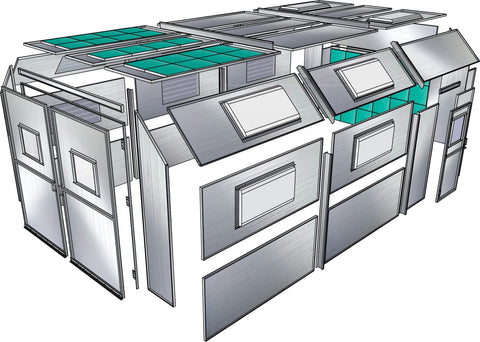

Semi-Down Draft Paint Booth w/ Filter Top
| Model Number | PBSD14929FT |
| Inside Dimensions | 14' W x 9'4" T x 25'9" L |

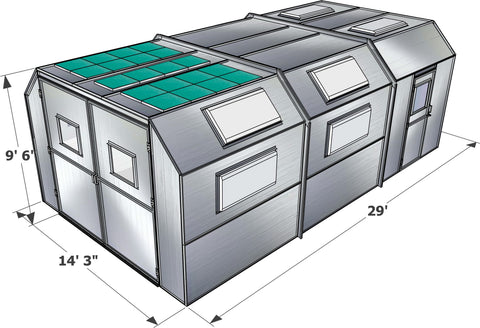

| Outside Dimensions | 14'6" W x 9'10" T x 29' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 9' T x 10' W |
| Man Door Access | 1 door w/ window, 7' T x 3' W |
| Lighting | Ten 2'x4' LED fixtures w/ glass |
| Exhaust System | 30" dia tubeaxial fan; 3HP 3-phase; 12,800 CFM @ 1/2" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Single phase motor — $250
- 30" dia x 8' exhaust ductwork package — $1,500
- Powder coated bright white (complete booth) — $3,200
- Control panel for lights & fan — $1,000
- VFD control panel — $1,550
- Fire suppression system (local procurement)
