M1M Semi Down Draft Paint Booth w/ Heat PBSD14927-HSD
by M1M
SKU PBSD14927-H
Original price
$41,685.00
-
Original price
$41,685.00
Original price
$41,685.00
$41,685.00
-
$41,685.00
Current price
$41,685.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

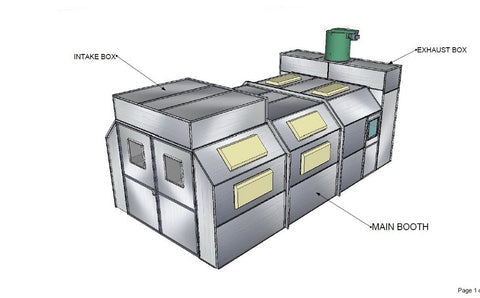

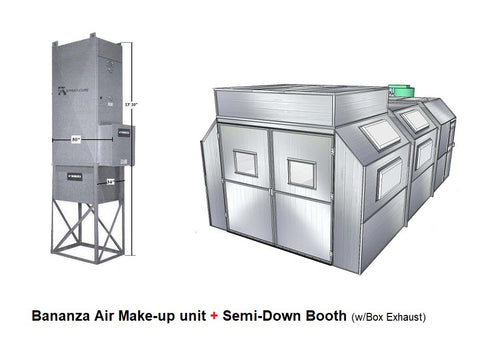

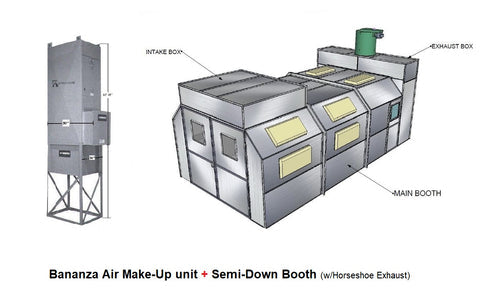

A combination of the M1M semi-down booth with a solid intake box and a Bananza Air Make-Up (AMU) heating unit. Custom-built in Reidsville, NC. For faster turnaround, M1M also offers prefabricated booths from its sister site, ready for quicker shipment.
- American made, built in Reidsville, NC
- 18-gauge G-90 galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Standard and custom size booths
Semi-Down Draft Paint Booth w/ Heat
| Model Number | PBSD14927-H |
| Inside Dimensions | 14' W x 9' T x 26'9" L |
| Outside Dimensions | 14'6" W x 11' T x 27' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Door Opening | 9' T x 10' W |
| Man Door Access | 1 door w/ window, 7' T x 3' W |
| Lighting | Ten 2'x4' LED fixtures w/ glass |
| Exhaust System | 30" dia tubeaxial fan; 3HP 3-phase; 12,220 CFM @ 1/2" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
| Heated Air Make-Up Unit (B1000) | 11,000 CFM / 7.5HP / natural gas / 1,307K BTUH |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Single phase motor
- 30" exhaust ductwork package
- Control panel for fan/motor/lights
- VFD control panel
- Powder coated bright white (complete booth)
