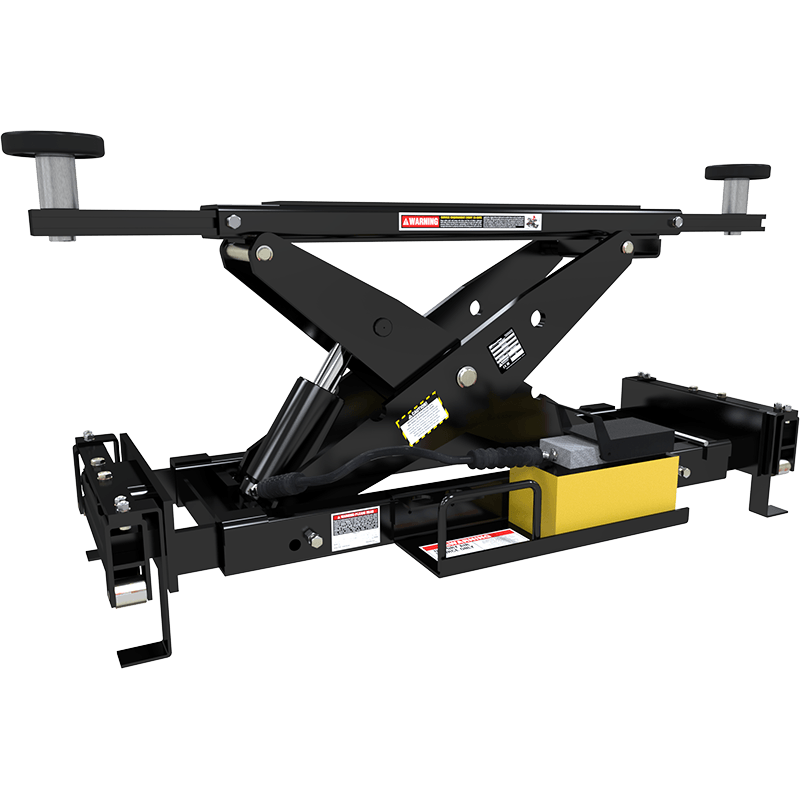

BendPak RJ9W 4-Post Rolling Bridge Jack – 9,000-lb. Capacity
by BendPak
SKU 5175252
Save $240.00
Original price
$4,295.00
Original price
$4,295.00
-
Original price
$4,295.00
Original price
$4,295.00
Current price
$4,055.00
$4,055.00
-
$4,055.00
Current price
$4,055.00

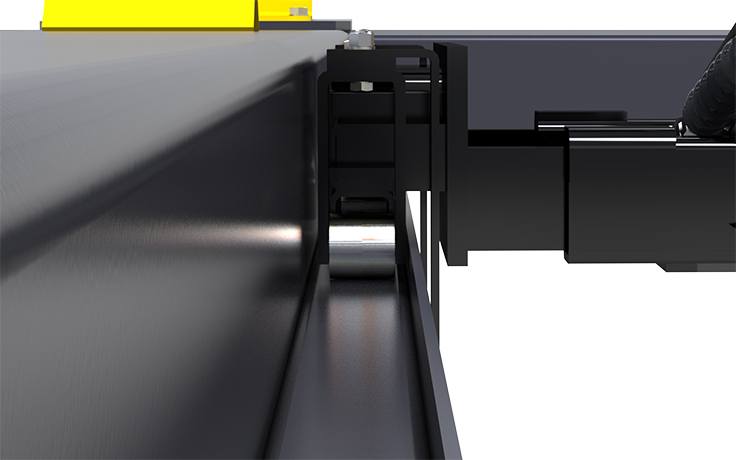

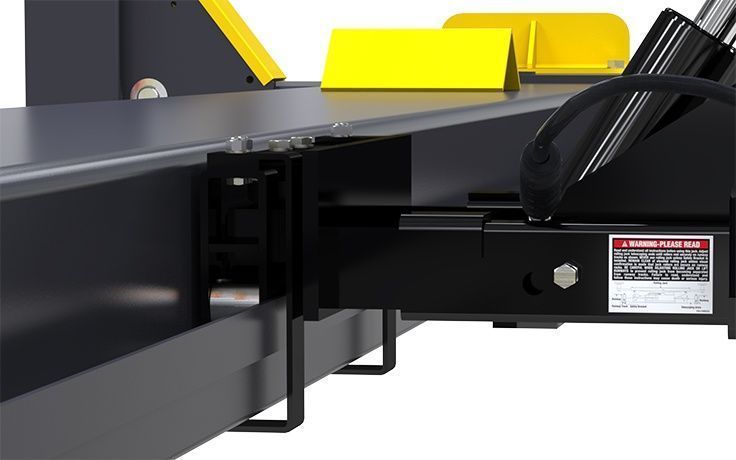

The BendPak RJ9W is a 9,000 lb. capacity rolling bridge jack intended for the HDS-18E four-post lift (and HDS-27 series), suited to heavier trucks and SUVs or vehicles with an off-center weight distribution. It uses easy-roll wheels to travel inside the runway channel, a rubber contact pad at the vehicle's lift points, and stackable adapters for extra reach. Its air/hydraulic power unit is foot-pedal operated with three lock positions for adjustable working height.
Note: Rolling bridge jacks are built for specific BendPak lift models. Compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Specification | Value |
|---|---|
| Lifting Capacity | 9,000 lbs. (4,082 kg) |
| Suitable Lift Model(s) | HDS-18E, HDS-27 Series |
| Min. Drive-Over Height (Pad Only) | 5.25" (133 mm) |
| Min. Drive-Over Height (Pad + 2.75" Adapter) | 8" (203 mm) |
| Min. Drive-Over Height (Pad + 5.5" Adapter) | 10.75" (273 mm) |
| Max. Lifting Height (Pad Only) | 16.25" (413 mm) |
| Max. Lifting Height (Pad + 2.75" Adapter) | 19" (483 mm) |
| Max. Lifting Height (Pad + 5.5" Adapter) | 21.75" (552 mm) |
| Support Base Width | 45" (1,143 mm) - 50" (1,270 mm) |
| Max. Arm Reach | 56" (1,422 mm) |
| Min. Arm Reach | 42" (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 5,020 PSI |
| Power Requirement | None |
| Shipping Weight | 478 lbs. (217 kg) |
| Shipping Dimensions | 47" x 25" x 15" (1,206 x 635 x 381 mm) |
