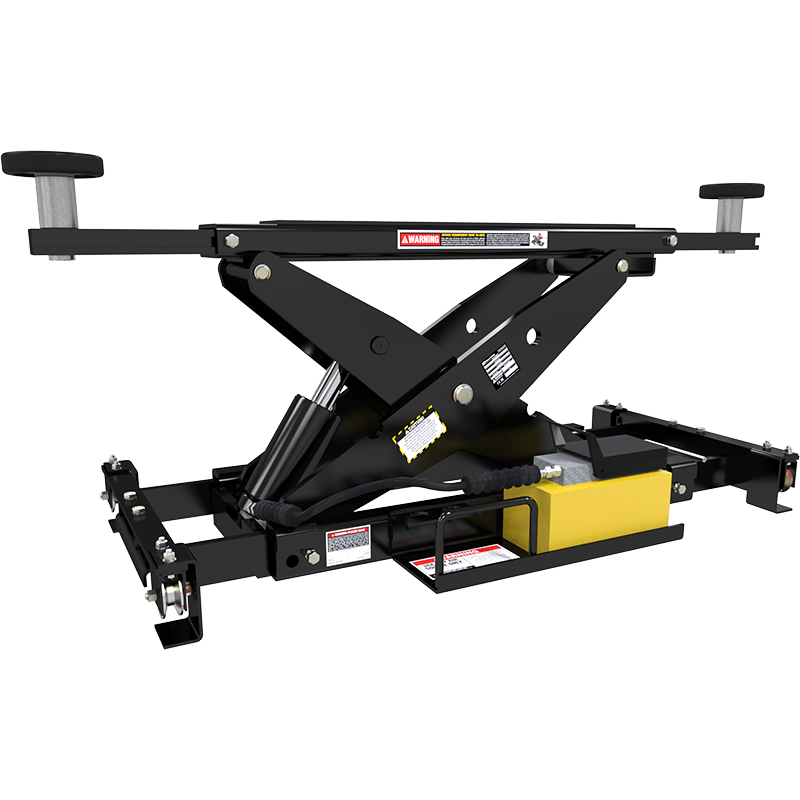

BendPak RJ7W 4-Post Rolling Bridge Jack – 7,000-lb. Capacity

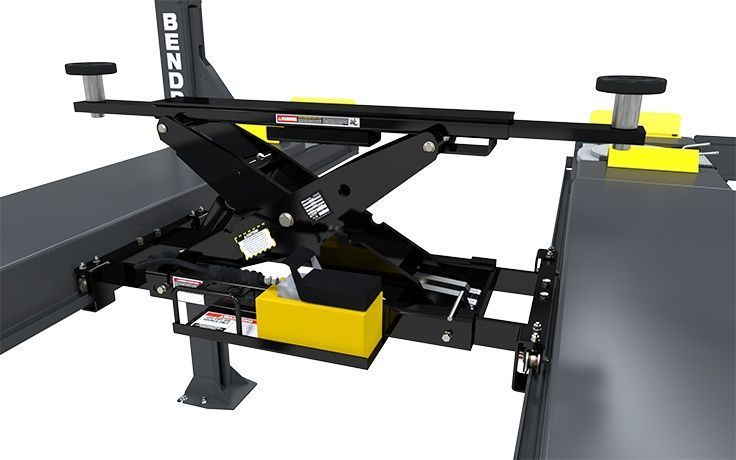

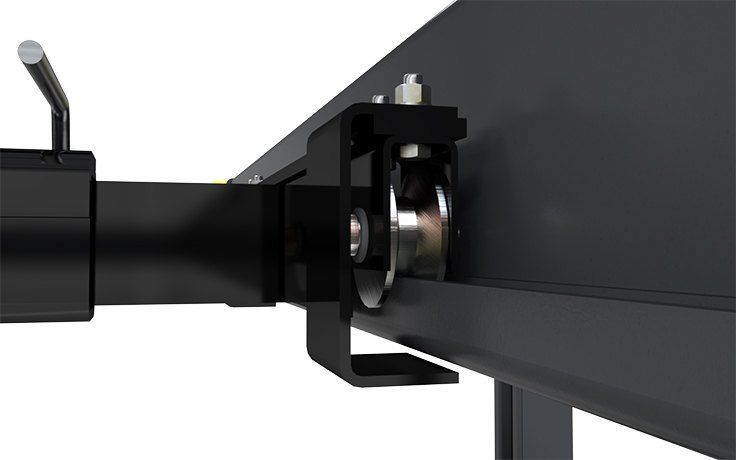

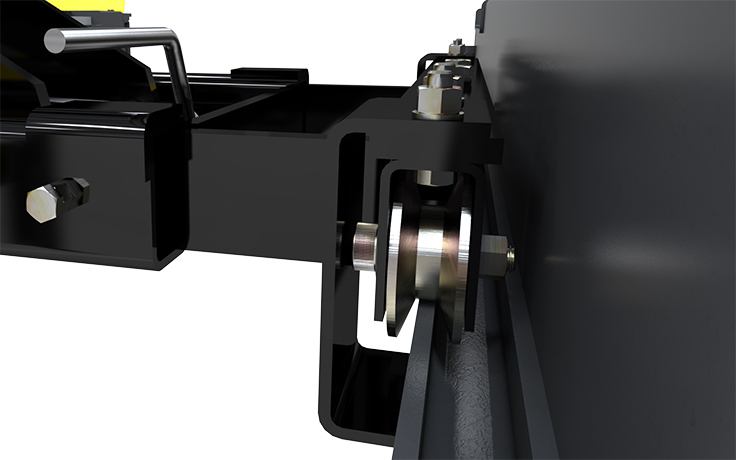

The BendPak RJ7W is a 7,000 lb. capacity rolling bridge jack built for the HDS-14 series four-post lift (as well as HD-14 series and HDSO14P models), giving these lifts full wheel-service capability. It rides on easy-roll wheels in the runway channel, uses a rubber contact pad to engage the vehicle's frame lift points, and includes stackable adapters to reach higher-clearance vehicles without losing rise. The attached air/hydraulic power unit is controlled with a foot pedal and offers three lock positions for the technician's preferred working height.
Note: Rolling bridge jacks are built for specific BendPak lift models. Compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Specification | Value |
|---|---|
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| Suitable Lift Model(s) | HDS-14 Series, HDSO14P, HD-14 Series |
| Min. Drive-Over Height (Pad Only) | 4" (102 mm) |
| Min. Drive-Over Height (Pad + 2.75" Adapter) | 6.75" (171 mm) |
| Min. Drive-Over Height (Pad + 5.5" Adapter) | 9.5" (241 mm) |
| Max. Lifting Height (Pad Only) | 14.75" (375 mm) |
| Max. Lifting Height (Pad + 2.75" Adapter) | 17.5" (445 mm) |
| Max. Lifting Height (Pad + 5.5" Adapter) | 20.25" (514 mm) |
| Support Base Width | 36.25" (921 mm) - 46.5" (1,181 mm) |
| Max. Arm Reach | 56" (1,422 mm) |
| Min. Arm Reach | 42" (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 4,550 PSI |
| Power Requirement | None |
| Shipping Weight | 440 lbs. (200 kg) |
| Shipping Dimensions | 42" x 25" x 15" (1,066 x 635 x 381 mm) |
