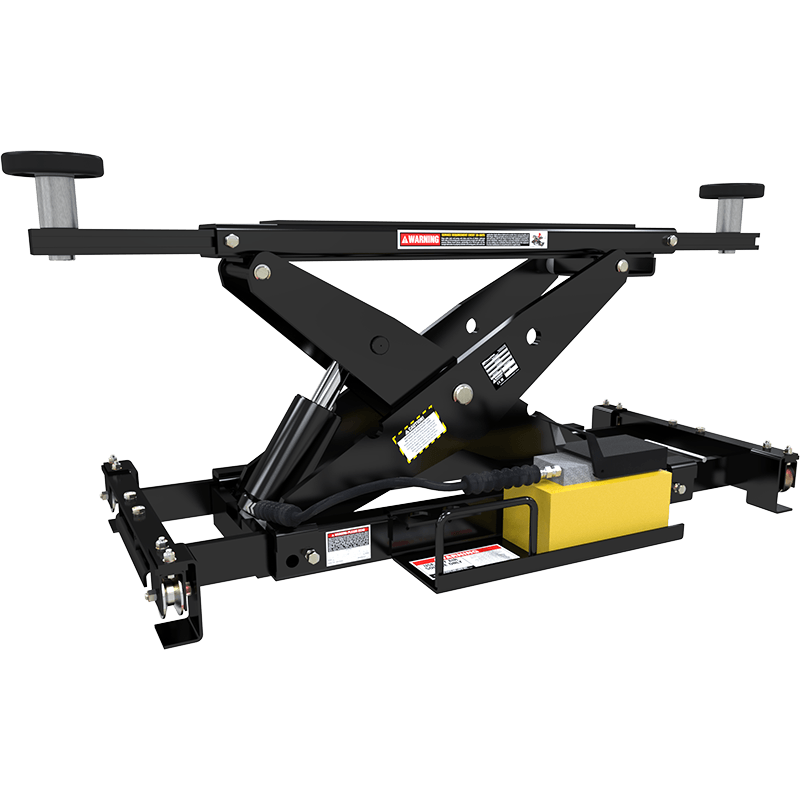

BendPak RJ6W 4-Post Rolling Bridge Jack – 6,000-lb. Capacity

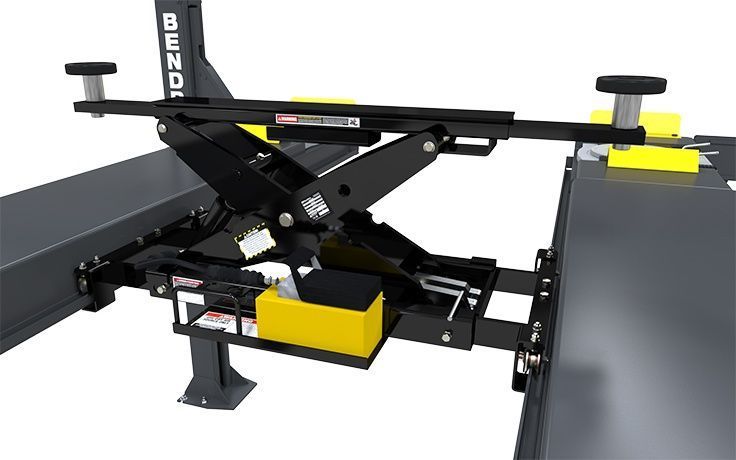

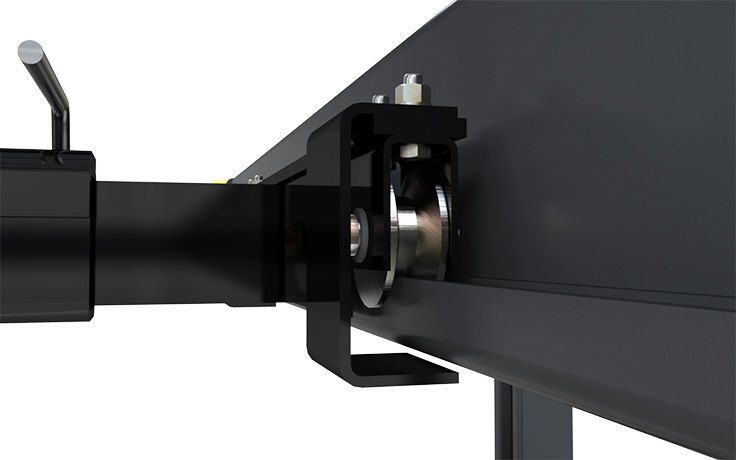

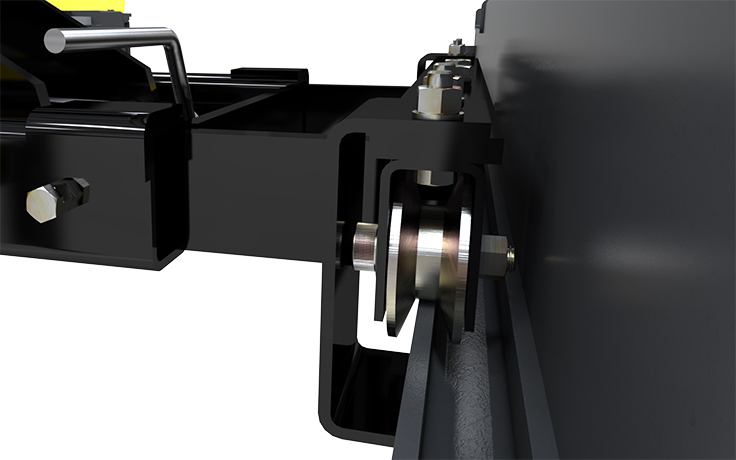

The BendPak RJ6W is a 6,000 lb. capacity rolling bridge jack designed for use with compatible scissor lifts and four-post lifts, most notably the XR-12000 series. Easy-roll wheels let it glide along the lift runway, a rubber contact pad protects the vehicle's frame at the lift points, and stackable adapters extend reach for taller undercarriages. An air/hydraulic power unit with a foot pedal raises the jack to any of three lock positions. Each jack is built to comfortably exceed its rated capacity, though a single jack should never be loaded beyond its listed limit.
Note: Rolling bridge jacks are built for specific BendPak lift models. Compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Specification | Value |
|---|---|
| Lifting Capacity | 6,000 lbs. (2,721 kg) |
| Suitable Lift Model(s) | XR-12000 Series |
| Min. Drive-Over Height (Pad Only) | 1.25" (32 mm) |
| Min. Drive-Over Height (Pad + 2.75" Adapter) | 4" (102 mm) |
| Min. Drive-Over Height (Pad + 5.5" Adapter) | 6.75" (171 mm) |
| Max. Lifting Height (Pad Only) | 12" (305 mm) |
| Max. Lifting Height (Pad + 2.75" Adapter) | 14.75" (375 mm) |
| Max. Lifting Height (Pad + 5.5" Adapter) | 17.5" (445 mm) |
| Support Base Width | 36.25" (921 mm) - 47.25" (1,200 mm) |
| Max. Arm Reach | 56" (1,422 mm) |
| Min. Arm Reach | 42" (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 3,370 PSI |
| Power Requirement | None |
| Shipping Weight | 436 lbs. (193 kg) |
| Shipping Dimensions | 42" x 24" x 14" (1,066 x 609 x 355 mm) |
