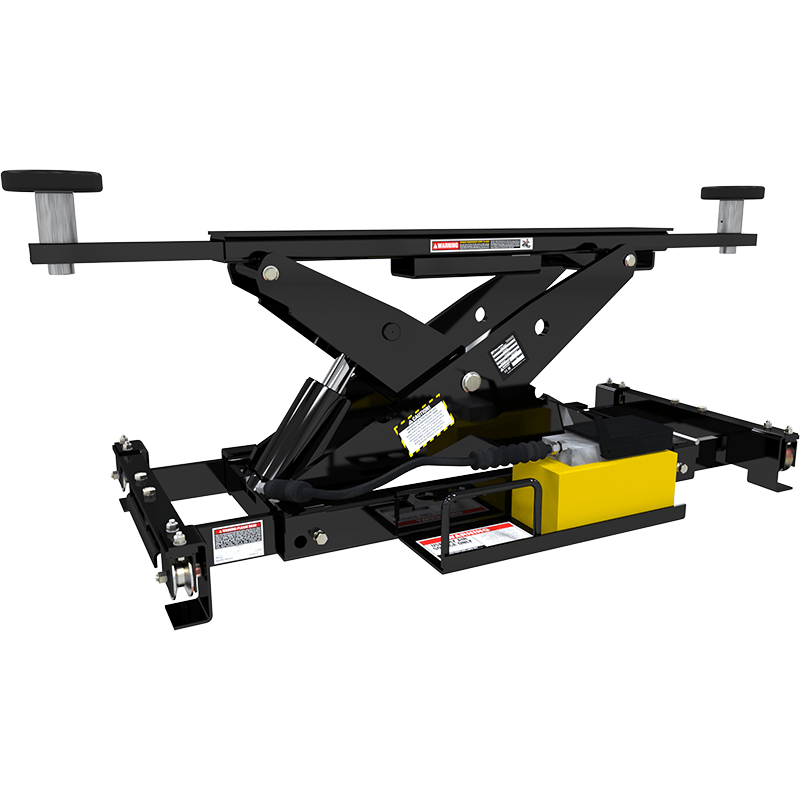

BendPak RJ45W 4-Post Rolling Bridge Jack – 4,500-lb. Capacity

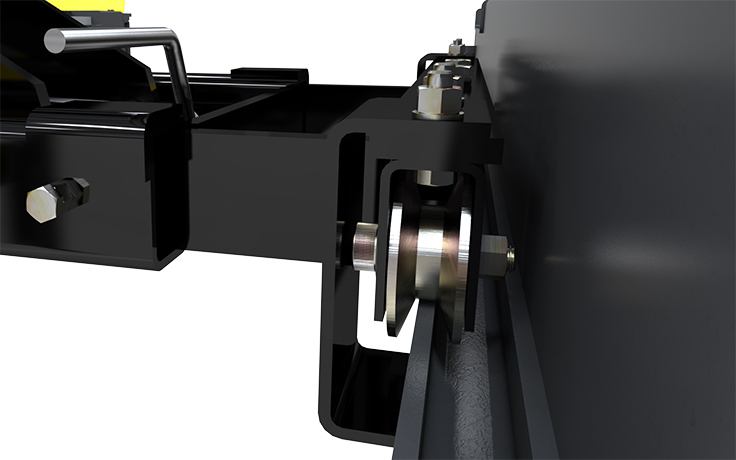

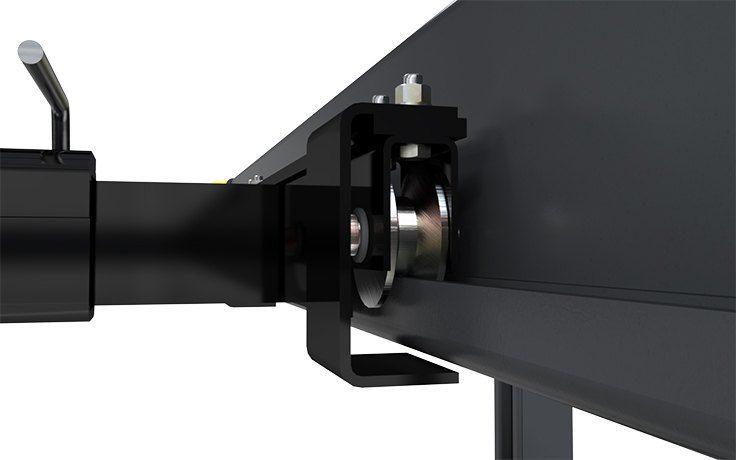

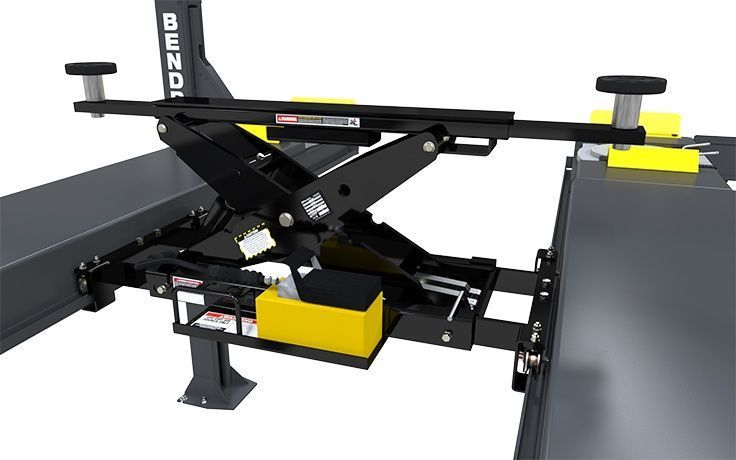

The BendPak RJ45W is a 4,500 lb. capacity rolling bridge jack that adds full wheel-service capability to a compatible four-post lift. It travels on easy-roll wheels that ride in the lift's runway channel, and it raises on a foot-pedal-controlled air/hydraulic power unit. A rubber contact pad cushions the vehicle frame, while stackable adapters add extra reach for taller vehicles, and three lock positions let a technician choose the working height. The RJ45W pairs with BendPak HD-7, HD-9, and GP-9 series four-post lifts; two jacks working together can raise an entire vehicle off the runways for tire, wheel, and brake service.
Compared with the low-profile RJ45LP, the RJ45W has a slightly taller minimum drive-over height and a narrower maximum arm reach.
Note: Rolling bridge jacks are built for specific BendPak lift models. Compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Specification | Value |
|---|---|
| Lifting Capacity | 4,500 lbs. (2,041 kg) |
| Suitable Lift Model(s) | HD-7 Series, HD-9 Series, GP-9 Series |
| Min. Drive-Over Height (Pad Only) | 4.5" (114 mm) |
| Min. Drive-Over Height (Pad + 2.75" Adapter) | 7.25" (184 mm) |
| Min. Drive-Over Height (Pad + 5.5" Adapter) | 10" (254 mm) |
| Max. Lifting Height (Pad Only) | 15.5" (394 mm) |
| Max. Lifting Height (Pad + 2.75" Adapter) | 18.25" (464 mm) |
| Max. Lifting Height (Pad + 5.5" Adapter) | 21" (533 mm) |
| Support Base Width | 35.5" (902 mm) - 46.5" (1,181 mm) |
| Max. Arm Reach | 57" (1,448 mm) |
| Min. Arm Reach | 42" (1,067 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 2,490 PSI |
| Power Requirement | None |
| Shipping Weight | 378 lbs. (171 kg) |
| Shipping Dimensions | 42" x 24" x 12" (1,066 x 609 x 304 mm) |
