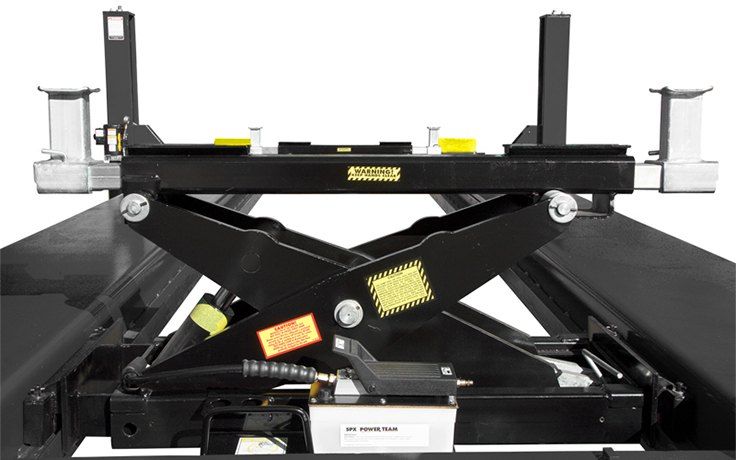

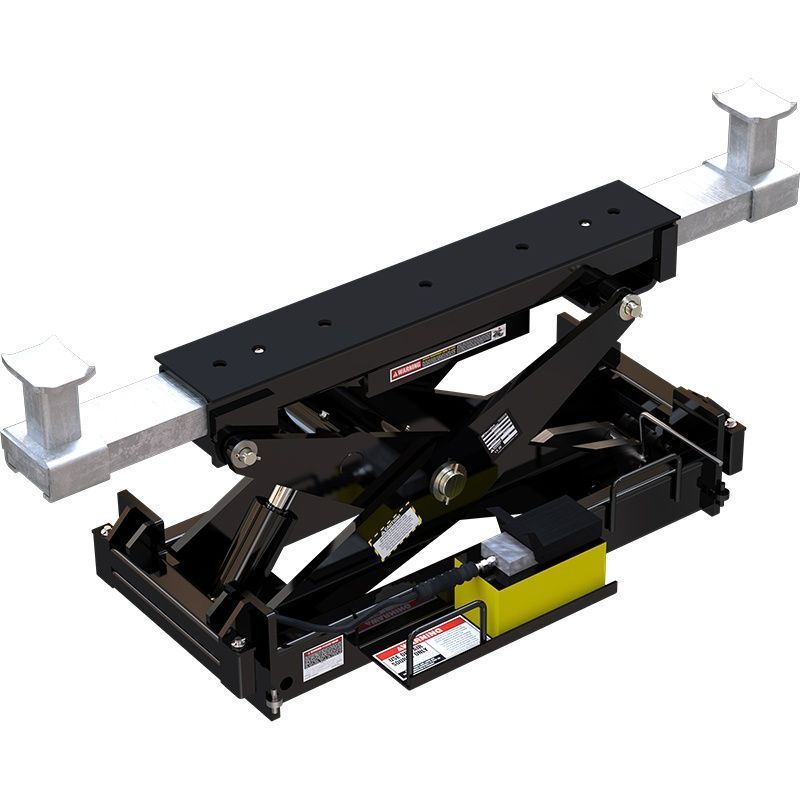

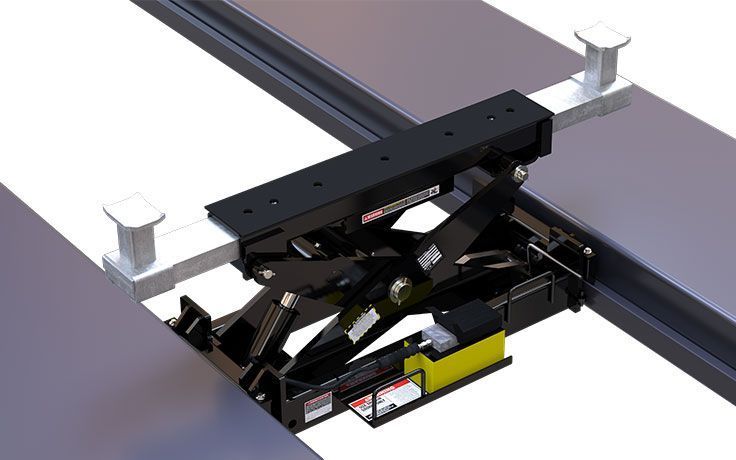

BendPak RBJ25000 4-Post Rolling Bridge Jack – 25,000-lb. Capacity

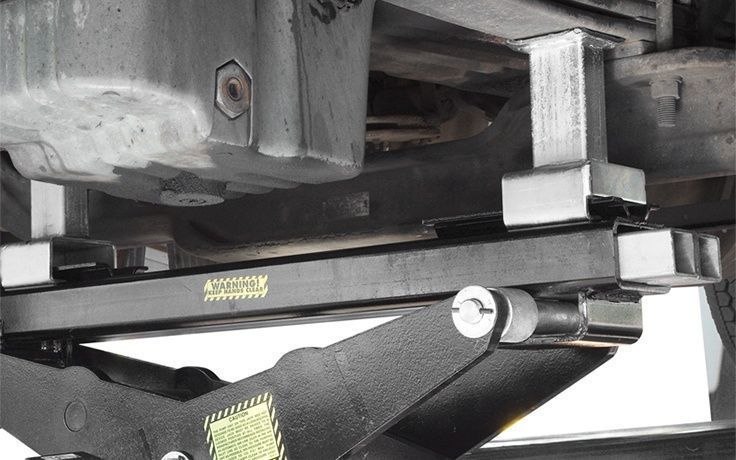

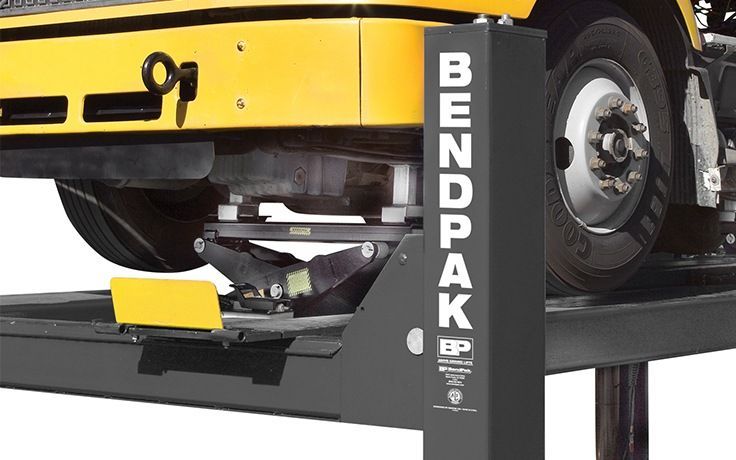

The BendPak RBJ25000 is the highest-capacity rolling bridge jack in the lineup, rated for 25,000 lbs. and designed for the HDS-40 series four-post lift (not compatible with the HDS-27 model). It's intended for the heaviest commercial trucks and equipment, where two jacks together can support up to 50,000 lbs. and comfortably handle vehicles with an offset center of gravity. Four steel contact pads support the axle and frame lift points, and the jack raises via an air/hydraulic power unit with a foot pedal and three lock positions; two jacks can share a single airline with the optional airline kit.
Note: Not compatible with the HDS-27 model. Rolling bridge jacks are built for specific BendPak lift models, and compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Specification | Value |
|---|---|
| Lifting Capacity | 25,000 lbs. (11,340 kg) |
| Suitable Lift Model(s) | HDS-40 Series |
| Min. Drive-Over Height (Short Arm Pad) | 9" (229 mm) |
| Min. Drive-Over Height (Short Top Pad) | 9.75" (248 mm) |
| Min. Drive-Over Height (Tall Arm Pad) | 10.5" (267 mm) |
| Min. Drive-Over Height (Tall Top Pad) | 11.25" (286 mm) |
| Max. Lifting Height (Short Arm Pad) | 19" (483 mm) |
| Max. Lifting Height (Short Top Pad) | 19.75" (502 mm) |
| Max. Lifting Height (Tall Arm Pad) | 20.5" (521 mm) |
| Max. Lifting Height (Tall Top Pad) | 21.25" (540 mm) |
| Support Base Width | 45" (1,143 mm) |
| Max. Arm Pad Reach | 63.75" (1,619 mm) |
| Min. Arm Pad Reach | 48.5" (1,232 mm) |
| Max. Top Pad Reach | 39.5" (1,003 mm) |
| Min. Top Pad Reach | 8" (203 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 7,200 PSI |
| Power Requirement | None |
| Shipping Weight | 786 lbs. (356 kg) |
| Shipping Dimensions | 47" x 29" x 17" (1,206 x 736 x 431 mm) |
