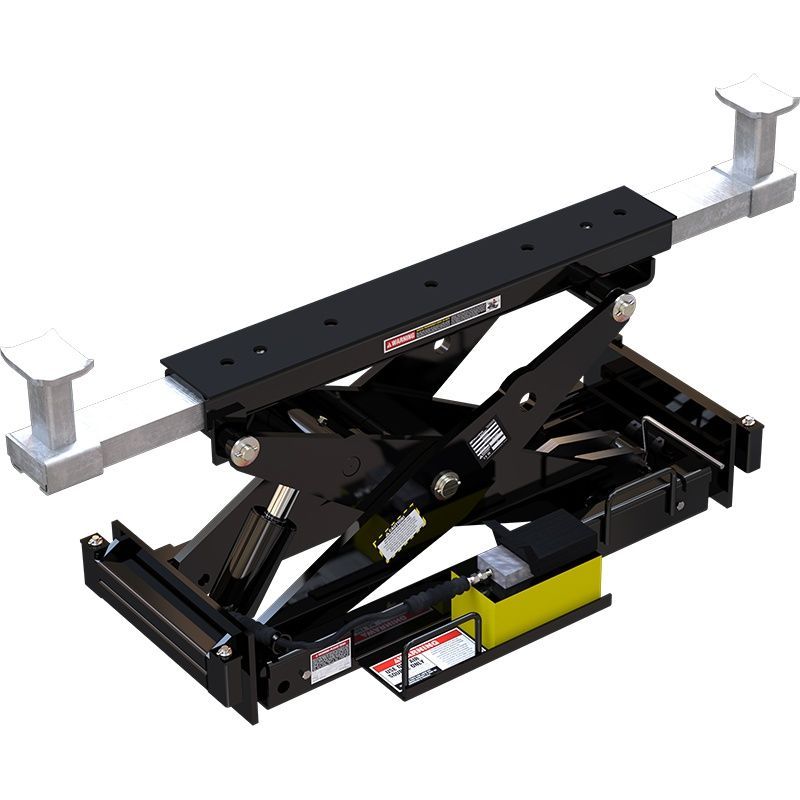

BendPak RBJ15000 4-Post Rolling Bridge Jack – 15,000-lb. Capacity

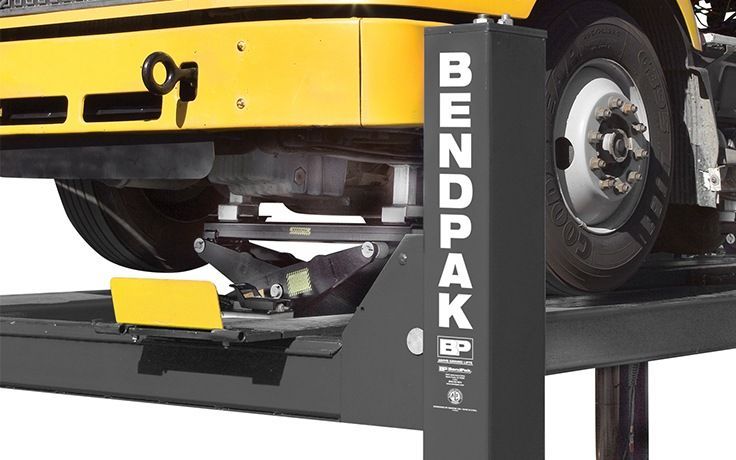

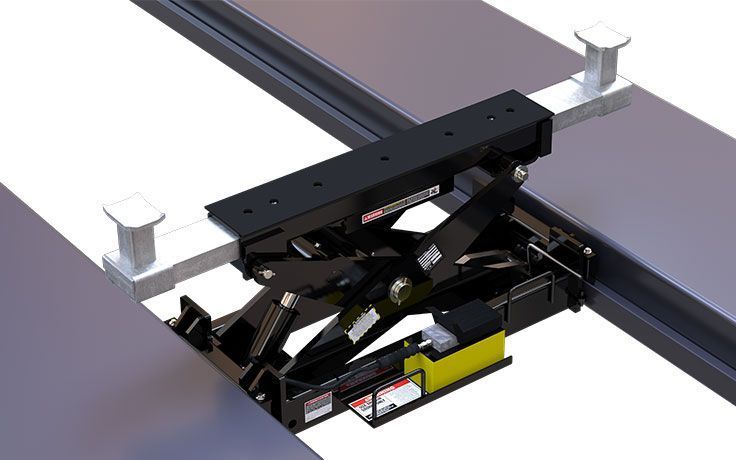

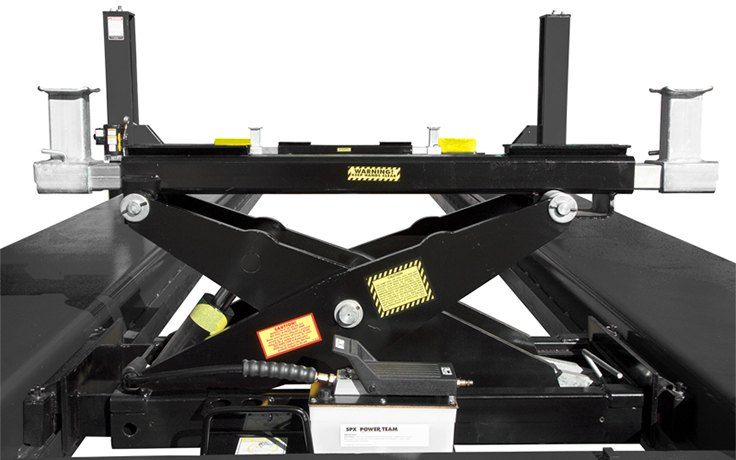

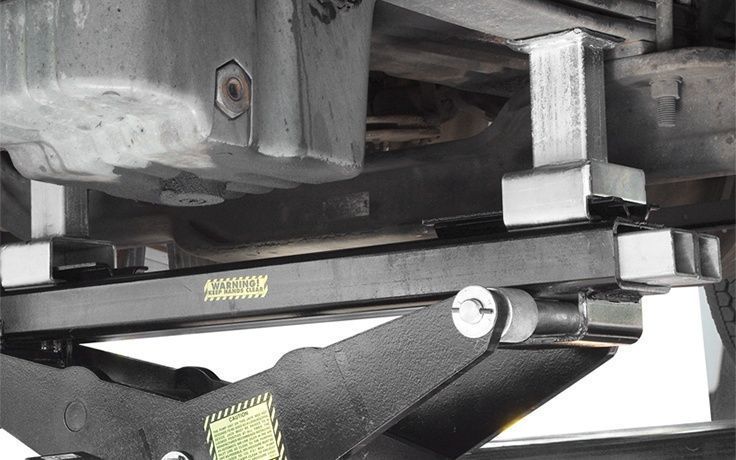

The BendPak RBJ15000 is a 15,000 lb. capacity rolling bridge jack built for the HDS-27 and HDS-40 series four-post lifts, giving heavy-duty trucks and commercial equipment full wheel-service access. In place of a rubber pad, it uses four steel contact pads to support the axle and frame lift points of large vehicles, and its low-profile design keeps it usable on lower-clearance vehicles as well. An air/hydraulic power unit with a foot pedal raises the jack to any of three lock positions, and an optional airline kit lets two jacks share a single air source.
Note: Rolling bridge jacks are built for specific BendPak lift models. Compatibility with non-BendPak or unverified lifts is not guaranteed, so confirm fitment before ordering; freight and restocking fees may apply to returns related to incompatibility.
| Lifting Capacity | 15,000 lbs. (6,804 kg) |
|---|---|
| Suitable Lift Model(s) | HDS-27 Series, HDS-40 Series |
| Min. Drive-Over Height | |
| Short Arm Pad | 9" (229 mm) |
| Short Top Pad | 10" (254 mm) |
| Tall Arm Pad | 11" (279 mm) |
| Tall Top Pad | 12" (305 mm) |
| Max. Lifting Height | |
| Short Arm Pad | 19" (483 mm) |
| Short Top Pad | 20" (508 mm) |
| Tall Arm Pad | 21" (533 mm) |
| Tall Top Pad | 22" (559 mm) |
| Reach | |
| Support Base Width | 45.75" (1,162 mm) - 59" (1,499 mm) |
| Max. Arm Pad Reach | 63.75" (1,619 mm) |
| Min. Arm Pad Reach | 48.5" (1,232 mm) |
| Max. Top Pad Reach | 39.5" (1,003 mm) |
| Min. Top Pad Reach | 7.75" (197 mm) |
| Time to Full Rise | 55 seconds |
| Pump | Air/Hydraulic |
| Air Pressure | 125 PSI (10-25 CFM) |
| Max. Operating Hydraulic Pressure | 6,000 PSI |
| Power Requirement | None |
| Shipping Weight | 708 lbs. (321 kg) |
| Shipping Dimensions | 48" x 29" x 18" (1,238 x 736 x 457 mm) |
