M1M Pitted Down Draft Paint Booth PDD-141026
by M1M
SKU PDD141026
Original price
$25,116.00
-
Original price
$25,116.00
Original price
$25,116.00
$25,116.00
-
$25,116.00
Current price
$25,116.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

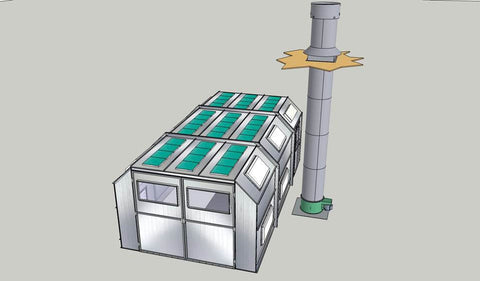

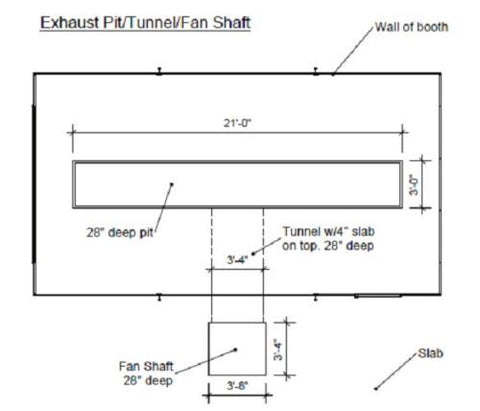

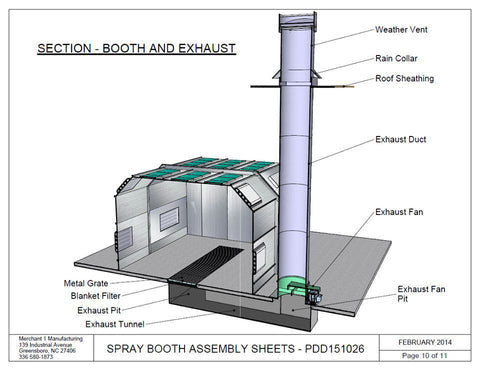

Much like the side down-draft, pitted down-draft booths provide top-down airflow but exhaust sub-surface, and are most often used as a replacement for another PDD or where the facility already has infrastructure to support it. Can be equipped with an air intake box and heating unit.
- US-manufactured, built in Reidsville, NC
- 18-gauge G-90 galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Standard and custom size booths
Pitted Down Draft Paint Booth w/ Filter Top
| Model Number | PDD141026 |

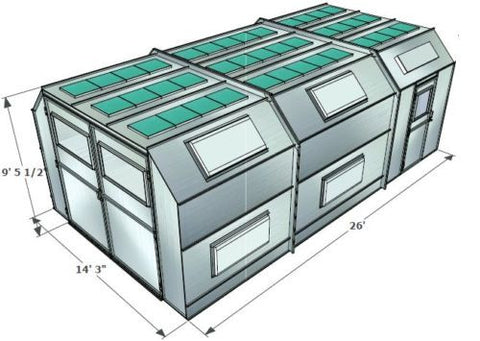

| Inside Dimensions | 14' W x 9'4" T x 25'9" L |
| Outside Dimensions | 14'3" W x 9'10" T x 26' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 9' T x 10' W w/ large observation glass |
| Man Door Access | 1 door w/ window, 7' T x 3' W |
| Lighting | Ten 2'x4' LED fixtures w/ glass, light over door (Class 1 Div 2) |
| Exhaust System | 30" dia tubeaxial fan; 5HP 3-phase; 15,680 CFM @ 1/2" S.P. |
| Filtration | 20"x20" intake & exhaust blanket filter |
| Included | Manometer/draft gauge, hardware & sealants |
Additional Options (quote required)
- Air intake box for heat — $2,500
- 30" dia x 8' exhaust ductwork package — $1,500
- Drive-through doors — $3,500
- Powder coated bright white (complete booth) — $3,500
- Control panel for lights & fan — $1,000
- VFD control panel — $1,550
