M1M PBOF888 Open Face Paint Booth
by M1M
SKU
Original price
$6,115.00
-
Original price
$11,357.00
Original price
$6,115.00
$6,115.00
-
$11,357.00
Current price
$6,115.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description
The Open Face Paint Booth provides a simple and safe solution for isolating and exhausting paint operations, limiting worksite contamination and exposure at significantly less cost than a full cabin paint booth. Custom-built in Reidsville, NC.
- US-manufactured, built in Reidsville, NC
- Designed for extended service and production requirements
- 18-gauge G-90 galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
- Standard and custom size booths, multiple airflow variants

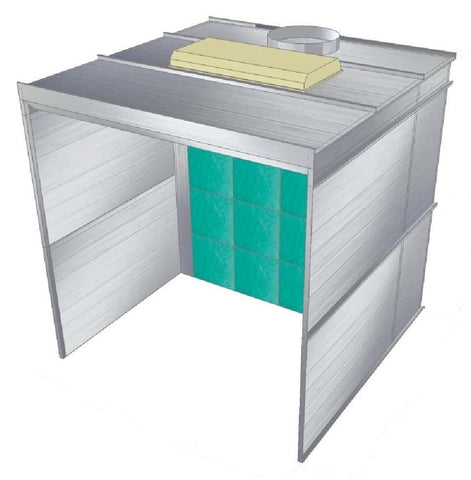

Open Face Paint Booth (Base Model PBOF888)
| Model Number | PBOF888 |
| Inside Dimensions | 8' W x 8' T x 5'8" D |
| Outside Dimensions | 8' W x 8' T x 8' D |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Opening | 8' W x 8' T |
| Lighting | One 2'x4' LED fixture w/ glass |
| Exhaust System | 24" fan; 1.5HP 3-phase; 7,250 CFM @ 1/2" S.P. |
| Filtration | 20"x20" exhaust filter pads |
| Included | Manometer/draft gauge, hardware & sealants |
Custom Size Variants
| PBOF888 — $5,508 | 8' W x 8' T x 8' D |

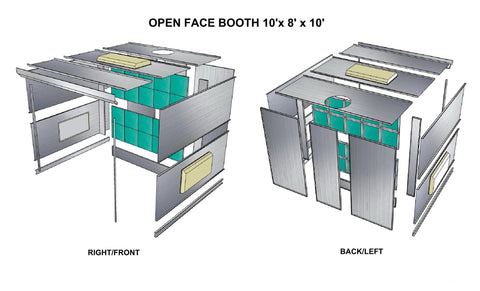

| PBOF10810 — $6,237 | 10' W x 8' T x 10' D |
| PBOF12810 — $7,203 | 12' W x 8' T x 10' D |
| PBOF14812 — $8,139 | 14' W x 8' T x 12' D |
| PBOF16810 — $8,516 | 16' W x 8' T x 10' D |
| PBOF20813 — $10,792 | 20' W x 8' T x 13' D |
