Olympic "Triple Stacker-XL" Three Level 3-Car Stacking Lift / 9,000 and 7,000 Lb. Capacity / Extended Length, Width & Height / 10-Year Warranty / SHIPS FREE
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Description

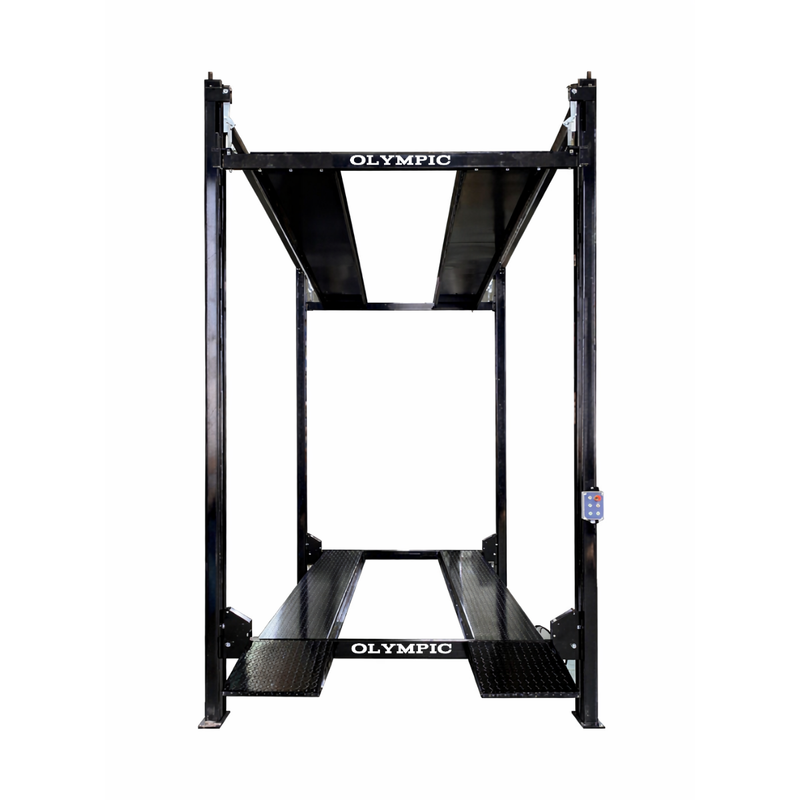

"The Triple-Stacker-XL" Car Storage Lift

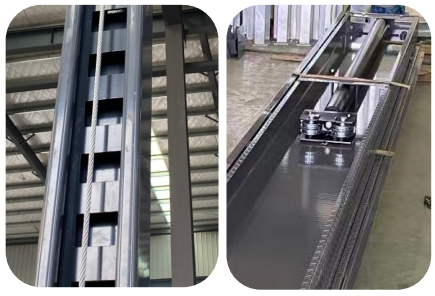

Model: 4032-XL. "The Triple-Stacker-XL" Three Car Storage Lift is designed for multi-vehicle storage. Features Olympic's exclusive heavy-duty single-channel ladder locking system and electric button controls. The unique anti-failing lock system assures safety.
Specifically designed to accommodate the largest classic cars and trucks from the golden age of American automotive manufacturing.
The "Triple-Stacker-XL" is designed to stack and store three vehicles in a single parking footprint, making it ideal for garages, dealerships, and storage facilities in one parking space.
Total Capacity: 16,000 lbs. (Upper 7,000 / Lower 9,000) | Max Lift Height: 154.4″ (Upper) | Warranty: 10 Years
*Special Order Only.
Key Features
- Heavy-duty 4-post design for triple vehicle storage
- 16,000 lb. total lifting capacity (7,000 upper / 9,000 lower)
- Powerful 3KW 60Hz three-horsepower 1ph motor
- Manufactured from durable Q235 spec steel
- Wide platform design for larger vehicles
- Smooth and stable lifting operation
- Efficient space-saving vertical parking system
- Includes plastic oil trays (6 pcs)
- Includes heavy-duty steel ramps (2 pcs)
- Includes a powerful 220V 3KW 60Hz 1phase power unit

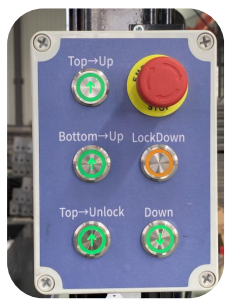

- User-friendly control box included
- Ideal for residential and commercial applications

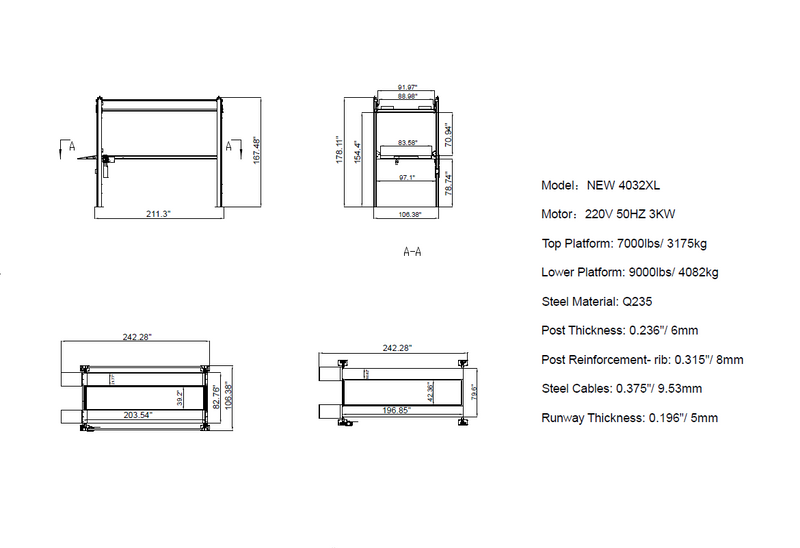

Specifications
| Model | 4032-XL |
|---|---|
| Lift Type | 4-Post Triple Car Storage Lift |
| Upper Platforms Capacity | 7,000 lbs. each |
| Lower Platform Capacity | 9,000 lbs. |
| Max Rise (Upper) | 154.4″ |
| Max Rise (Lower) | 78.74″ |
| Clearance Between Platforms | 70.94″ |
| Overall Width | 106.38″ |
| Overall Length | 242.28″ |
| Column Height | 178.11″ |
| Motor | 220V 3KW 60Hz |
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
