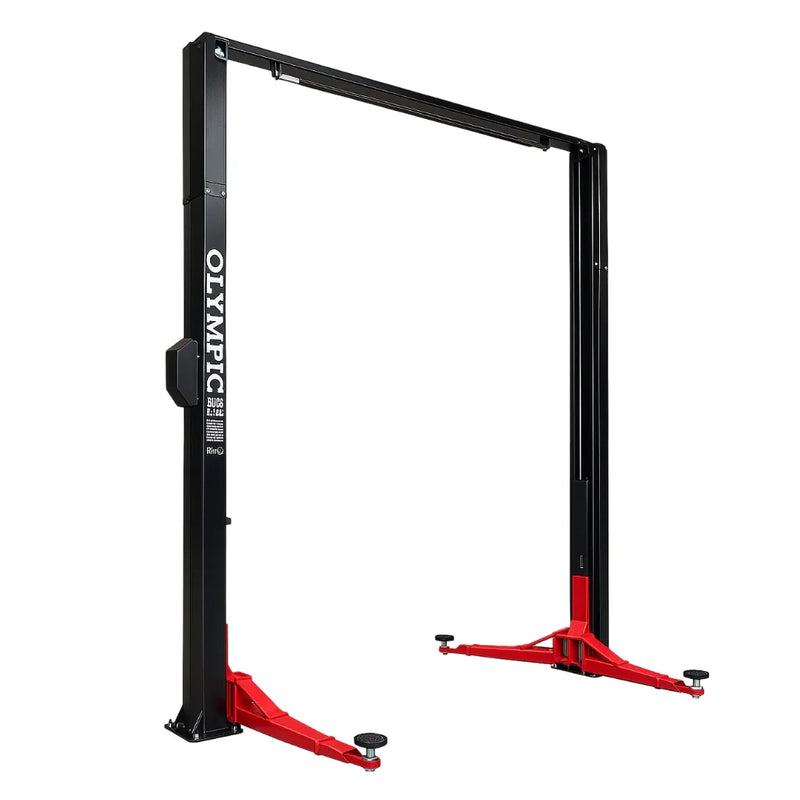

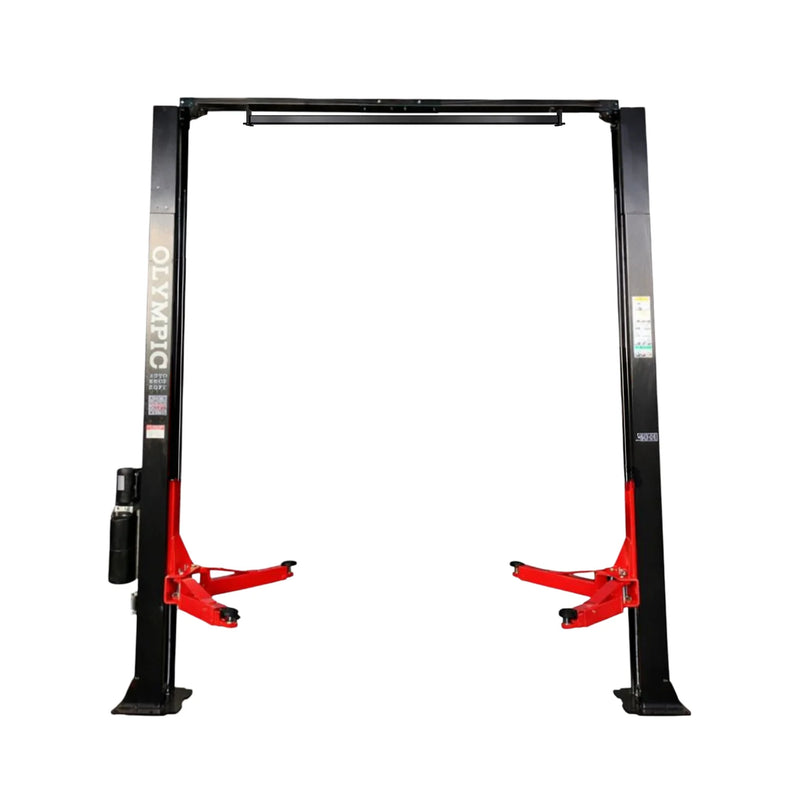

Olympic 2PCFHD-12 12,000‐lb. HDXL / Symmetric Post / Clear Floor / 3-Stage Arms
Authorized Dealer
We are an authorized dealer for all OLYMPIC branded products.
Why Choose Olympic?
When you buy an Olympic lift, you can expect a significant boost in performance and life expectancy. No one surpasses Olympic in quality, safety, or value, which means you can expect your Olympic Lift to be the last lift you ever buy. Internationally certified and tested to perform flawlessly at 150% of rated capacity
Description
Olympic 2PCFHD-12 / 12,000 lb. Heavy-Duty Extra-Wide, Extra-Tall Lift
A heavy-duty lift built for the toughest jobs.

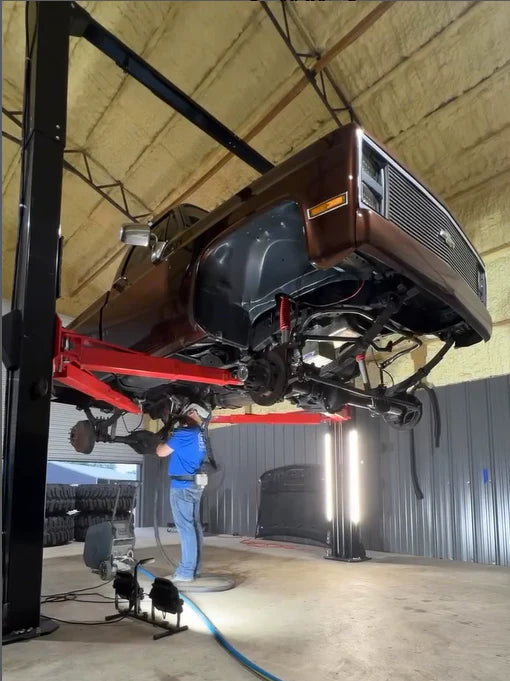

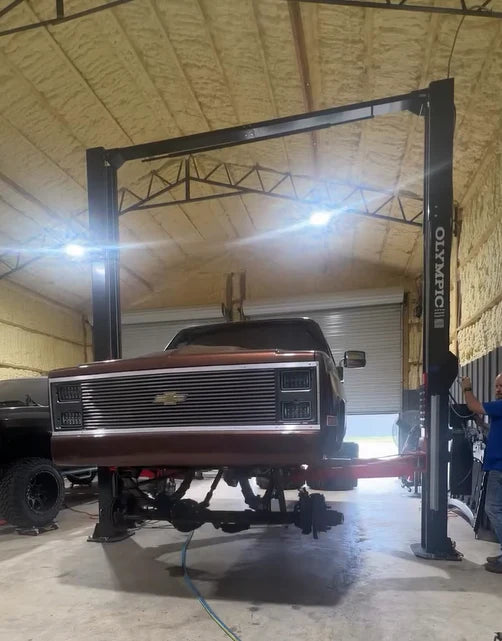

Designed to handle large, wide, and tall vehicles, including dual-wheel trucks, with ease. Built on the same rugged structure as our 15,000 lb. lift, this model is perfect for high-volume service centers and serious shops.
Capacity: 12,000 lbs. | Fits Under Ceiling Height: 14′6″ | Max. Lift Height: 70.87″
Key Features
- Olympic 10-Year Warranty!
- High-quality Q235 spec structural steel
- Technically advanced configuration
- Deluxe pin-on carriage
- Convenient single-point lock release
- Large-diameter hydraulic cylinder in each column
- Three-stage symmetrical long reach extension arms
- Three-stage screw-on adjustable height foot adapters
- Durable powder-coated finish
- Automatic stop at maximum lifting height
- Synchronized hydraulic system
- Door anti-crush rubber protection
- Swing arm supports with high-quality pads
- Mounting hardware included
- Includes (4) 3.5″ truck adapters
- 110V 2.2KW 60Hz 3HP 1Ph power unit included (220V option)
- Certified & tested at 150% of rated capacity
Specifications
| Style | 2-Post Clear Floor |
|---|---|
| Capacity | 12,000 lbs |
| Overall Height | 174″ |
| Overall Width | 156″ |
| Voltage | 110V included / 220V optional |
| Min. Lift Height | 4.3″ |
| Max. Lift Height | 70.87″ |
| Width Between Posts | 134″ |
| Front Arm Reach | 34.65″ – 70.87″ |
| Rear Arm Reach | 34.65″ – 70.86″ |
| Speed of Rise | 55 seconds |
| Speed of Lowering | 55 seconds |
| Locking positions | 12 |
| Fits Under Ceiling Height | 14′6″ |
