M1M Mixing Room PBMR888
by M1M
SKU PBMR888
Original price
$6,090.00
-
Original price
$6,090.00
Original price
$6,090.00
$6,090.00
-
$6,090.00
Current price
$6,090.00
MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description

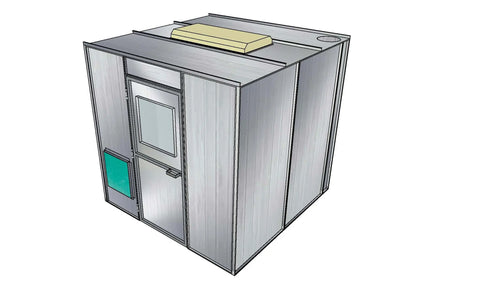

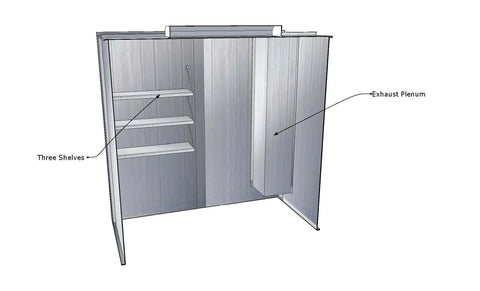

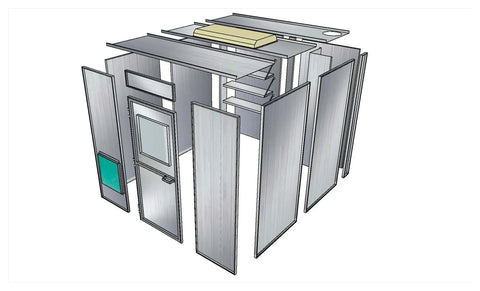

A code-compliant, ventilated room for paint storage and mixing — an excellent addition to a paint and body shop. Note: mixing rooms cannot be used for spraying operations, storage only.
- US-manufactured, built in Reidsville, NC
- 18-gauge G-90 galvanized steel
- Certified sub-components (fan/motor, filters, LED lights)
- OSHA and NFPA-33 compliant
Mixing Room PBMR888 Specifications
| Inside Dimensions | 7'8" W x 7'10" T x 8' L |
| Outside Dimensions | 8' W x 8' T x 8' L |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Front Door Opening | 36" W x 84" T |
| Lighting | One 4-tube 2'x4' LED fixture w/ glass |
| Exhaust System | 12" fan; 1/2HP 3-phase; 1,429 CFM @ 1/4" S.P. |
| Filtration | 20"x20" exhaust filter pads |
| Included | Hardware and sealants |
Additional Options (quote required)
- Single phase motor
- 12" dia x 8' exhaust ductwork package
- Powder coated bright white (all panels)
- High-end control panel (UL listed)
- High-end VFD control panel (UL listed)
