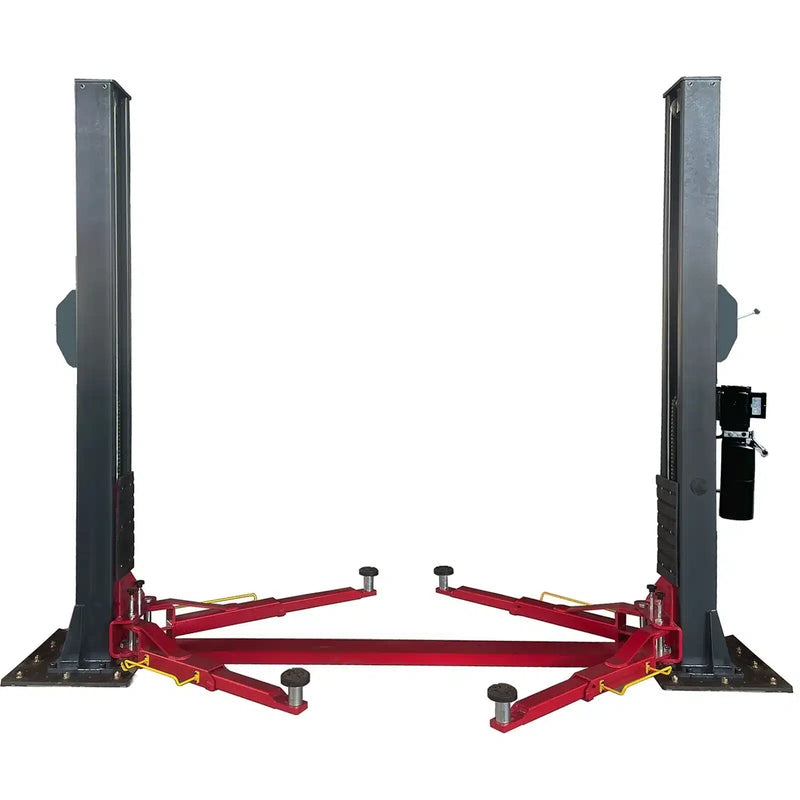

KATOOL KT-H120D 12,000lb 2-Post Symmetric Arms Floorplate Lift 220V
Authorized Dealer
We are an authorized dealer for all KATOOL branded products.

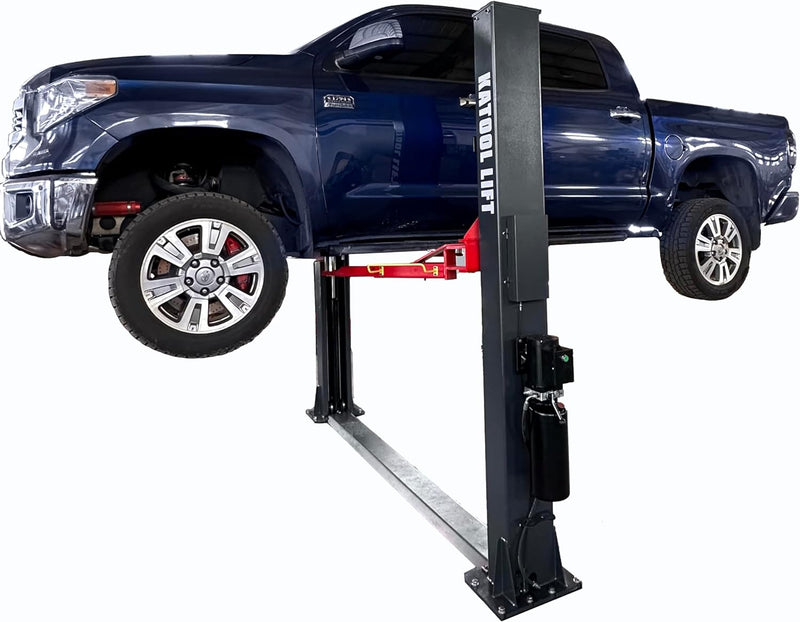

Ready to tackle even the heaviest vehicles with confidence? Introducing the Katool KT-H120D, a powerhouse lift designed to revolutionize your workspace. This heavy-duty beast has a massive 12,000 lb lifting capacity, handling everything from cars to trucks with ease. Safety is built-in with CE approval and rigorous testing exceeding the most extreme industry standards. The single-point lock release and symmetric arm design streamline your workflow, while the extended support adapter accommodates a wider range of vehicles.
The lifting is made easy due to the KT-H120D’s dual hydraulic chain-drive cylinders, a 4 HP motor, and robust 3/8″ cable ensure reliable and powerful lifting. Rubber pad door protection safeguards vehicles from ugly dings and scratches. So what are you waiting for? Upgrade to the Katool KT-H120D today and experience the power and efficiency of a truly professional lift!
- CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested

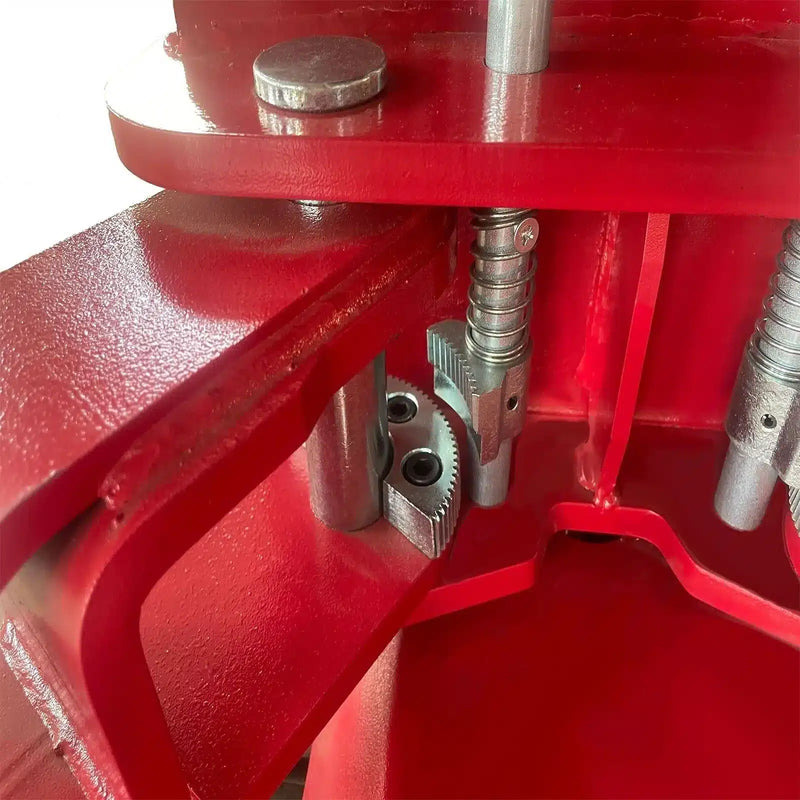

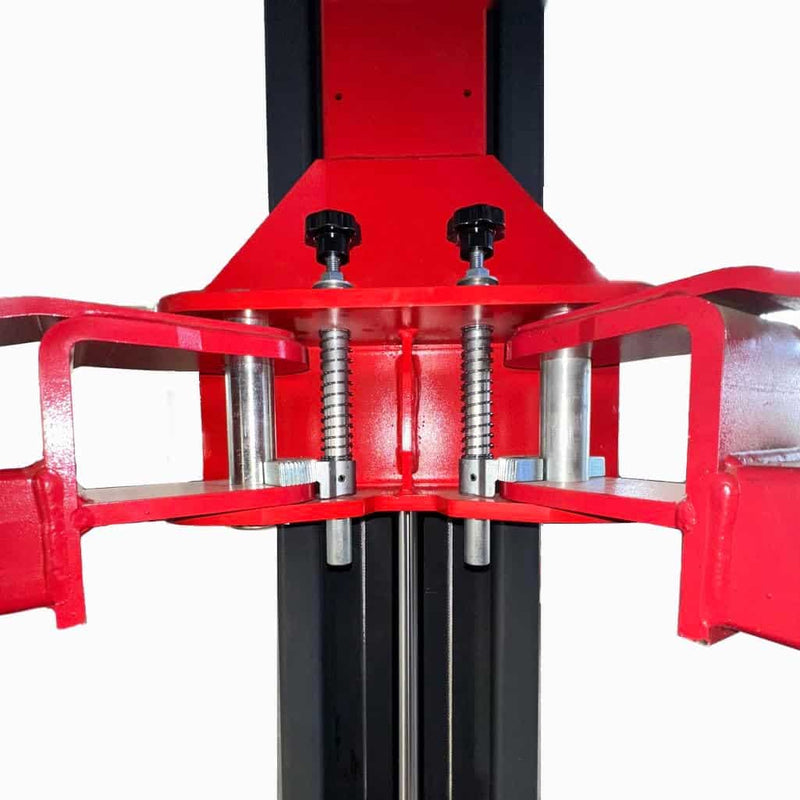

- Lock Release: Single Point

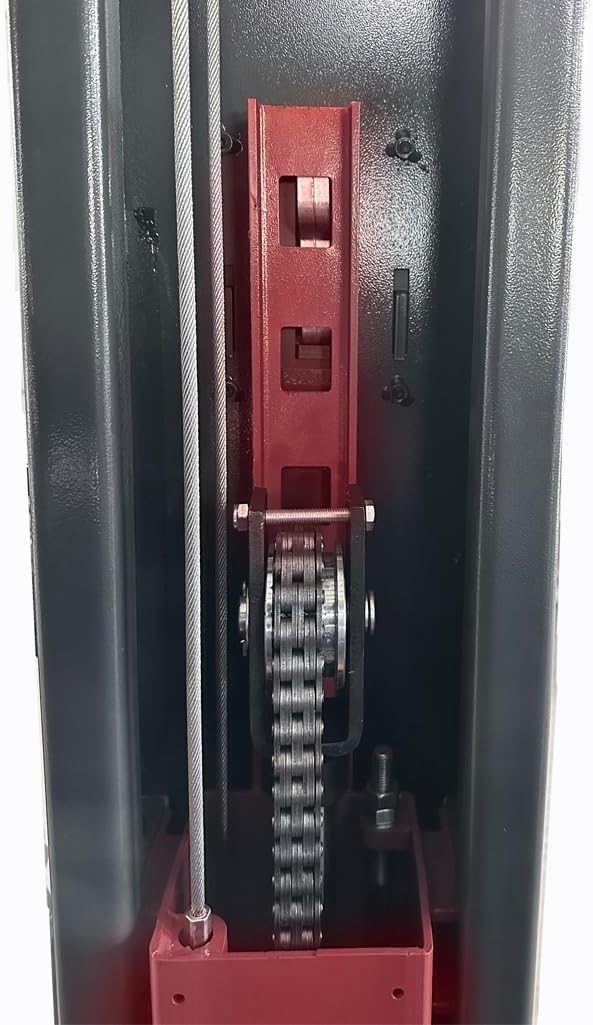

- Hydraulic System: Dual Hydraulic Chain-Drive Cylinders
- Door Protection: Rubber Pad
- 1 Year parts warranty
*Concrete thickness must be at least 6” with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
- Lifting Capacity: 12,000 lbs
- Lock Release: Single Point

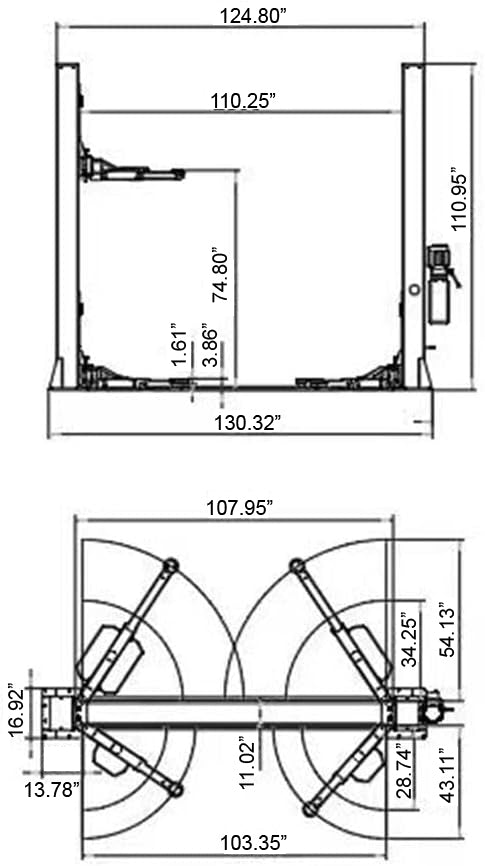

- Max Lifting Height: 74.8″
- Column Height: 110.9″
- Drive Thru Clearance: 110.2″
- Column Width: 124.8″
- Base Plate Design

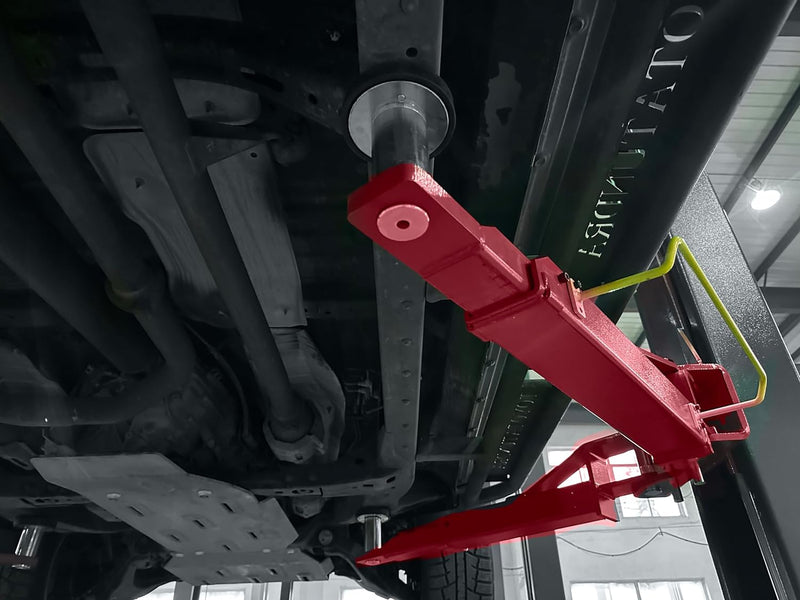

- Arm Style: Symmetric
- Cable Thickness: 3/8″
- Support Adaptor: Extended, adds 4″
- Motor: 4.0 HP, 220V/60HZ/1PH
- Oil: AW-46 or AW-32 (colder climates)
