Professional-Grade Lifting Power for Your Shop

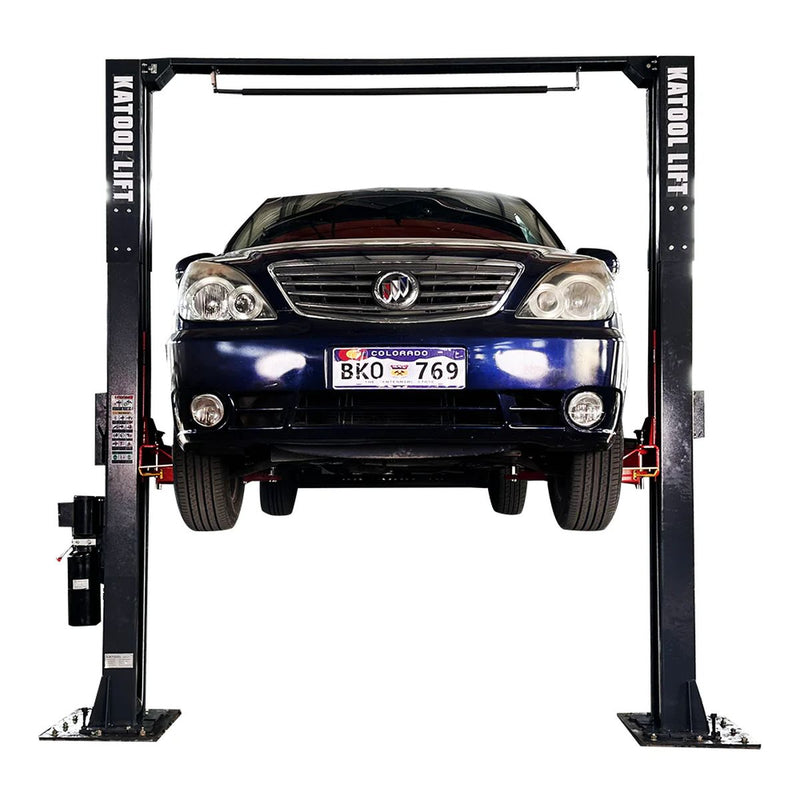

The Katool KT-AM120SD is a robust 12,000 lb capacity asymmetric two-post car lift engineered for professional automotive shops and serious home enthusiasts. With CE Approval and Certification, this lift meets stringent safety standards including a 115% dynamic loading capacity standard and has been 150% static loading capacity tested. Its asymmetric arm design provides optimal vehicle positioning, making it easier to access door openings and service areas while maintaining superior balance and stability.

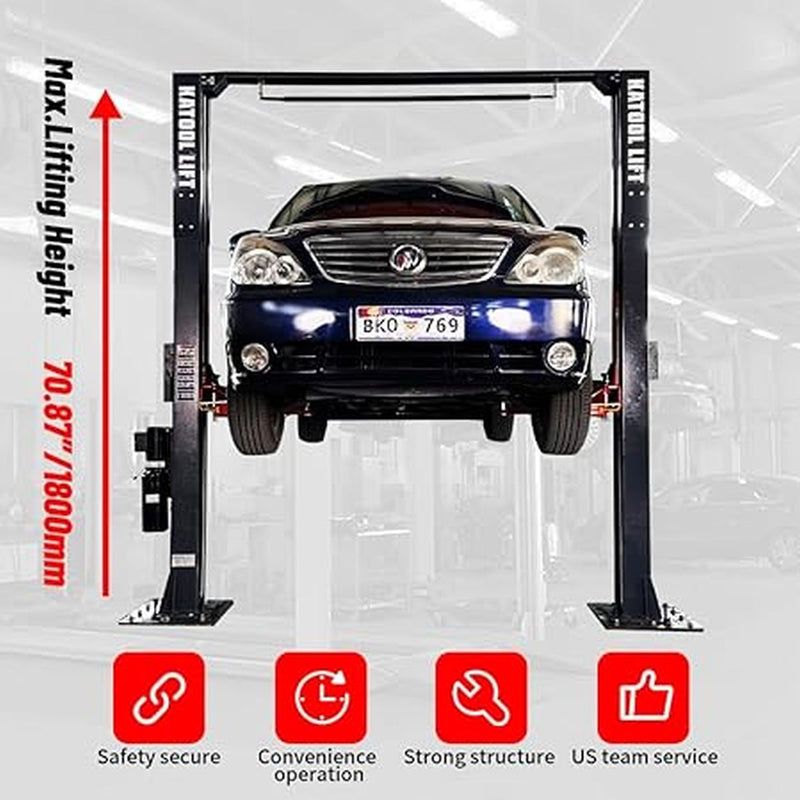

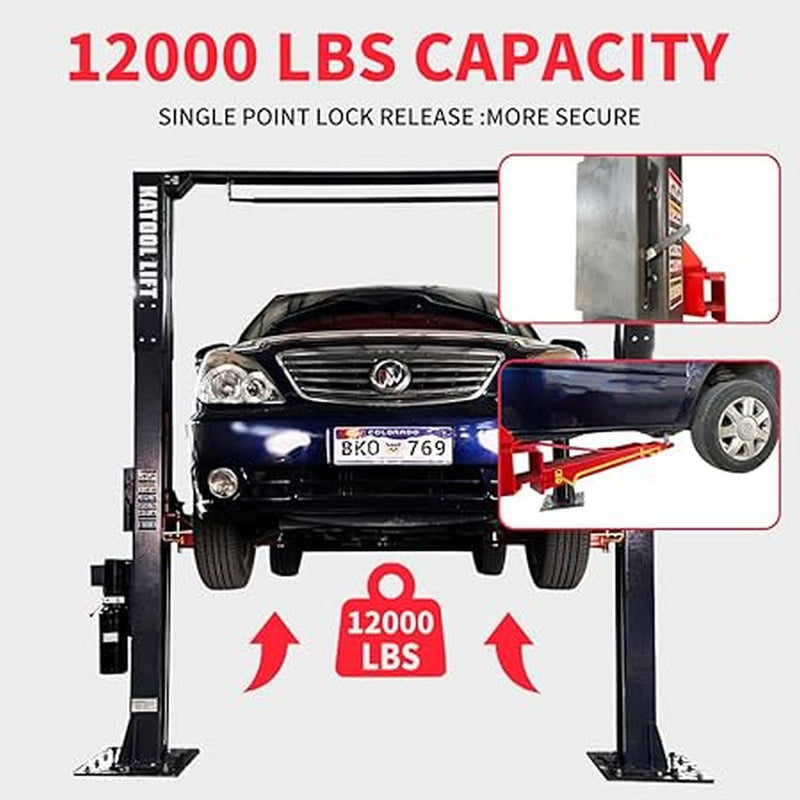

Designed for versatility and daily use, the KT-AM120SD lifts vehicles to a maximum height of 70.87 inches in just 50 seconds, powered by a reliable 2.2Kw motor (220VAC / 60HZ / 1PH standard, with 110V optional). The lift features a single point lock release system for easy operation, an overhead safety shutoff bar for added protection, and rubber pad door opening protection to prevent damage to vehicle doors during service.

Key Features That Set This Lift Apart

• 12,000 lbs lifting capacity handles a wide range of vehicles including full-size trucks and SUVs
• Asymmetric arm configuration provides better vehicle positioning and easier door access
• CE Certified safety standards with 115% dynamic and 150% static load testing for peace of mind

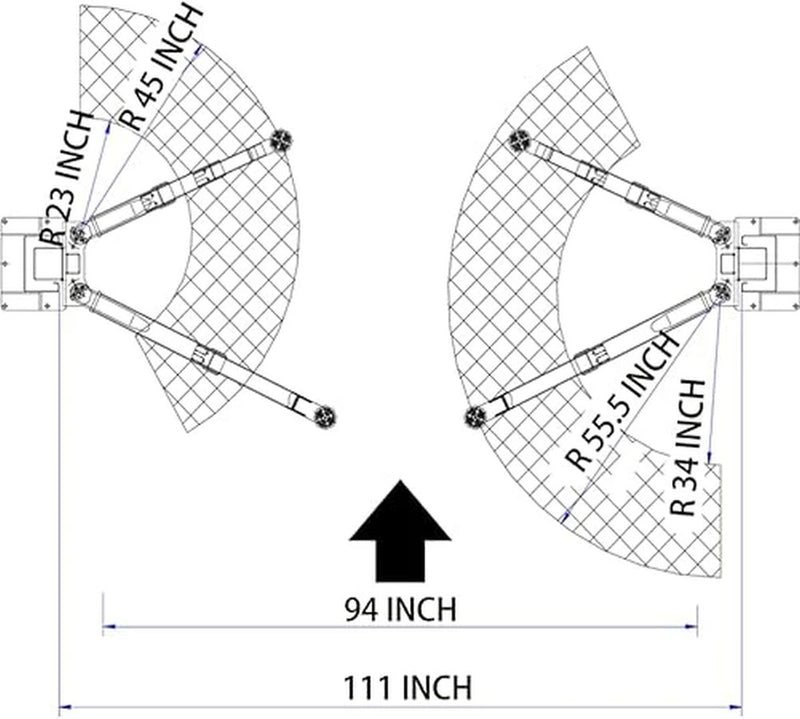

• Generous drive-thru clearance of 94 inches allows easy vehicle maneuvering

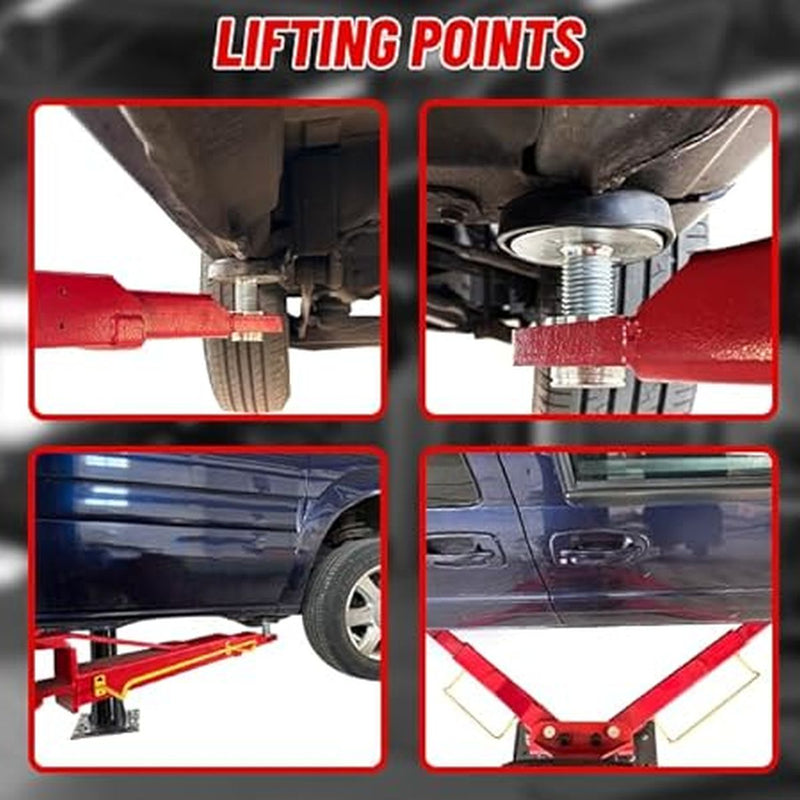

• Includes adjustable extension support adapters ranging from 3.94" to 6" for various vehicle configurations

Intelligent Design for Professional Results

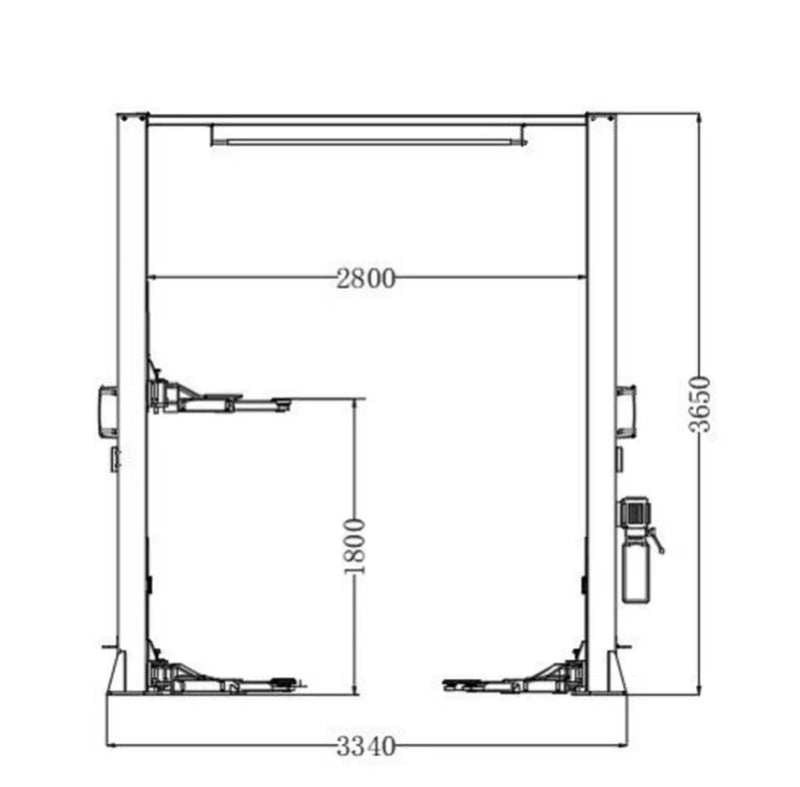

The KT-AM120SD incorporates thoughtful engineering throughout. The 110-inch inside column measurement and 94-inch drive-thru clearance provide ample room for positioning vehicles, while the low 4.3-inch minimum height accommodates low-profile sports cars and performance vehicles. The high-quality hydraulic system ensures smooth, reliable operation lift after lift, and the overhead safety shutoff bar provides automatic protection against over-lifting.

Safety is paramount with this lift. The single point lock release system allows for quick, controlled lowering when needed, while the asymmetric arms feature rubber pad door opening protection to prevent vehicle damage during servicing. Each lift includes a complete set of extension support adapters that adjust from 3.94" to 6", giving you the flexibility to safely lift vehicles with different frame configurations and jacking points.

*Concrete thickness must be at least 6” with a 3000 PSI rating. Failure to install this lift on the proper concrete, could result in serious injury or death! It is the customer’s responsibility to verify concrete thickness and strength before purchase and installation.
