BendPak HDSO14AX Open-Front Alignment Lift - 14,000-lb. Capacity

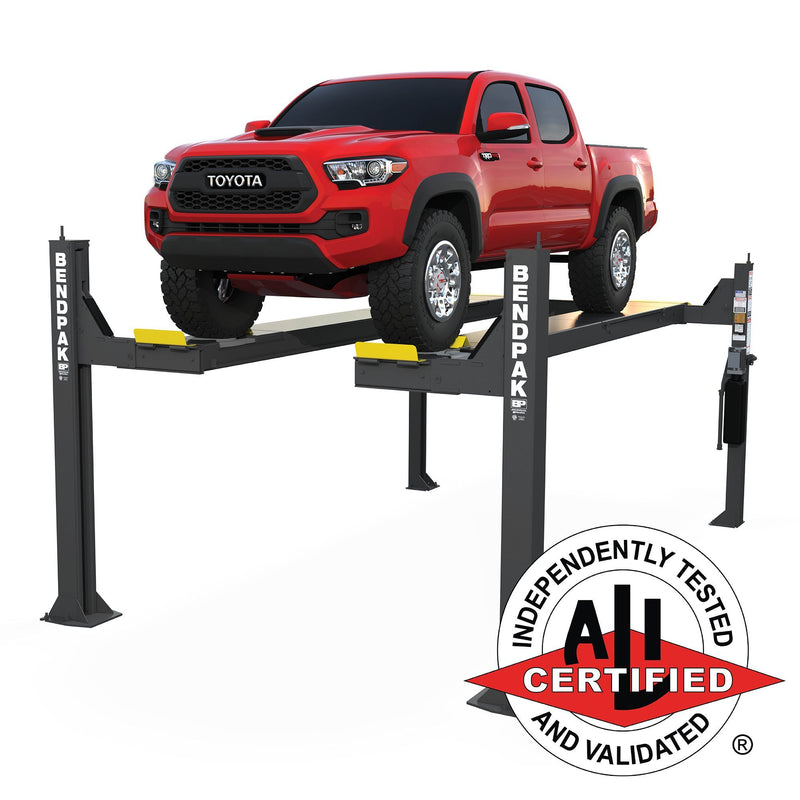

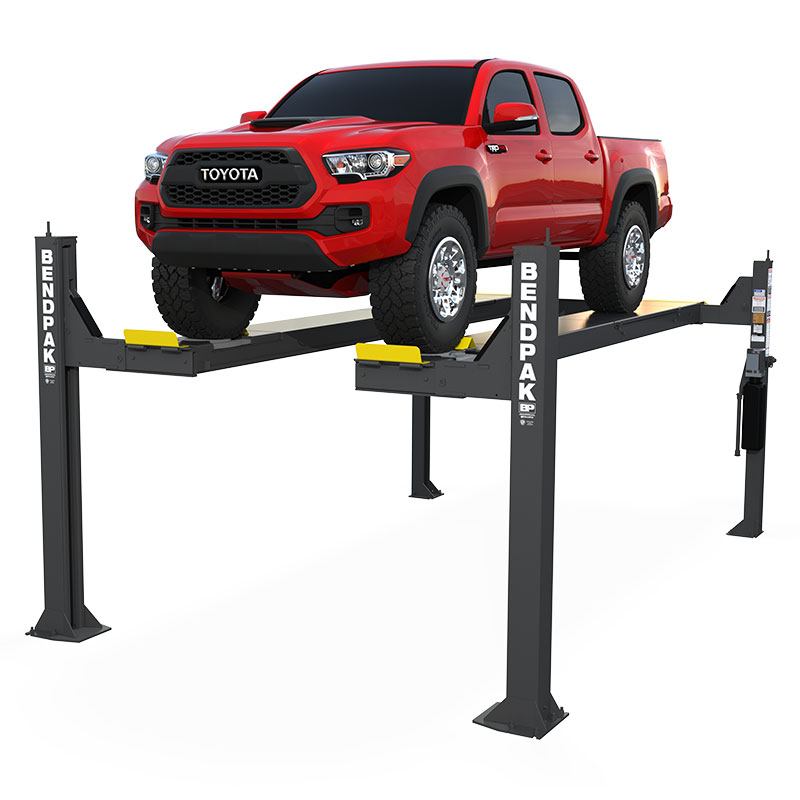

Open-Front Design and 14,000 lbs. of Might

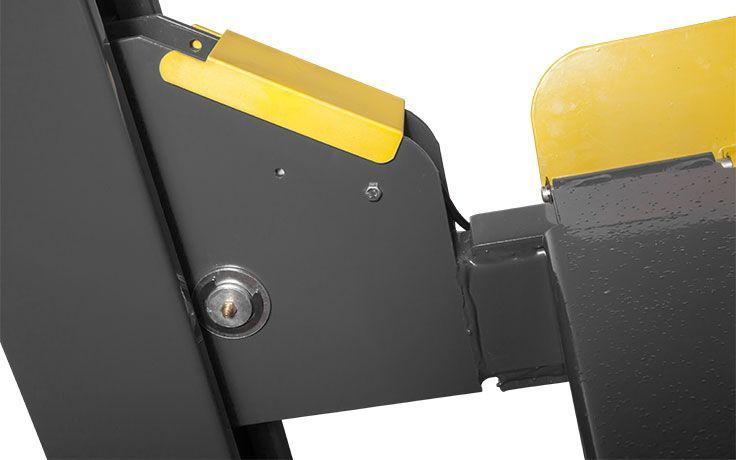

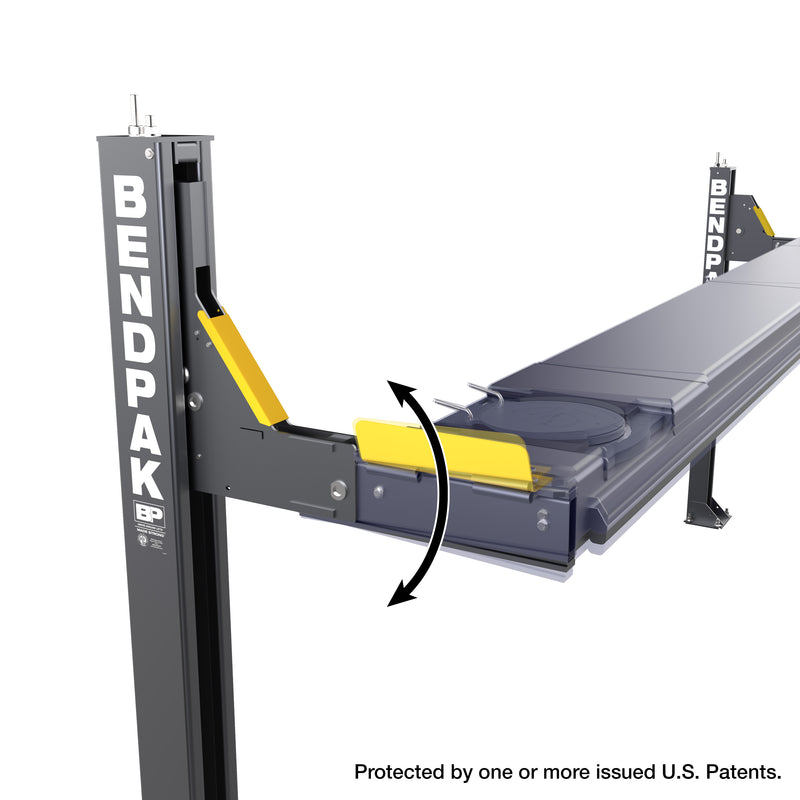

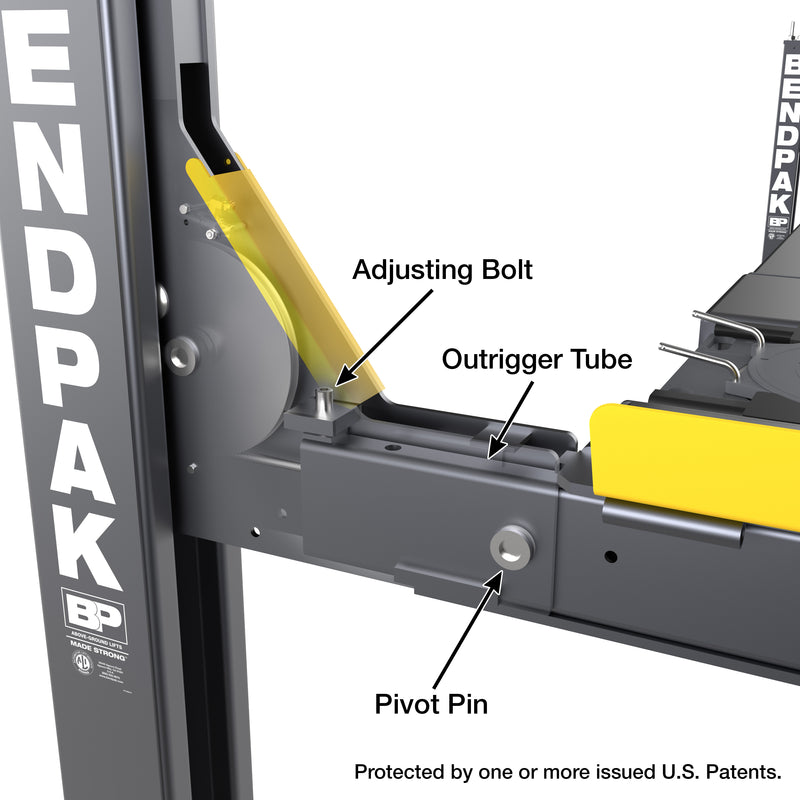

We engineered the HDSO14AX alignment lift without a front crossbar, so operators can easily enter and exit from beneath the vehicle. For precise front-lift leveling, nothing beats our patented, adjustable front outrigger tubes. The infinitely adjustable pitch compensates for excessive loads and sloped floors.
Slip plates

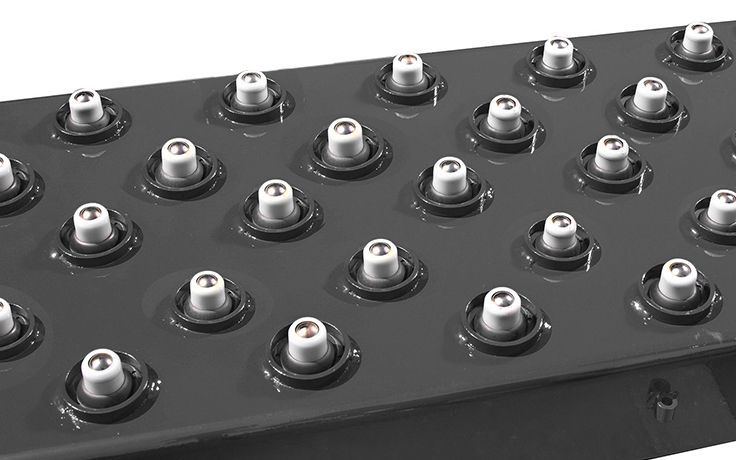

Rear-facing multi-caster slip plates and front-facing turn plates permit precise, free-floating alignment.
Turn plates

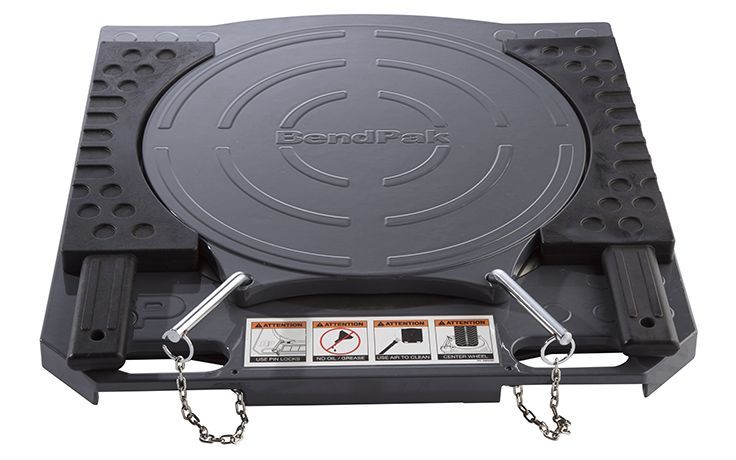

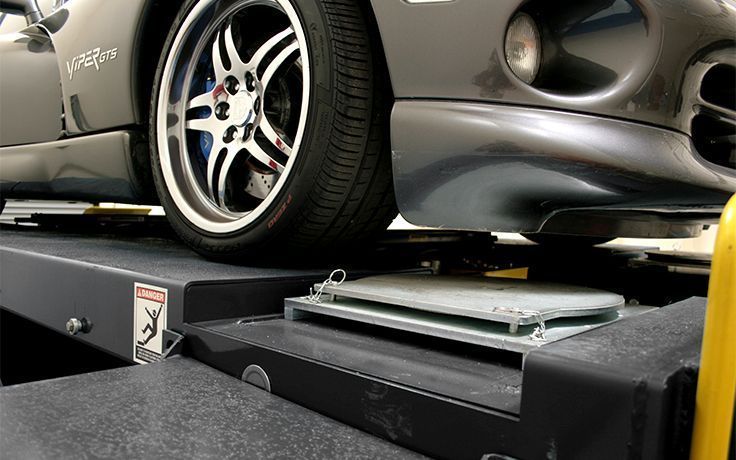

This alignment lift features two recessed turn plate pockets that let you freely position the corrosion-resistant, galvanized turn plates.
Dual-hub cable sheaves
BendPak alignment lifts include strong, durable and oversized 10.5” diameter cable sheaves within the runway and cross tubes, as well as 2.25” diameter sheave axles.
Heavy-duty aircraft cable
BendPak runs four aircraft-quality steel cables (1/2” diameter, 6 x 25) within the columns.
Adjustable height locking positions
The multiple locking heights allow different people to work on the HDSO14AX alignment lift at the height appropriate for them. Since it's an open-front design, getting under is easy no matter how tall they are.

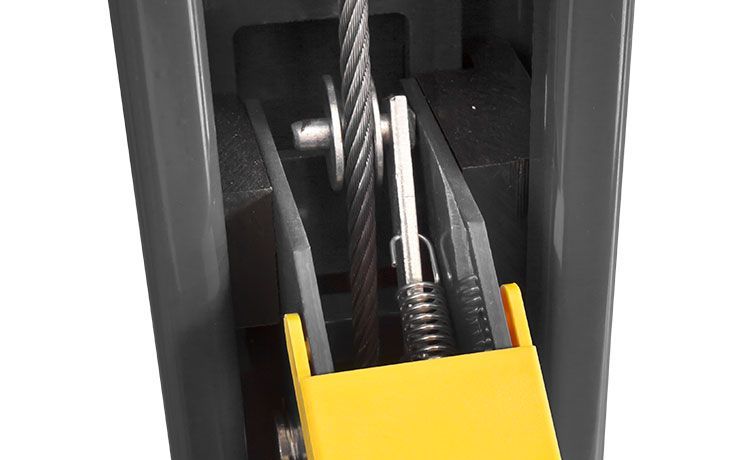

Secondary lock system
A backup lock system protects the alignment system in the event that cable slack is detected.
Rolling bridge jacks
Rolling bridge jacks turn your alignment lift into an all-purpose four-post lift, so you can change brake rotors right before you align the wheels, all on the same lift.
Specifications
| Lifting Capacity | 14,000 lbs (6,350 kg) |
| A - Overall Width / Front | 143.25" (3,638 mm) |
| A - Overall Width / Rear | 130" (3,304 mm) |
| B - Overall Length | 244.5" (6,209 mm) |
| C - Outside Length | 215.5" (5,472 mm) |
| D - Height of Columns / Front | 103.25" (2,623 mm) |
| D - Height of Columns / Rear | 92" (2,338 mm) |
| E - Min. Runway Height | 7.75" (196 mm) |
| F - Max. Rise | 77.5" (1,970 mm) |
| G - Max Lifting Height | 70" (1,778 mm) |
| H - Width Between Columns / Front | 123" (3,124 mm) |
| H - Width Between Columns / Rear | 120" (3,050 mm) |
| I - Runway Width | 20.5" (520 mm) |
| J - Width Between Runways | 42" (1,067 mm) |
| K - Length of Runways | 197.5" (5,017 mm) |
| L - Min. 4-Wheel Alignment | 89" (2,261 mm) |
| M - Max 4-Wheel Alignment | 156" (3,962 mm) |
| N - Max 2-Wheel Alignment | 182" (4,623 mm) |
| Min. Wheelbase @ Rated Capacity | 140" (3,556 mm) |
| Min. Wheelbase 75% Rated Capacity | 120" (3,048 mm) |
| Min. Wheelbase 50% Rated Capacity | 100" (2,540 mm) |
| Min. Wheelbase 25% Rated Capacity | 80" (2,032 mm) |
| Locking Positions | 15 |
| Lock Spacing | Every 4" (102 mm) |
| Lifting Time | 60 Seconds |
| Standard Motor | 220 VAC / 60Hz 1 Ph. |
