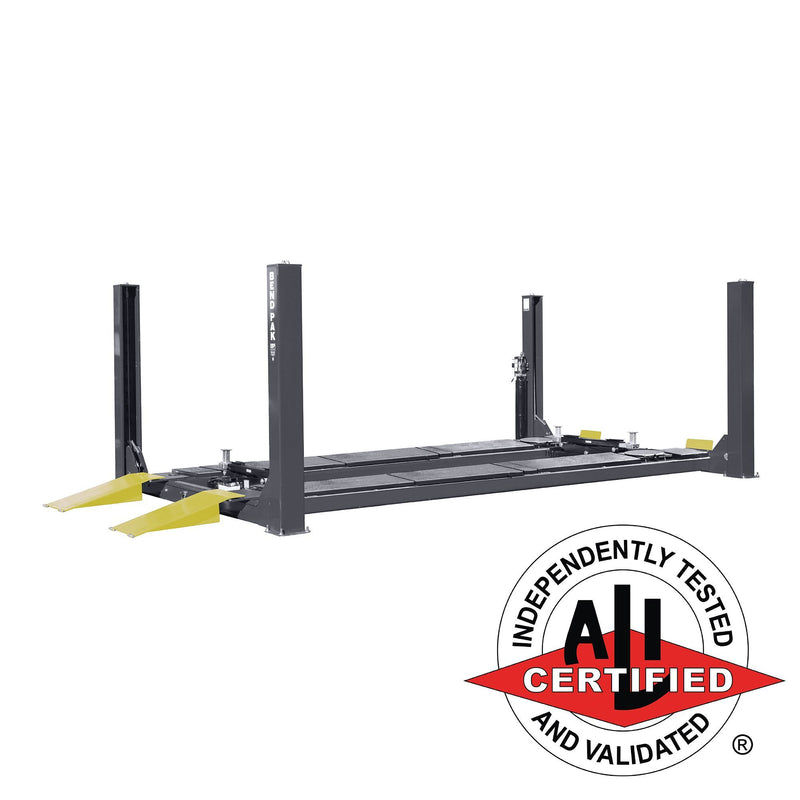

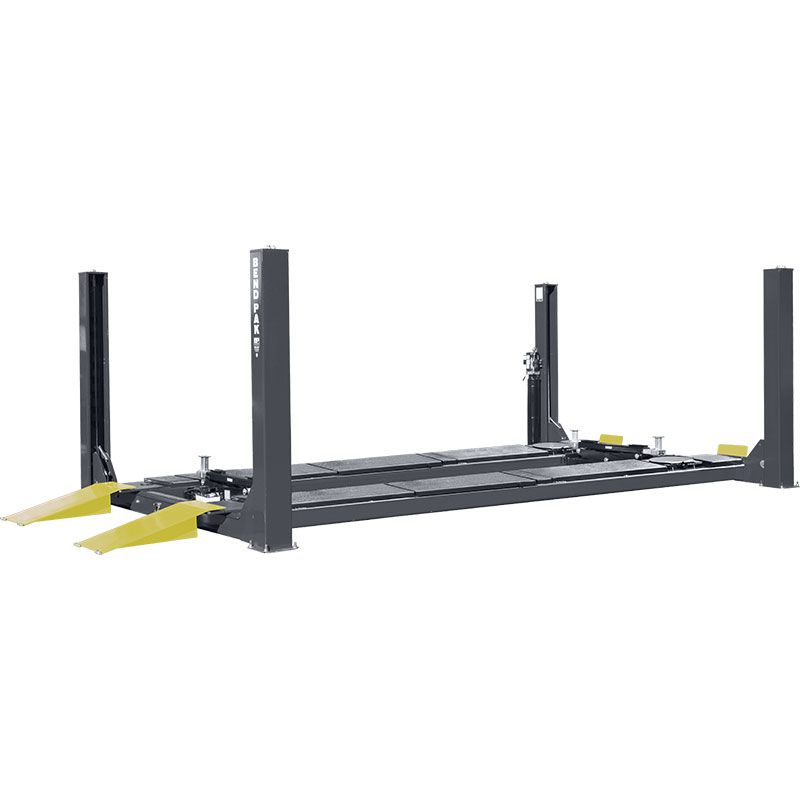

BendPak HDS-18EA Four-Post Alignment Lift - 18,000-lb. Capacity
A Four-Post Truck Lift for Every Alignment Application
BendPak's largest-capacity alignment lift easily accommodates vehicles up to 18,000 lbs, while still servicing smaller sports cars and race cars without a problem. The HDS-18EA offers the same safety features and rugged design as every other car lift we make.

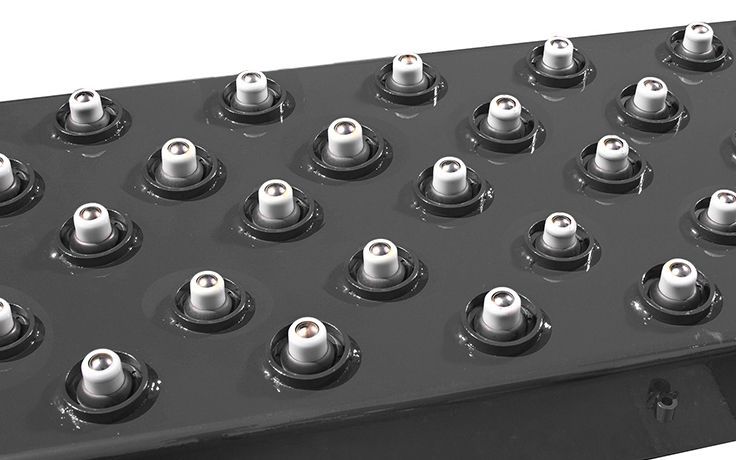

Slip plates
Our rear-seated, free-floating slip plates let you perform wheel alignments on heavy trucks while keeping vehicle suspensions relaxed, securely fitted on the slip plates.

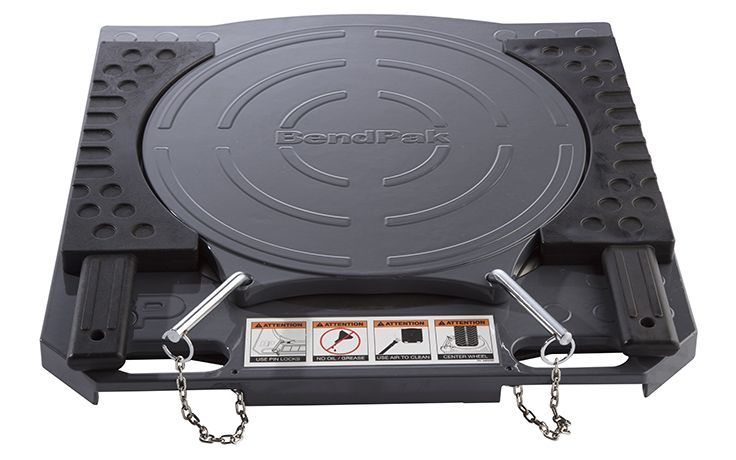

Turn plate
Galvanized and corrosion-resistant front-alignment turn plates feature dual recessed turn plate pockets that position your turn plates with very little effort.

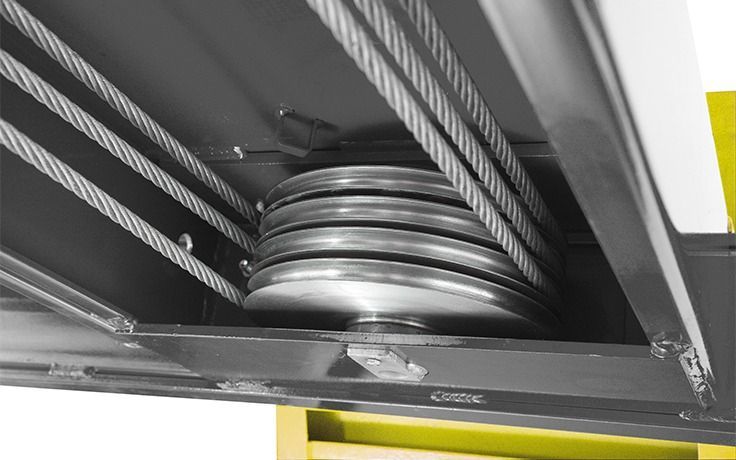

Dual-hub cable sheaves
12" diameter cable sheaves located within the runway, along with 4" diameter sheave axles.
Heavy-duty aircraft cable
5/8” (16mm) diameter, high tensile lifting cables hoist your lift in the air in just seconds, internally routed and rarely showing signs of wear.
Adjustable height locking positions
Multiple locking levels on every car lift we make keep you as comfortable as possible.
Secondary lock system
BendPak's cable slack detection acts as a secondary lock system, engaging instantly when slack exceeds operating parameters.

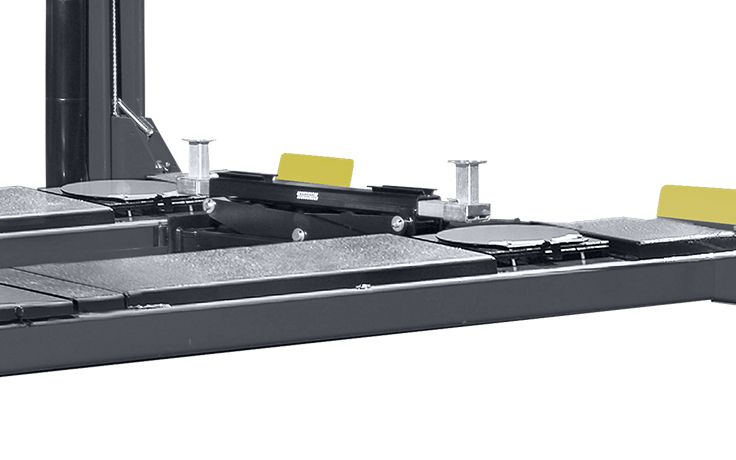

Rolling bridge jacks
Turn your alignment lift into a multi-purpose tool for tire changes and brake service, engaging vehicle frames and lifting vehicles off the runways.
Specifications
| Lifting Capacity | 18,000 lbs. (8,165 kg) |
| Max Capacity / Front Axle | 9,000 lbs. (4,082 kg) |
| Max Capacity / Rear Axle | 9,000 lbs. (4,082 kg) |
| A - Min. Runway Height | 11.5" (292 mm) |
| B - Max. Rise | 59" (1,499 mm) |
| C - Max. Lifting Height | 71.75" (1,822 mm) |
| Time to Full Rise | 75 seconds |
| D - Overall Width | 153.5" (3,899 mm) |
| E - Outside Length | 257" (6,528 mm) |
| F - Overall Length | 312.75" (7,944 mm) |
| G - Height of Columns | 91.25" (2,318 mm) |
| H - Width Between Columns | 133.5" (3,391 mm) |
| I - Drive-Thru Clearance | 109" (2,769 mm) |
| J - Runway Width | 22" (559 mm) |
| K - Length of Runways | 257.5" (6,541 mm) |
| L - Width Between Runways | 40" (1,016 mm) or 45.5" (1,156 mm) |
| M - Min. 4-Wheel Alignment | 83" (2,108 mm) |
| N - Max. 4-Wheel Alignment | 138" (3,505 mm) |
| O - Max. 2-Wheel Alignment | 211" (5,359 mm) |
| Rated Capacity | 185" (4,699 mm) |
| 75% Capacity | 160" (4,064 mm) |
| 50% Capacity | 135" (3,429 mm) |
| 25% Capacity | 110" (2,794 mm) |
| Locking Positions | 13 |
| Lock Spacing | 4" |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
