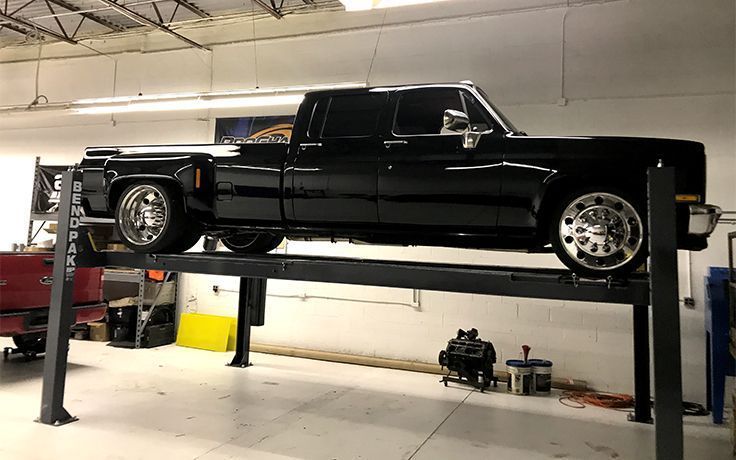

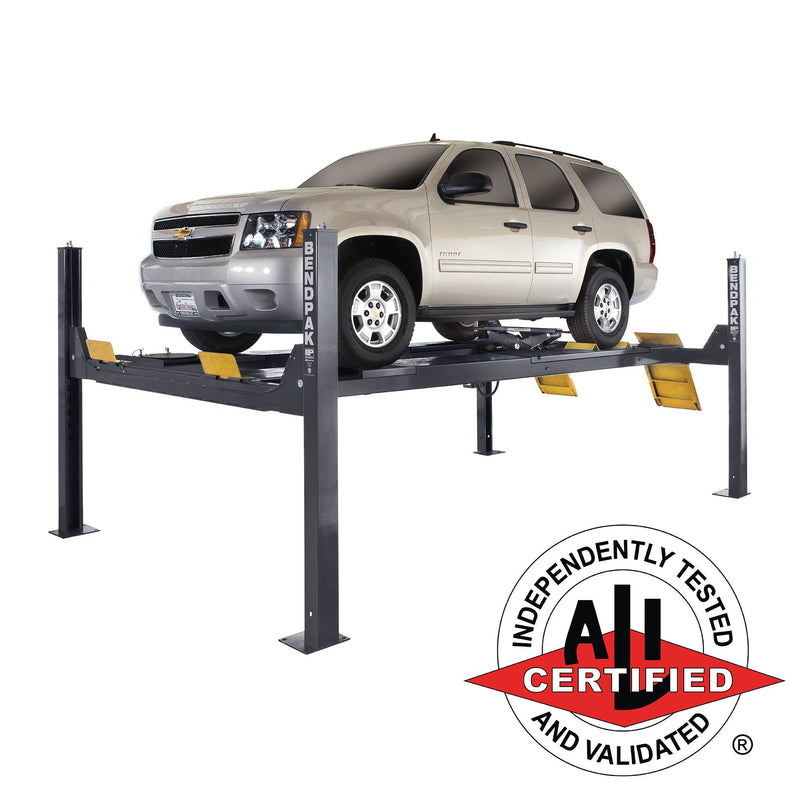

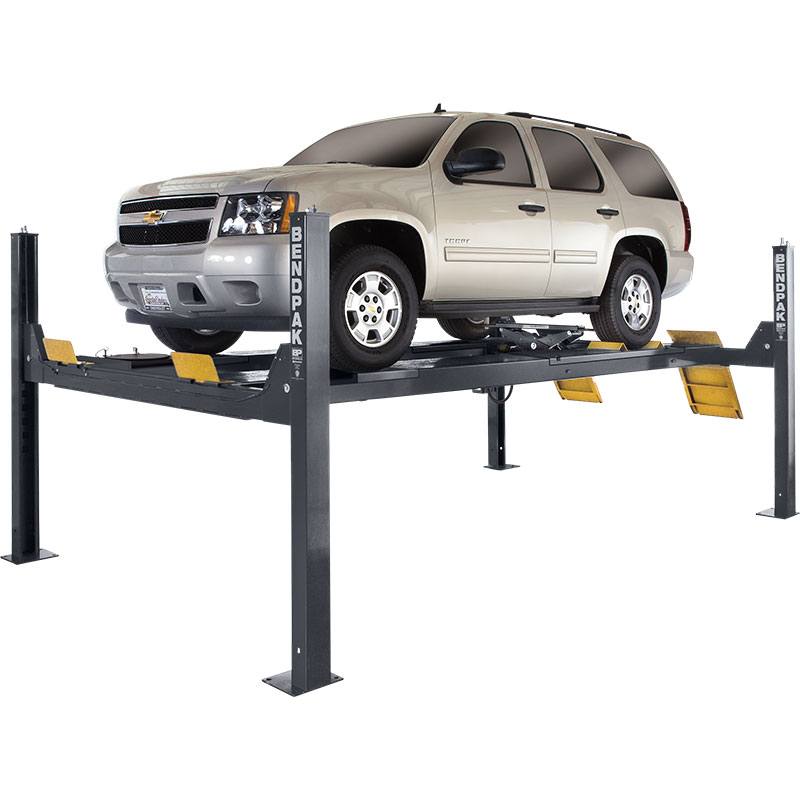

BendPak HDS-14LSXE Extended 4-Post Alignment Lift - 14,000-lb. Capacity
Extended-Length Alignment Lift Offers 14,000 lbs. of Power
This model is essential for hundreds, if not thousands, of shops across the country. With a 14,000-lb. capacity, the HDS-14SLXE lifts virtually all residential vehicles, from sedans to heavy-duty pick-up trucks to municipal vehicles and farming equipment.

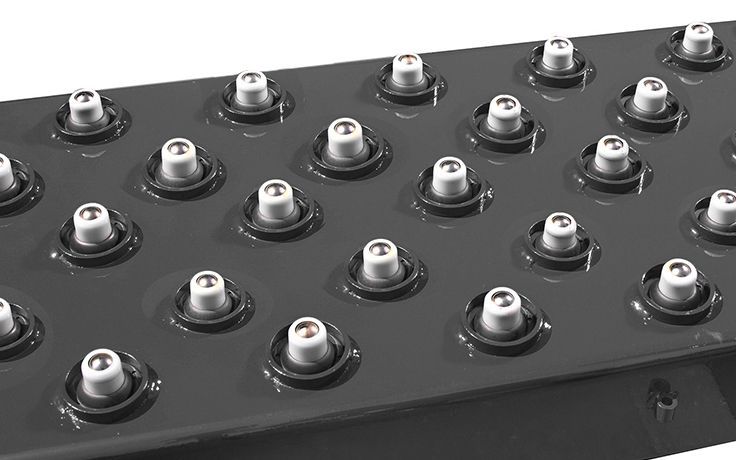

Slip plates
Turn plates in the front and multi-caster slip plates in the back allow for perfectly precise, free-floating alignments.

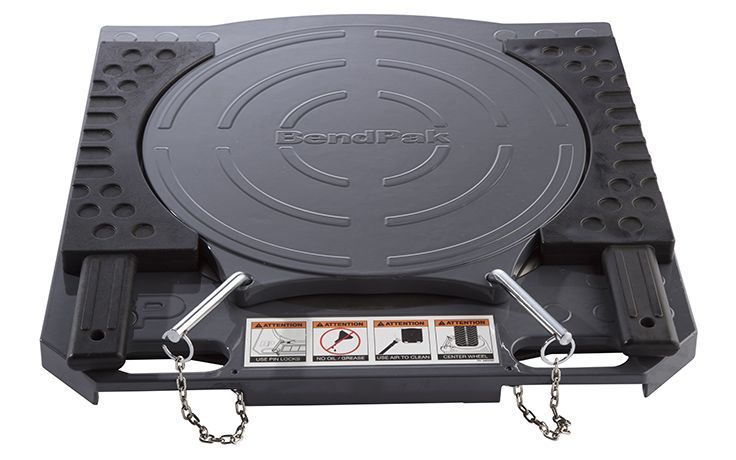

Deluxe Turnplates
Aluminum-alloy construction turn plates are easily positioned using BendPak's turn plate pockets, featuring dual "popsicle gap stops" for your convenience.
Dual-hub cable sheaves
Massive 10.5” diameter cable sheaves are held within the runway cross tubes, outfitted with 2.25” diameter sheave axles that are equally durable.
Heavy-duty aircraft cable
A 1/2” diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each column, extremely resistant to rubbing and other abrasions.
Adjustable height locking positions
Every few inches, a convenient built-in safety lock will let the runways auto-engage into the post.
Secondary lock system
A slack-cable lock system serves as a backup safety mechanism that's ready at all times to shut off the alignment lift in the development of dangerous cable slack.
Rolling bridge jacks
Convert your four-post into a fully functional wheel service lift. Optional rolling jacks make a great addition and increase service capacity.
Specifications
| Lifting Capacity | 14,000 lbs. (6,350 kg) |
| Max Capacity / Front Axle | 7,000 lbs. (3,175 kg) |
| Max Capacity / Rear Axle | 7,000 lbs. (3,175 kg) |
| A - Min. Runway Height | 7.5" (191 mm) |
| B - Max. Rise | 70.75" (1,799 mm) |
| C - Max. Lifting Height | 77.5" (1,970 mm) |
| Time to Full Rise | 60 seconds |
| D - Overall Width | 130" (3,302 mm) |
| E - Outside Length | 243" (6,170 mm) |
| F - Overall Length | 272" (6,908 mm) |
| G - Height of Columns | 92" (2,338 mm) |
| H - Width Between Columns | 120" (3,050 mm) |
| I - Drive-Thru Clearance | 98" (2,489 mm) |
| J - Runway Width | 20" (508 mm) |
| K - Length of Runways | 227.5" (5,778 mm) |
| L - Width Between Runways | 34.5" (876 mm) or 41.5" (1,054 mm) |
| M - Min. 4-Wheel Alignment | 89" (2,261 mm) |
| N - Max. 4-Wheel Alignment | 156" (3,962 mm) |
| O - Max. 2-Wheel Alignment | 212" (5,385 mm) |
| Rated Capacity | 165" (4,191 mm) |
| 75% Capacity | 140" (3,556 mm) |
| 50% Capacity | 115" (2,921 mm) |
| 25% Capacity | 95" (2,413 mm) |
| Locking Positions | 15 |
| Lock Spacing | 4" |
| Motor | 220 VAC / 60 Hz / 1 Ph |
| Noise | 45 dB |
