MADE IN THE USA
Authorized Dealer
We are an authorized dealer for all Merchant 1 Manufacturing (M1M) products.
Description
A stand-alone filter bank designed for exhaust/extraction of fumes and/or generating negative pressure within a room or building. Built to order in custom sizes.
- US-manufactured, built in Reidsville, NC
- Designed for simplicity, quick assembly, and extended service
- 18-gauge G-90 galvanized steel
- Certified sub-components (fan/motor, filters)
- Fan/motor size varies by application; paint and powder applications require explosion-proof motors

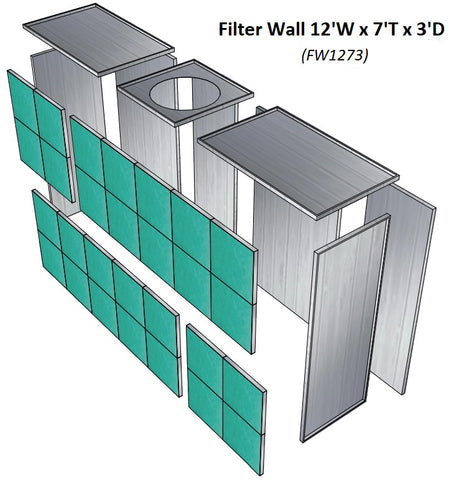

Filter Wall / Exhaust Box (Shown: FW1273)
| Model Number | FW1273 (shown) |
| Inside Dimensions | 11'8" W x 6'10" T x 2'9" D |
| Outside Dimensions | 12' W x 7' T x 3' D |
| Construction | 18 Gauge G-90 Galvanized Steel |
| Exhaust System | 24" tubeaxial fan; 2HP 3-phase; 8,250 CFM @ 1/2" S.P. |
| Filtration | 20"x20" intake & exhaust filter pads |
Available Sizes
| FW443 | 4' W x 4' T x 3' D |

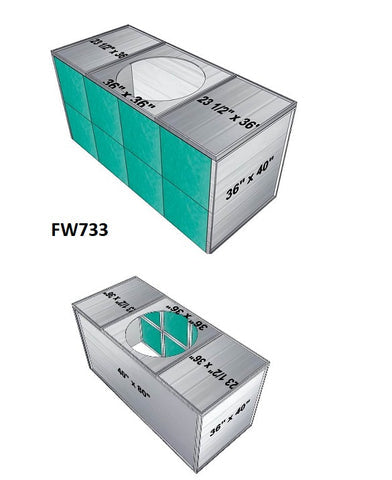

| FW733 | 6'8" W x 3' T x 3' D |
| FW683 | 6' W x 8' T x 3' D |

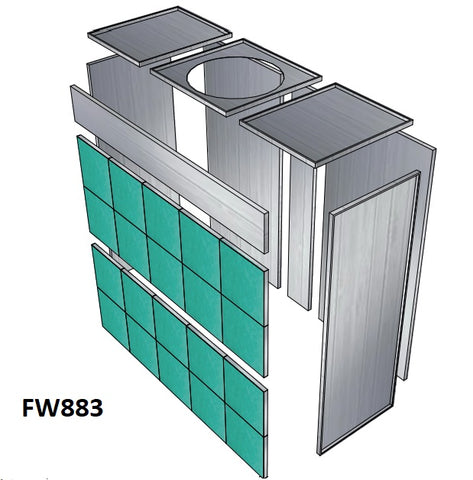

| FW883 | 8' W x 8' T x 3' D |
| FW1093 | 10' W x 9' T x 3' D |
| FW1273 | 12' W x 7' T x 3' D |

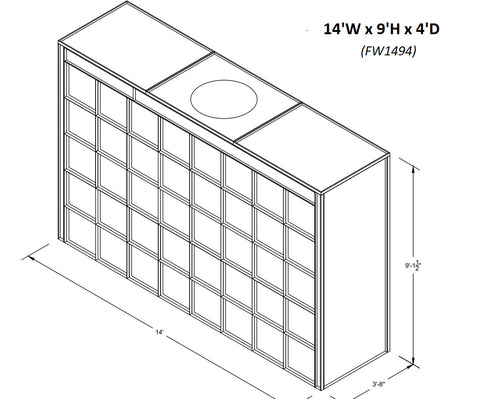

| FW1494 | 14' W x 9' T x 4' D |
| FW1694 | 16' W x 9' T x 3' D |
| FW2094 | 20' W x 9' T x 3' D |
