Falcon 9,000 lb 4-Post Portable Parking Storage Service Car Lift (Extra Long/Wide) AP-9H-XLT

SKU AP-9H-XLT
Original price $3,795.00 - Original price $3,795.00
Original price
$3,795.00
$3,795.00 - $3,795.00
Current price $3,795.00
$3,795.00
Request a quote
Equipment Delivery Options

At Wholesale Lifts, our commitment is to provide you with the best customer service. We offer you various delivery options so that you can choose the one that best fits your needs.

I have the equipment to unload my order

Do you have a forklift, a high-capacity hoist, or a tractor in your facility? In that case, this option may be the one for you.

What to keep in mind when choosing this option:

  • The most popular 2-post lifts (with 9,000 lb and 10,000 lb capacity) have a shipping weight of approximately 1,400 lbs and 1,900 lbs, respectively. On the other hand, a 15,000 lb capacity 2-post lift has a 2,700 lb shipping weight.
  • Given the packaged lift and hydraulic power unit’s weight, they cannot be unloaded from the trailer by hand. Simply put, IT IS MANDATORY TO USE A SUITABLE FORKLIFT OR HOIST FOR UNLOADING THE LIFT.
  • You are solely responsible for unloading your equipment from the truck. The truck driver cannot do this for you.
  • Wholesale Lifts uses trustworthy freight companies to make the deliveries. It is your responsibility to be present on the scheduled date and time of the delivery.
  • There will be a receiver charge, which varies by carrier (typically $100+), if the truck driver arrives at the designated location and the customer does not have the necessary means ready to unload the lift.

In case you do not have the necessary equipment to unload the equipment do not worry. Wholesale Lifts offers other delivery options.


Pick up at one of our warehouses

Do you have a hitch trailer to transport your lift? If so, then this might be the best option.

What to keep in mind when choosing this option:

  • Wholesale Lifts and our brands’ warehouses have the means to load your car lift into an appropriate trailer.
  • Given the weight and dimensions of car lifts, we cannot load lifts directly into vehicles or trucks. To safely transport your lift, you will need a hitch trailer.

Will this option not work for you? Perhaps the warehouse is too far from your location? If so, keep reading.


Dock Hold from LTL Carrier

Think of this option as a variation of the previous one. Even so, this could be an excellent alternative to picking up the lift at one of our warehouses. Instead, we can take the car lift to a warehouse closer to your location.

You will still need a hitch trailer to transport the lift for this option, but you can save on freight costs if you have an LTL Carrier close to your shop.


Ship directly to a local installer

Neither of the above delivery options suits you? Then we have the solution.

We will dispatch your lifts directly to a local installer in your area. This way, you will not have to worry about anything since the installer would be in charge of the logistics.

What to keep in mind when choosing this option:

  • You still have to pay the freight fee to the installer (or dock hold for the installer to pick up the lift)
  • We will quote the installation fee before you pay for the lift so that you can get an idea of the total amount to pay (car lift + freight + installation)

Do you have another delivery option in mind? In that case, do not hesitate to contact us. At Wholesale Lifts, we are open to all kinds of solutions, as long as they comply with the relevant local regulations and safety standards.

Returns & Refunds

CANCELLATIONS

We incur many costs when processing and shipping orders. If the order is canceled before the item has shipped, but after payment has been processed, we will credit the customer minus a 3% merchant processing fee. This is a fee that merchant accounts charge on every transaction and is non-refundable. Customers will be charged for shipping costs for any orders that are canceled after the item has already shipped, but not yet received by the customer. They may also be responsible for a restocking fee.

RETURNS

Our limited return policy allows you to return defective or incorrectly shipped merchandise. All returned merchandise requires a prior authorization from Wholesale Lifts, LLC. Contact our customer service representatives first for shipping instructions and to obtain a return authorization number. Any unauthorized returns will be refused and will become the responsibility of the customer and credit will not be issued unless authorization to return merchandise has been received. For all merchandise returned to Wholesale Lifts, LLC for reasons other than defective or incorrectly shipped items, a 25% restocking fee and return shipping costs (transportation costs) will be deducted from the credit refund. Any and all returned items should be approved through Wholesale Lifts, LLC Customer Service. All returned items must be in their original box or crating and must include all packing material, manuals, and all accessories. All returns must have the R.G.A. number written on the outside of the carton. At our discretion, an additional restocking fee may be charged if your product is opened or is not returned in its original condition, box, or is missing packing material, manuals, or any accessories. Damaged items will be repaired at the expense of the customer.

ADDITIONAL WARRANTY INFO

For all warranty considerations, the original manufacturer will supply replacement parts only during the warranty period. The original purchaser is responsible for all shipping, handling, and any labor charges incurred. Hydraulic/Pneumatic cylinders may qualify for exchange under warranty if reported within the first 30 days from date of sale. After the first 30 days from date of sale, a seal kit and installation instructions will be sent for cylinder repairs. All defective parts must be returned to the original manufacturer for inspection and examination. Any parts that are found to be defective will be replaced or repaired to proper working order. Other items not listed above may be considered general wear parts and therefore, will not be covered under warranty. These warranties do not extend to defects caused by ordinary wear, abuse, misuse, shipping damage, improper installation, voltage or lack of required maintenance. Wholesale Lifts, LLC is not to be held responsible for any failure that results from an accident, purchaser/operator abuse, neglect, or failure to operate products in accordance with instructions provided in the owner’s manual(s) supplied. Damage caused by rain, excessive humidity, corrosive environments or other contaminants are not covered under warranty. THESE WARRANTIES DO NOT EXTEND TO ANY COSMETIC DEFECT NOT INTERFERING WITH EQUIPMENT FUNCTIONALITY OR ANY INCIDENTAL, INDIRECT, OR CONSEQUENTIAL LOSS, DAMAGE, OR EXPENSE THAT MAY RESULT FROM ANY DEFECT, FAILURE OR MALFUNCTION OF A WHOLESALE LIFTS, LLC PRODUCT OR THE BREACH OR DELAY IN PERFORMANCE OF THE WARRANTY.

Description

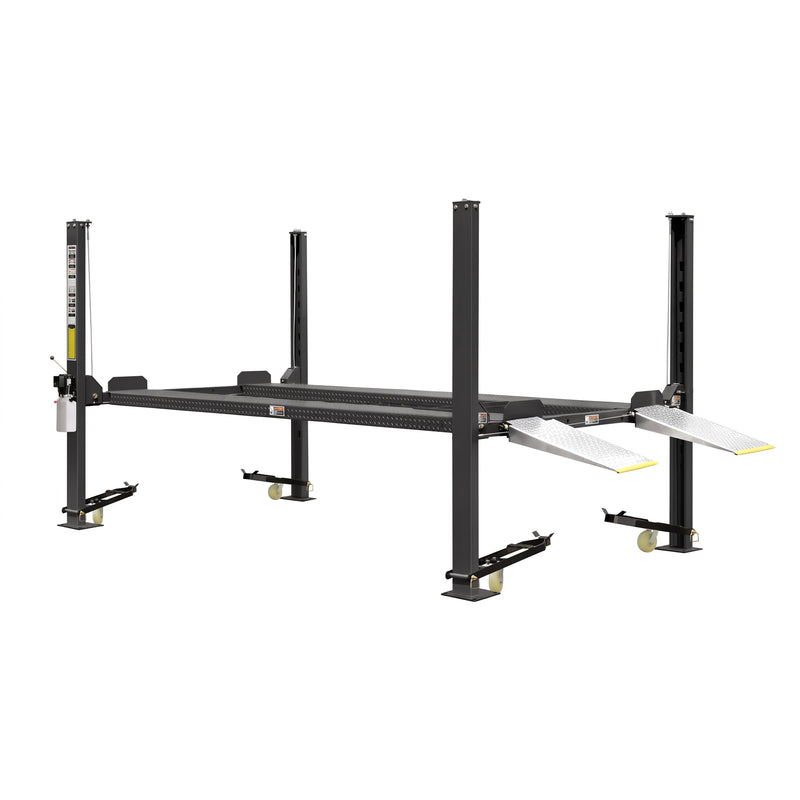

The Wholesale Lifts Falcon AP-9H-XLT 4-post car lift (auto hoist) is the extra long and extra wide version of the AP-9H portable parking and storage lift, with a 9,000 lb capacity. The design of this lift has been proven for 30 years. It is built with high-quality materials and workmanship and features a powder coat finish for superior corrosion resistance. The AP-9H-XLT is 199"L x 118"W x 98"H overall with a 98" drive-through width.

⚠ Safety & Installation Requirements

Install only on level, reinforced concrete at least 4" thick. Follow the installation instructions supplied with the lift and never exceed the rated 9,000 lb capacity. Always lower the lift onto its safety locks before working underneath or storing a vehicle above.

Key Features

  • Secondary Slack-Cable Lock System — A secondary slack-cable lock system provides fail-safe protection.
  • Dedicated Hydraulic Return Line — Dedicated hydraulic return line for smoother operation.
  • Caster Kit Included — Caster kit with polyurethane wheels lets you move the lift around the garage and can be installed or removed in minutes.
  • Jack Tray and Drip Trays — Includes a jack tray plus four drip trays, and two removable aluminum approach ramps.
  • 110V Power Unit — High-efficiency 110V 1.5HP hydraulic power unit with an 8 ft power cord and plug.
  • Tested Structure and Hydraulics — CE-certified lift structure and hydraulic system, third-party tested for 115% dynamic load capacity and 150% static load capacity.
  • Heavy-Duty Cables — 3/8" diameter cables reduce stress on the synchronization system and increase cable life.
  • Corrosion-Resistant Finish — Powder coated finish with superior corrosion resistance.
  • Optional Jack — ABJ-40 air-operated bridge jack.

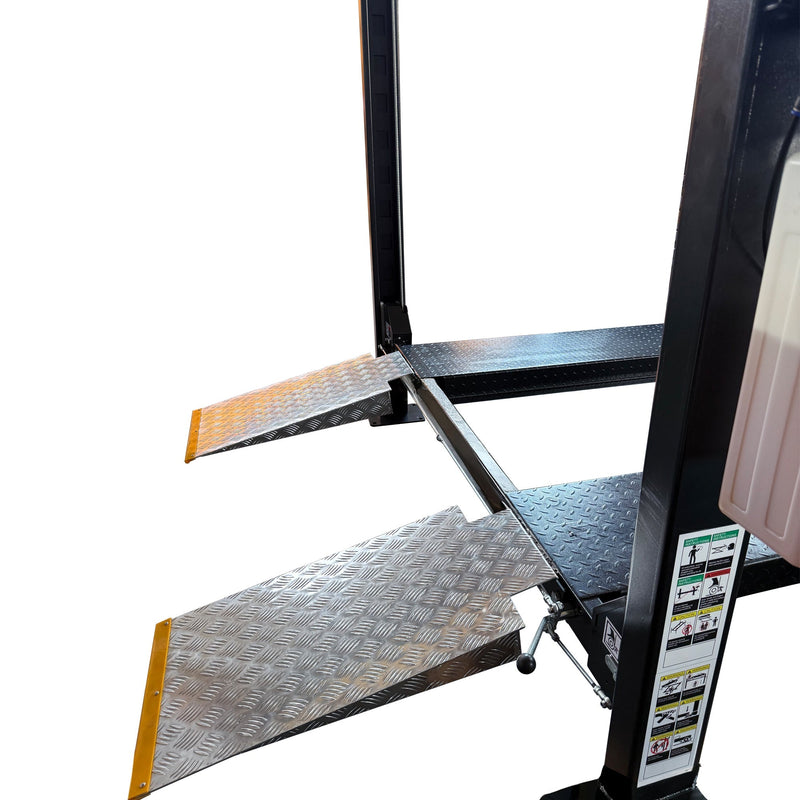

AP-9H-XLT aluminum ramps

Approach Ramps

Two removable aluminum approach ramps.

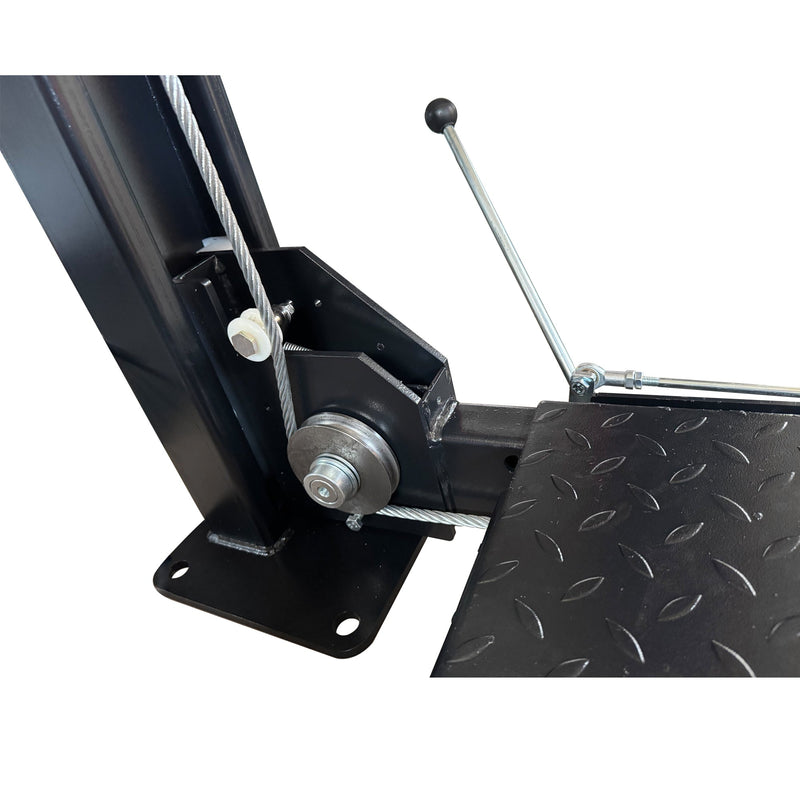

AP-9H-XLT secondary lock

Secondary Lock

Slack-cable lock system for fail-safe protection.

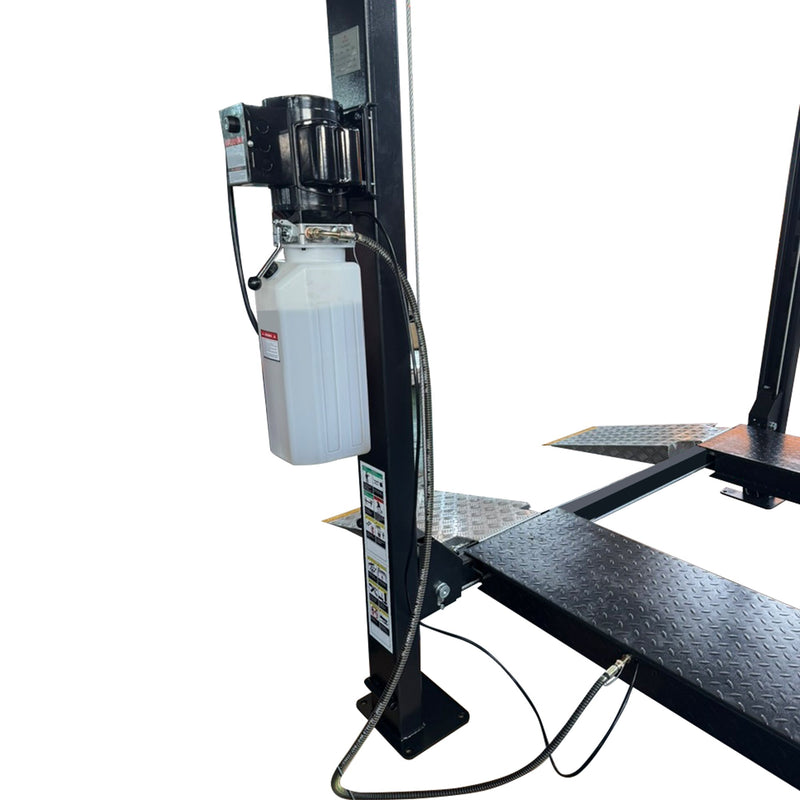

AP-9H-XLT hydraulic hoses

Hydraulic Hoses

Dedicated hydraulic return line.

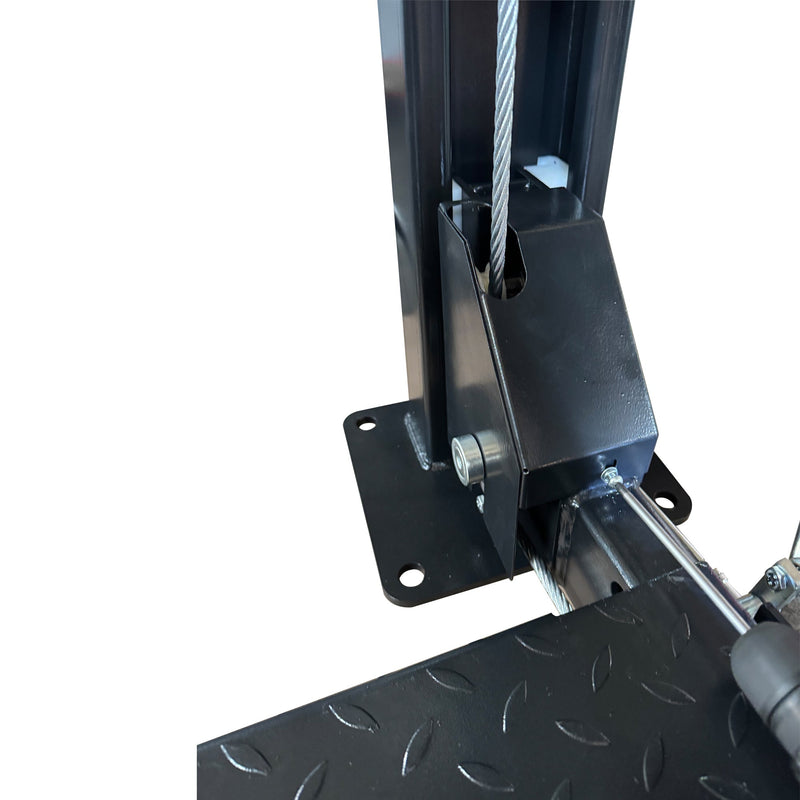

AP-9H-XLT thicker cylinder rod

Cylinder Rod

Hydraulic cylinder rod detail.

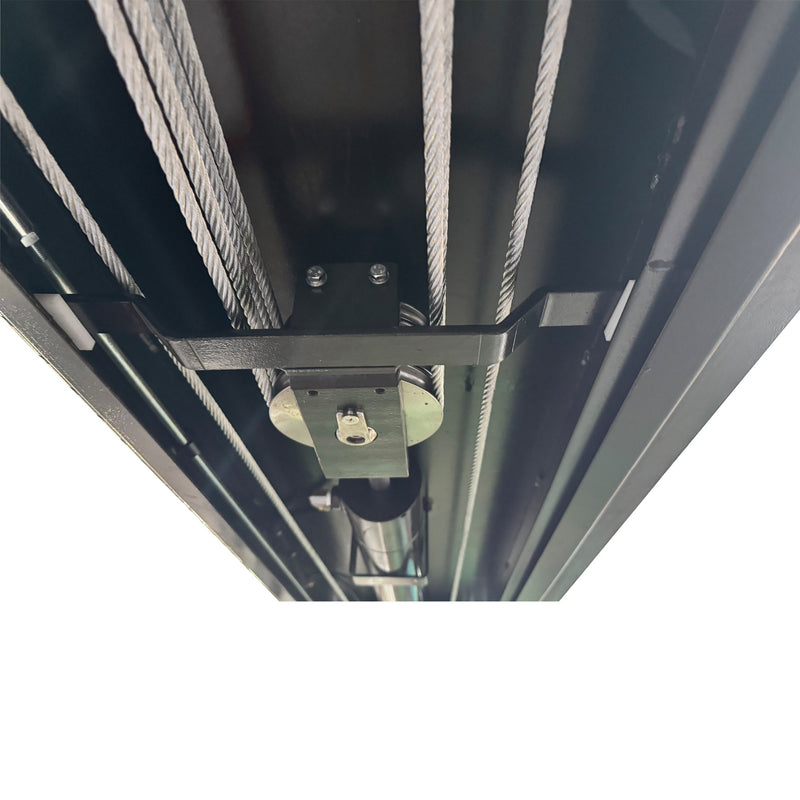

AP-9H-XLT cylinder and cables

Cylinder and Cables

Heavy-duty 3/8" cables.

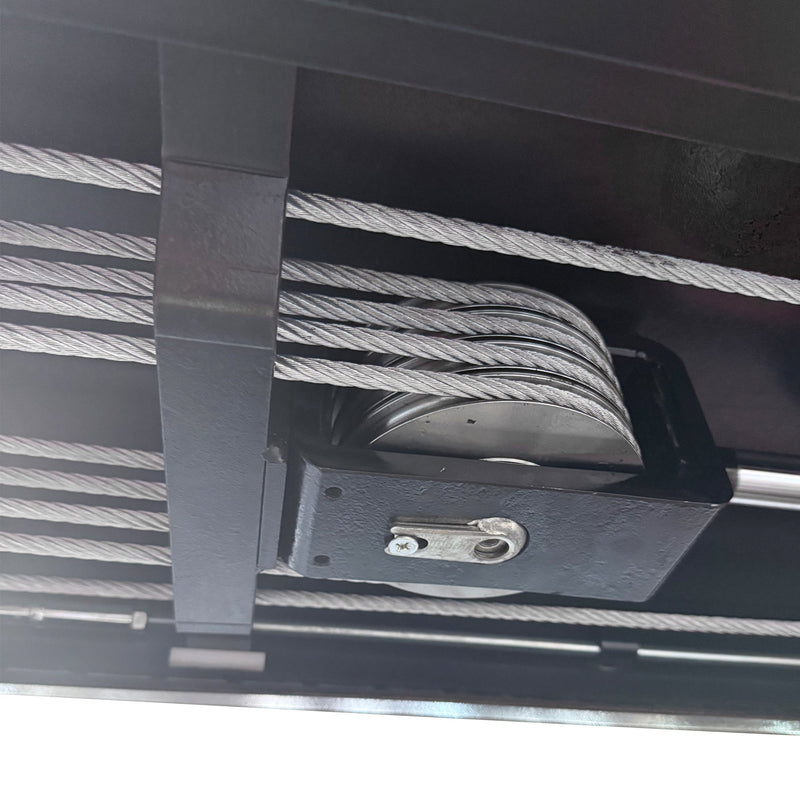

AP-9H-XLT hydraulic cylinder

Hydraulic Cylinder

Powers the lift with the 110V unit.

Specifications

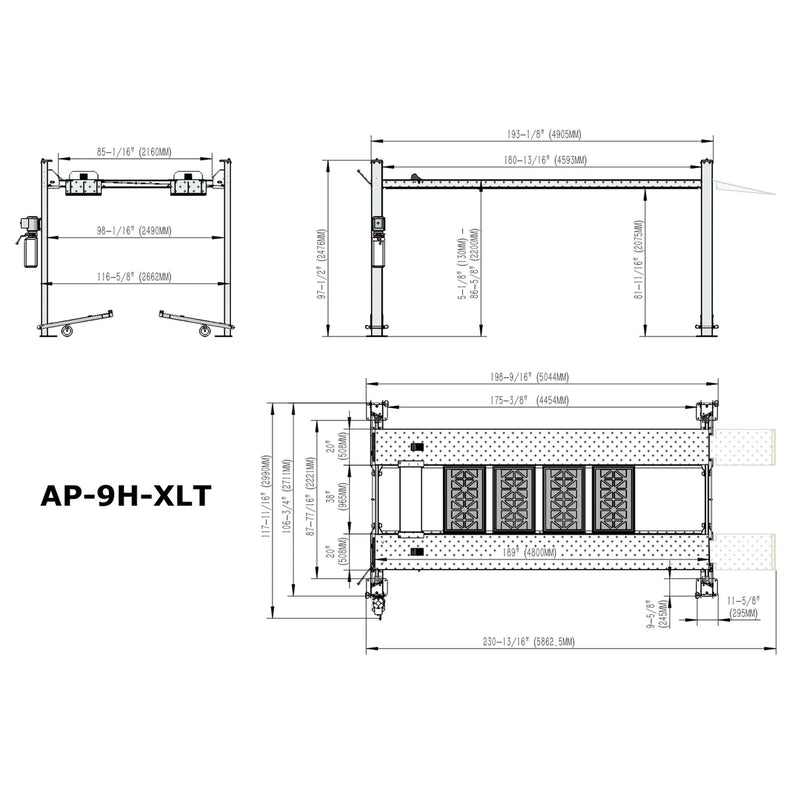

AP-9H-XLT dimensions diagram

Model AP-9H-XLT — 9,000 lb 4-Post Parking/Storage/Service Lift
Usage Parking / Storage / Service
Lifting Capacity 9,000 lbs
Dimensions
Overall Length 199"
Overall Width 118"
Overall Height 98"
Drive Through Width 98"
Lifting Height 86"
Clearance Under Runway 81"
Runway Size 189"L x 20"W
Width Between Runways 38" inside-inside, 78" outside-outside
Runway Gauge Steel 6 (1/4")
Column Cross Section 6 5/32"L x 3 3/8"W
Removable Approach Ramps 36 13/16"L x 19 1/2"W
Lock Positions 11 positions
Power & Performance
Lifting Time 50 seconds
Motor 110V Single Phase 1.5HP 10A (recommend a 20A breaker)
Power Cord 8 ft with plug
Hydraulic Oil 3-5 gallons AW32/AW46 (not included)
Cable Heavy-duty 3/8" diameter cables
Finish Powder coated finish with superior corrosion resistance
Shipping & Installation
Shipping Weight 2,000 LB

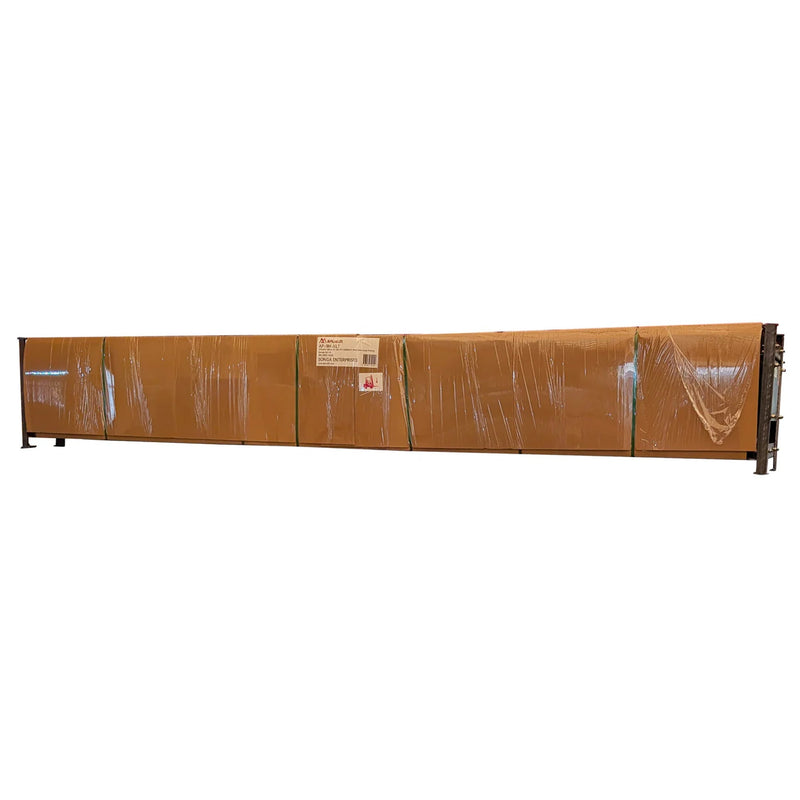

Shipping Package Size 194"L x 22"W x 30"H
Concrete Thickness 4"
Parts Included Caster kit, jack tray, 4 drip trays, and 2 removable approach ramps
Optional Jack ABJ-40 air-operated bridge jack

Pickup Locations: Tacoma, WA; Tualatin, OR; Chicago, IL; North Kansas City, MO; Grand Prairie, TX; Chickasaw, AL; Mansfield, OH; Rock Hill, SC; Jacksonville, FL. Locations subject to change and not all products are at all locations, please contact us for the most updated information.
