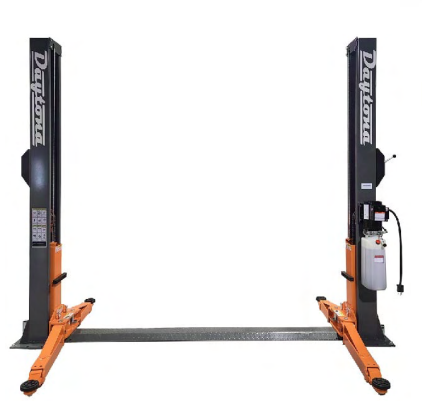

Daytona LTPF12 12,000 LBS 2 post Floorplate Lift
Authorized Dealer
We are an authorized dealer for all DAYTONA branded products.
Heavy-Duty Low-Clearance Lift
12,000 lbs Capacity • Floorplate Design • Dual Chain Drive
The Daytona LTPF12 is a robust 12,000 lb 2 post floorplate lift built for heavy-duty truck and automotive servicing in shops with lower ceiling clearances. With automatic safety locks, single-point release, and dual chain-drive hydraulic cylinders, it delivers reliable professional-grade performance.
- Automatic safety locks with single-point lock release system
- Dual chain-drive hydraulic cylinders for balanced lifting
- Three-stage front arms with screw-up pads and truck adapters
- 12,000 lbs lifting capacity for heavy-duty vehicles.
- Automatic safety locks with single-point release.
- Dual chain-drive hydraulic cylinders.
- Three-stage front arms with screw-up pads.
- Standard truck adapters included.
- Durable powder-coat finish.
Power Requirements
240V / 3HP / 13A / 1PH / 60Hz
Power Unit
- Motor Box: 31" x 11" x 12"
- Weight: 60 lbs
Dimensions, colors and items are subject to change without prior notice due to our continuous improvement program.
| Specification | Measurement |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Overall Height | 114.0" |
| Overall Width | 146.1" |
| Lifting Height | 4.33" ~ 74.80" |
| Shipping Weight (Lift) | 2,200 lbs |
| Power Unit Weight | 60 lbs |
| Power Unit Motor Box | 31" x 11" x 12" |
Heavy-Duty Performance in Compact Spaces
The Daytona LTPF12 is ideal for shops servicing heavy pickups, work vans, and commercial vehicles where ceiling height is a concern. The floorplate design removes the overhead crossbar so you can install a full 12,000 lb lift under lower clearances. Looking for a lighter-duty option? Compare the LTPF9 9,000 lb 2 post floorplate lift, or explore our range of alignment lifts for precision wheel service.
Commercial Fleet Service
Reliable 12,000 lb capacity for heavy-duty fleet and commercial vehicle maintenance.
Low-Ceiling Shops
Floorplate design allows installation in facilities with height restrictions and no overhead crossbar.
