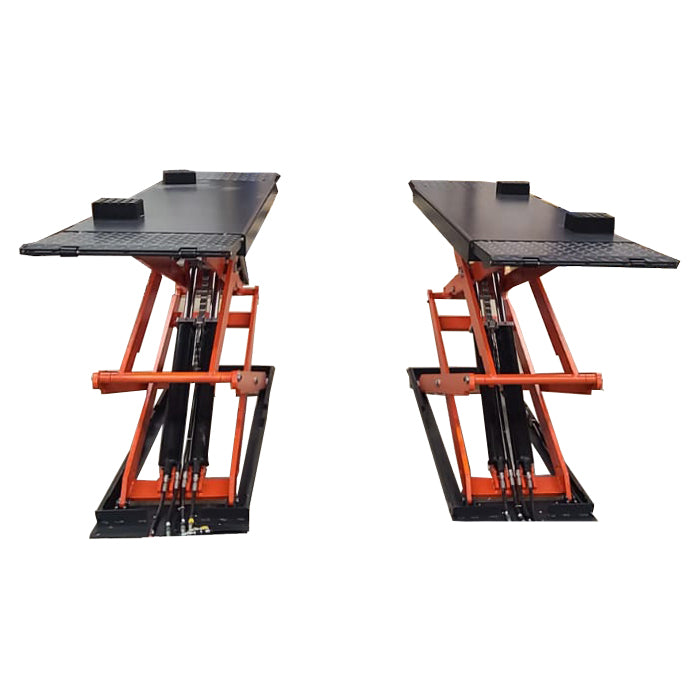

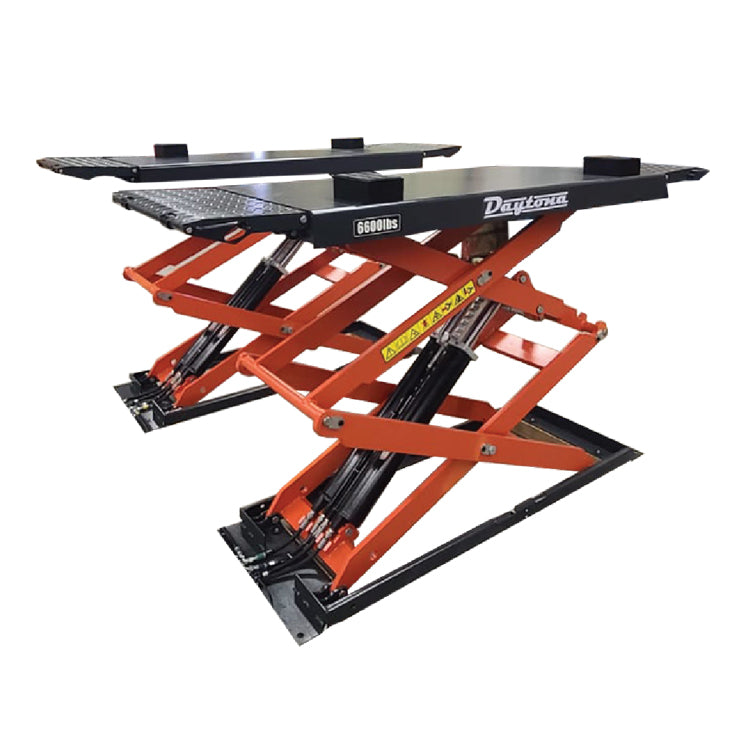

Daytona LHS7 6,600lb High Rise Scissor Lift
by DAYTONA
SKU LHS7
Save $950.00
Original price
$4,980.00
Original price
$4,980.00
-
Original price
$4,980.00
Original price
$4,980.00
Current price
$4,030.00
$4,030.00
-
$4,030.00
Current price
$4,030.00
Authorized Dealer
We are an authorized dealer for all DAYTONA branded products.
6,600 lbs Capacity • Low Profile Design • Double Hydraulic Equalizing
The LHS7 is a premium, space-saving high-rise scissor lift engineered for professional tire shops and home garages. Featuring a robust double hydraulic equalizing system and a low-profile 5-inch lowered height, it delivers exceptional reliability and safety.
- Double hydraulic equalizing system for balanced lifting
- Pneumatic actuated safety lock for secure operation
- Approach ramps double as platform length extensions
- Low profile 5″ lowered height for easy vehicle access
Features
- Double hydraulic equalizing system for balanced lifting.
- Solid steel construction ensures strength and safety.
- Pneumatic actuated safety lock for secure operation.
- Approach ramps double as platform length extensions.
- Low profile design with lowered height of just 5″.
- Included controls and power unit inside the control station.
Specs
Power Requirements
240V / 3HP / 12Amp / 1 PH / 60Hz
Performance
- Lifting Capacity: 6,600 lbs
- Rise Time: 1 Minute
| Specification | Measurement |
|---|---|
| Max Height | 74.5″ |
| Max Locking Height | 71.0″ |
| Lowered Height | 4.5″ – 5.0″ |
| Platform Dimensions | 59″ x 25″ (Platform Only) |
| Platform w/ Ramps | 83″ x 25″ |
| Shipping Weight (Lift) | 1,700 lbs |
FAQ
What are the power requirements for the LHS7?
The LHS7 requires a 240V, 3HP, 12Amp, 1 Phase, 60Hz power supply.
What is the maximum lifting height?
The maximum lifting height is 74.5 inches, with a mechanical locking height of 71.0 inches.
