BendPak PL-6000DCX - 6,000 lb. Capacity / Two-Post Parking Lift / Shared Columns / Wide
by BendPak
SKU 5175625
Original price
$10,895.00
-
Original price
$10,895.00
Original price
$10,895.00
$10,895.00
-
$10,895.00
Current price
$10,895.00
The BendPak PL-6000DCX dual-column parking lift has been engineered to handle everything from SUVs and sedans to sports cars. Perfect for both long-term parking on the upper level and short-term parking below, it’s an ideal solution for real estate developers, architects, engineers, automotive dealers, and commercial parking operators. Designed to fit in a standard 8-foot parking space, it accommodates most cars and light trucks, and works seamlessly in both indoor and outdoor locations.
| Lifting Capacity per Platform | 6,000 lbs. (2,700 kg) |
|---|---|
| A) Total Width, Outside Edge to Outside Edge | 112 in. (2,847 mm) |
| B) Lift Platform Length | 157 in. (3,990 mm) |
| C) Post Height | 131 in. (3,320 mm) |
| D) Post, Center to Center Width | 105.5 in. (2,682 mm) |
| E) Post Support Length | 60.25 in. (1,532 mm) |
| F) Lifting Height | 82.5 in. (2,100 mm) |

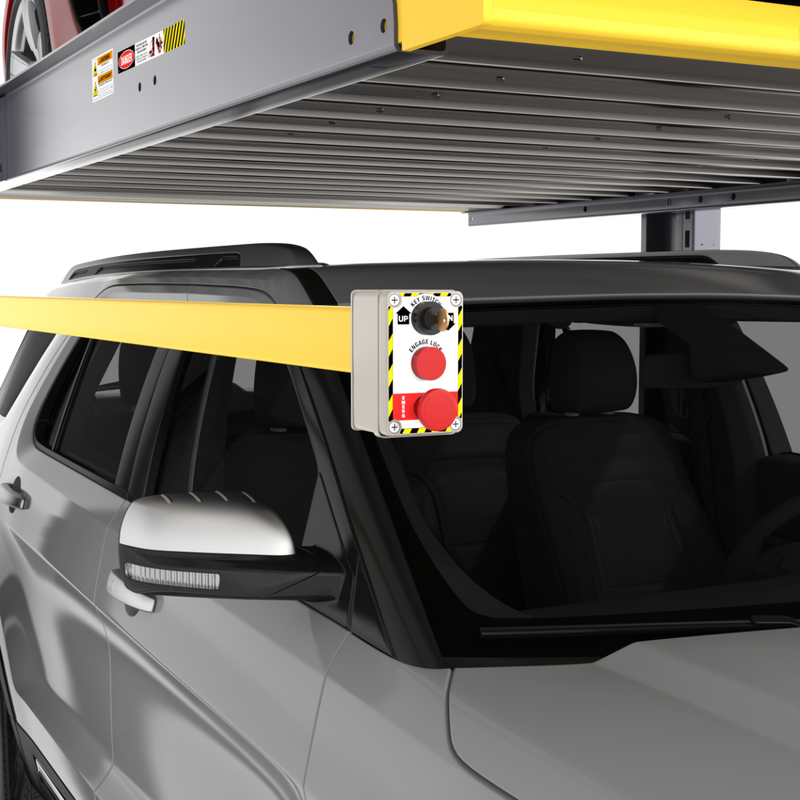

| G) Control Column Height | 71 in. (1,805 mm) |
| H) Lift Platform (Usable Width) | 94.5 in. (2,400 mm) |
| I) Side Clearance Min. | 2 in. (50.75 mm) |
| J) Platform to Support | 36.25 in. (918.25 mm) |
| K) Length Overall | 163.5 in. (4,152.5 mm) |
| Lifting Time | <50 Seconds |
| Motor | 208-240V, 50/60HZ, 1-Ph., 4 HP, 22 Amps |
| Operating Temperature and Humidity | +41° to +104°F / +5° to +40°C 50% RH |
