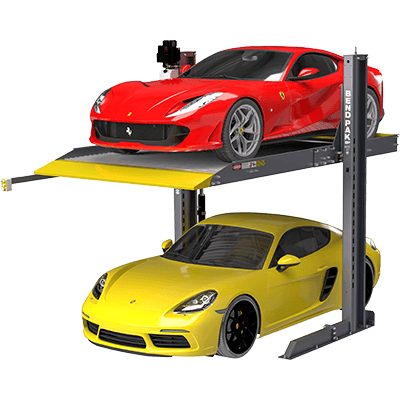

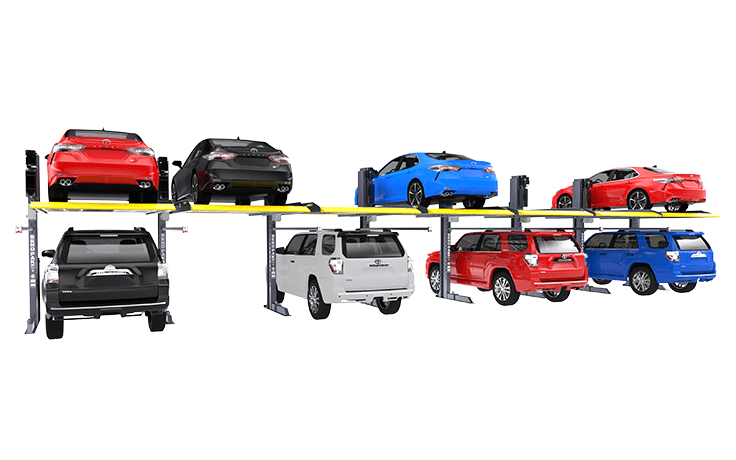

BendPak PL-6000DC - 6,000 lb. Capacity / Two-Post Parking Lift / Shared Columns
by BendPak
SKU 5176260
Original price
$9,995.00
-
Original price
$9,995.00
Original price
$9,995.00
$9,995.00
-
$9,995.00
Current price
$9,995.00

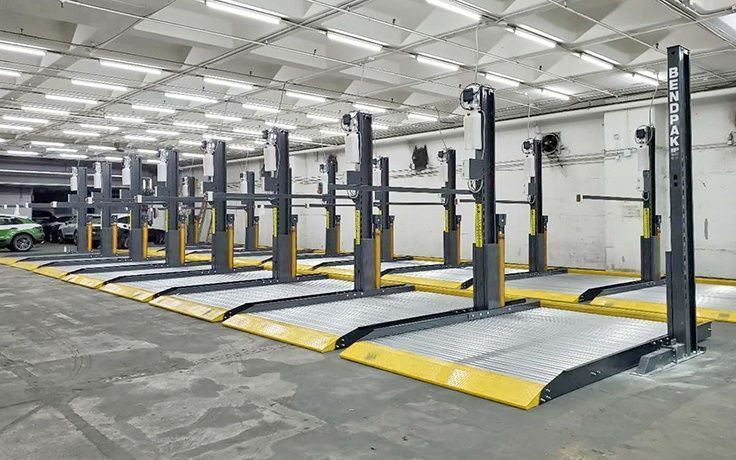

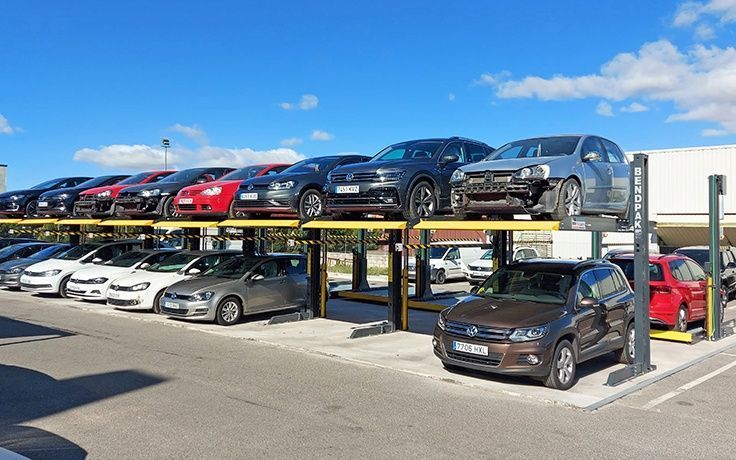

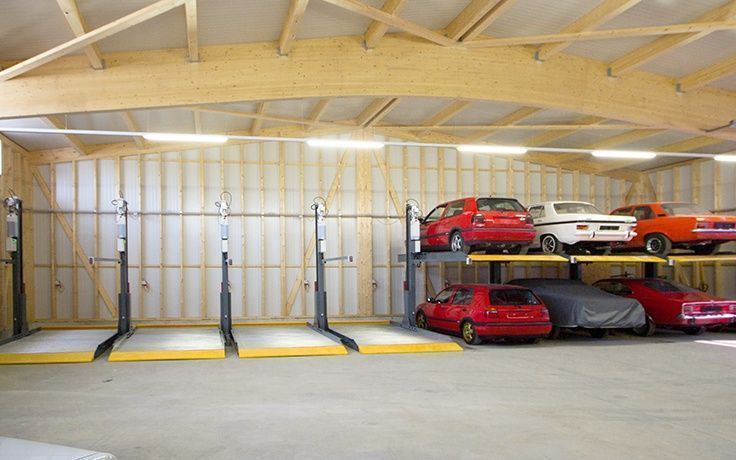

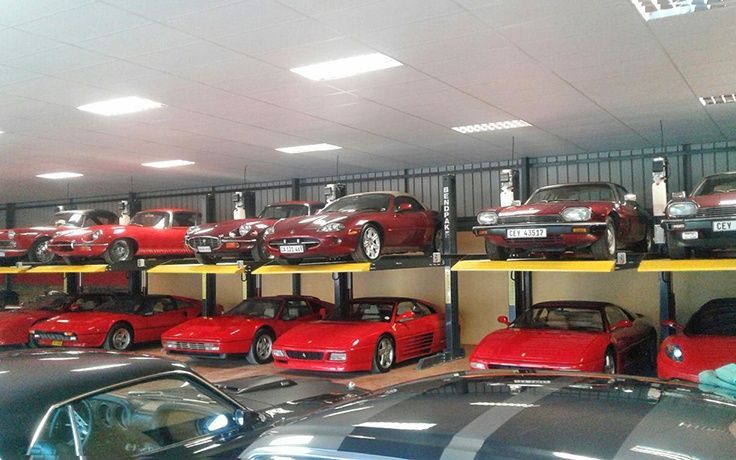

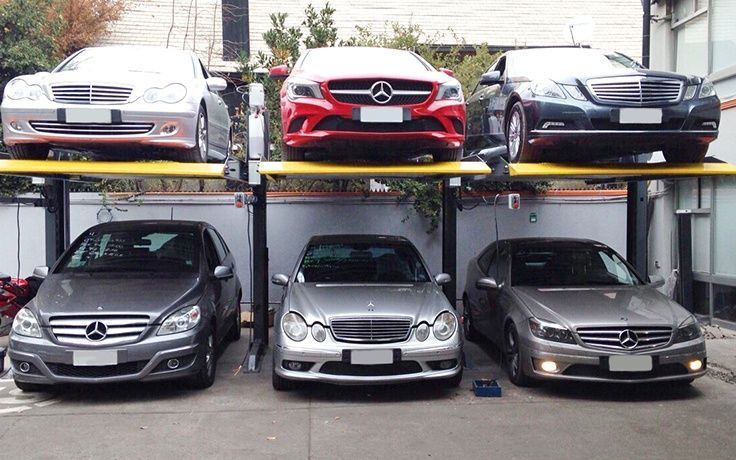

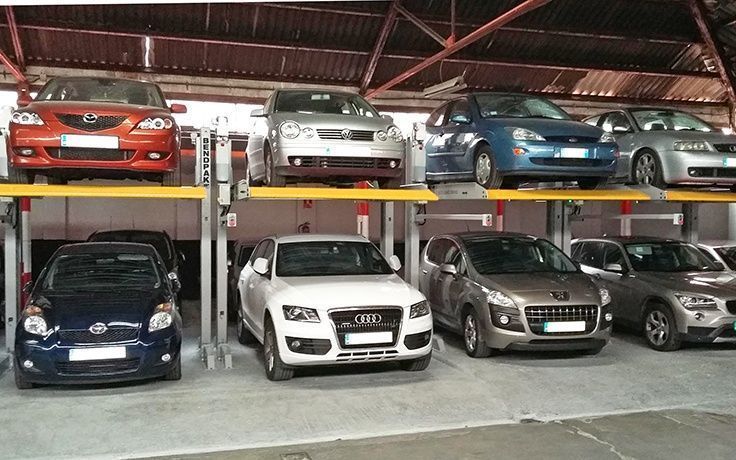

The PL-6000DC dual-column parking lift is designed to accommodate a wide array of vehicles including SUVs, sedans, and sports cars. It offers the perfect combination for both long-term and short-term parking. Typically long-term parking is the upper level and short-term parking below. The PL-6000DC was specifically designed to accommodate the needs of real estate developers, architects, engineers, automotive dealers, and commercial parking operators. The PL-6000DC can be installed inside a typical 8-foot parking space and accommodate most cars and light trucks. They operate in both indoor and outdoor locations.
| Overall Height | 131” (3,327.4mm) Note: does not include the 2.5 in. / 57 mm Max. for Balance Chain Adj. |
|---|---|
| Overall Length | 163.5” (4,152.5 mm) |
| Overall Width | 100.25” (2,547 mm) |
| Lifting Height | 82.5” (2,100 mm) |
| Usable Platform Width | 82.5” (2,100 mm) |
| Platform Length | 157” (3,990 mm) |
| Electrical Required | 110 or 220 VAC 50/60 Hz. Single or Three Phase (specify when ordering) |
| Control Power | 24 VAC |
| Lock Release | Manual Release |
| Power Pack | 2.2kw hydraulic power pump |
| Lifting / Lowering Time | 50 / 45 sec. |
