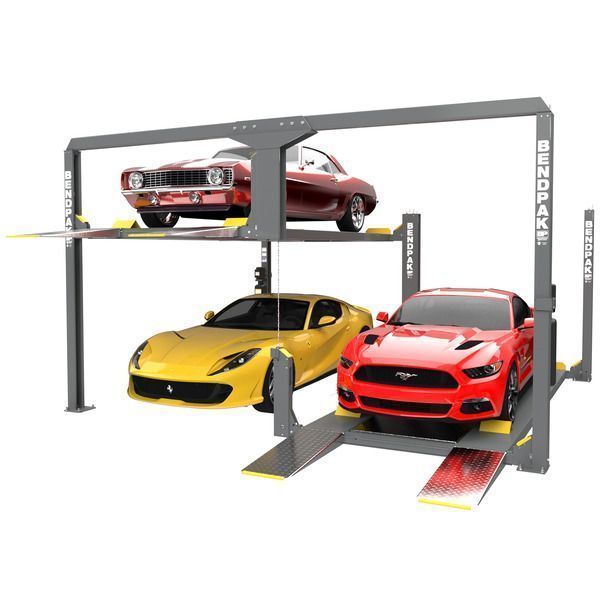

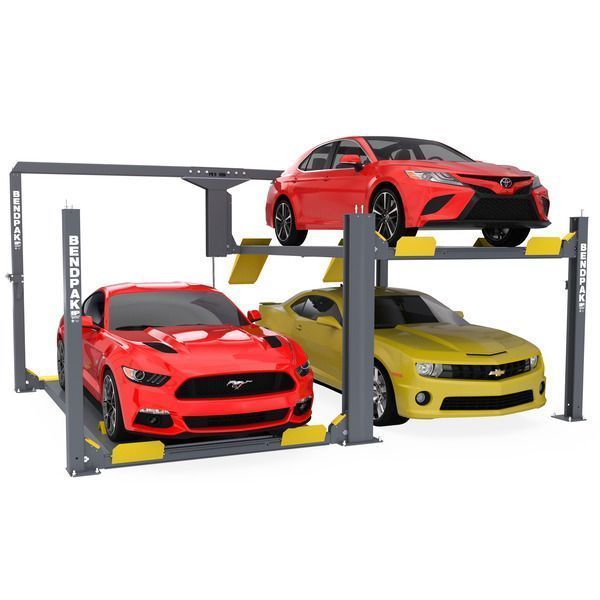

BendPak PL-12000DPS - 12,000 lb. Capacity / Tandem Parking Lift / Independent Platforms / Standard Rise
BendPak’s PL-12000DPS parking lift offers revolutionary vehicle storage solutions for those challenged with owning more cars and trucks than parking spaces to store them. This lift can greatly expand the number of cars in a facility without expanding building space. As the costs of commercial and residential development increase, gaining additional parking spaces in the same usable space provides instant value. These mechanical parking systems are designed to increase parking density and cut costs over traditional parking methods.
Because each platform operates independently, one vehicle can be lowered while the other side remains still. This eliminates the need to “shuffle” vehicles from the half of the lift where vehicles are not being accessed.
| Model | PL-12000DPS |
|---|---|
| Number of Platforms | 2 |
| Load Capacity per Platform | 6,000lbs / 2,722 kg |
| Total Width | 221.5" / 5,620 mm |
| Outside Length | 174" / 4,418 mm |
| Total Length | 218.5" / 5,550 mm |
| Total Height | 118.5" / 3,009 mm |
| Runway Height | 5.00" / 127 mm |
| Maximum Rise | 70.2" / 1,784 mm |
| Width Between Posts | 211" / 5,362 mm |
| Width Between Short & Double Posts | 100.25" / 2,546 mm |
| Width Between Platforms | 29" / 739 mm |
| Width Between Runways | 35" or 41" / 887 or 1,045 mm |
| Runway Length | 159" / 4,039 mm |
| Runway Width | 19" / 482 mm |
| Drive Thru Height | 68.5" / 1,742 mm |
| Drive Thru Width | 85" / 2,161 mm |
| Outside Edge of Runways | 76 or 82" / 1,930 or 2,083 mm |
| Safety Lock Positions* | 6 |
| Lifting Time | ≈45 Seconds |
| Power Unit / Motor** | 220 VAC, 50/60 Hz, 1 Ph |
