Speed up wheel, brake, detailing and quick-service work with the LR-10000 low-rise lift. Built with 10,000-lbs. capacity, this low-rise car lift gives shops a fast way to raise passenger cars and light trucks without tying up a full-height bay. Its open access supports tire service, body repair and inspection tasks, making it a practical productivity lift for busy garages and service departments.
Low-Rise Lift Muscle for Wheel Service That Cannot Wait

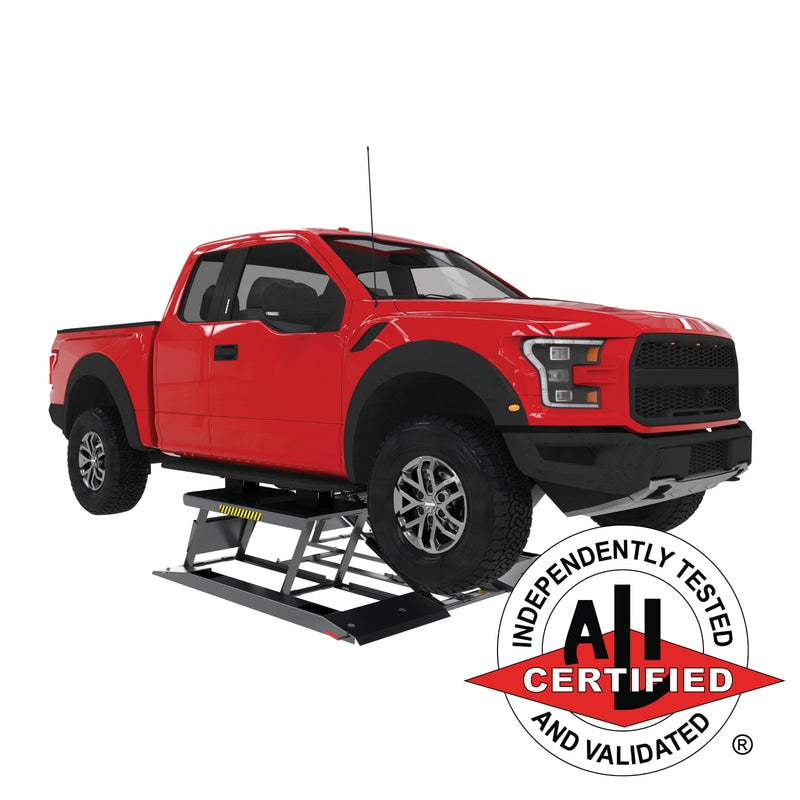

The BendPak LR-10000 Low-Rise Lift gives busy shops serious lifting strength in a compact, drive-over package. With a 10,000-lb. lifting capacity, this low-rise car lift is built for fast wheel service, brake work, suspension access, detailing, and general maintenance on vehicles that many smaller low-rise lifts cannot handle. Its 4-inch collapsed height keeps the profile low enough for sports cars and race cars while still giving technicians the capacity needed for trucks and SUVs. Built-in storage trays keep lug nuts and small parts within reach, while the lift platform and auxiliary adapters help operators contact recommended pick-up points on a wide range of unibody and frame-contact vehicles.
10,000-lb. Capacity in a Compact Shop Footprint

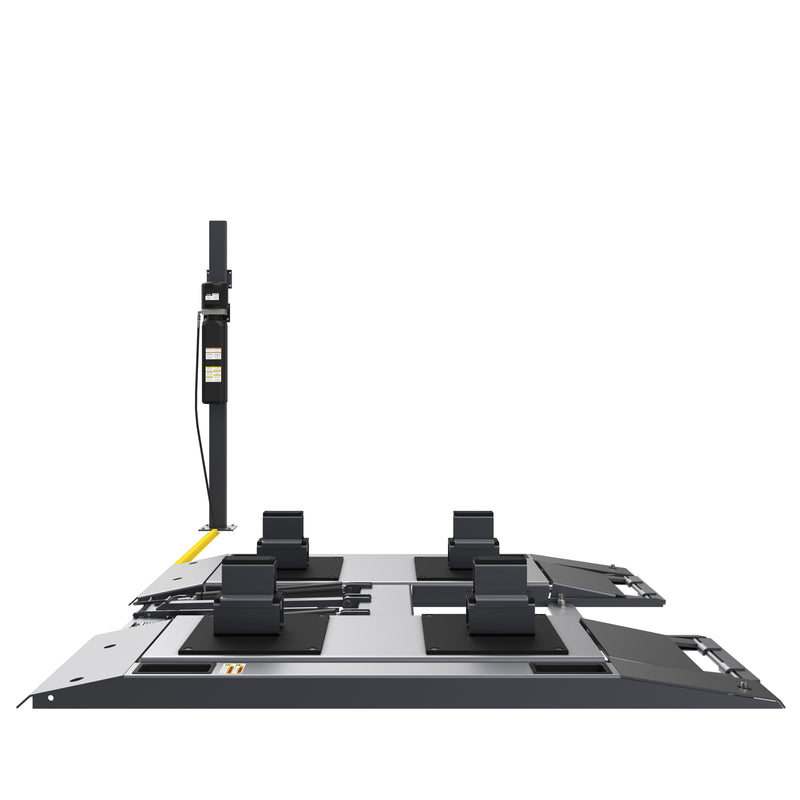

The LR-10000 is made for shops that need more lifting power without giving up valuable floor space. Each lift platform uses four parallelogram frame support bars, giving the lift the strength needed to handle demanding low-rise service work with confidence. Drive-over ramps and side rails help support wider vehicles during approach, while the full-length rubber-topped platforms and multi-height rubber-topped adapters improve vehicle contact versatility. It is a low-rise lift that works harder than its size suggests.
Safer, Smoother Low-Rise Lift Operation

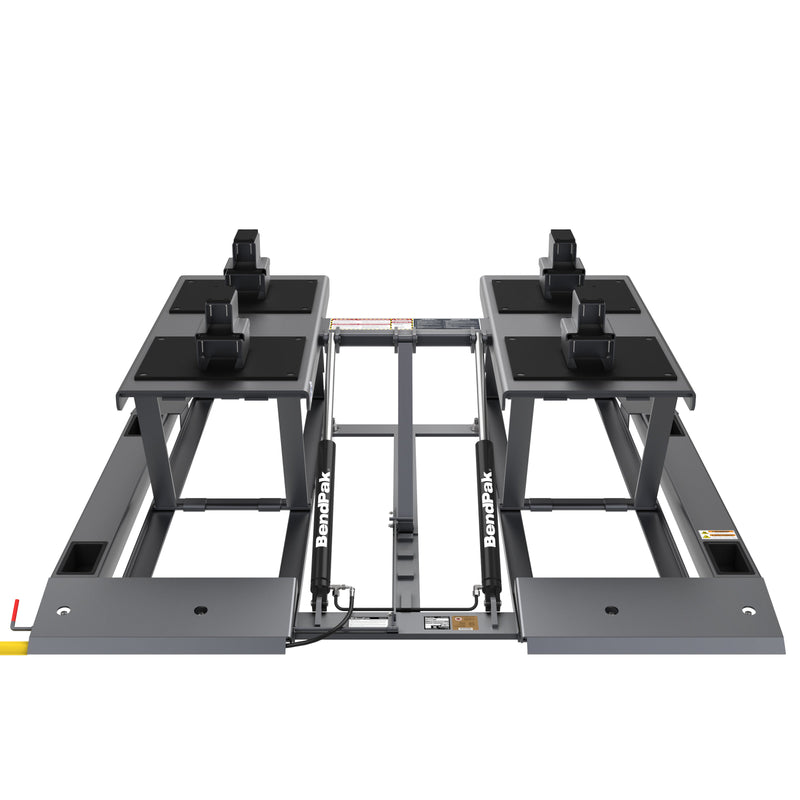

A single-point safety release and dead-man style controls help make the LR-10000 easy to operate while keeping the technician in control during descent. The hands-free safety lock release system is operated away from the lift, so operators can deactivate the locks without pushing or pulling cumbersome release bars. Dual hydraulic cylinders and a flow divider help support even ascents and descents, while three locking positions allow technicians to work at different heights. That means less fatigue, better access, and a smoother workflow during high-volume wheel and brake service.
Built Like a BendPak, Even at Low Rise

The LR-10000 uses a rugged steel channel frame, diamond-plate approach ramps, and a powder-coat finish for long-term durability in professional shop environments. The dropped center crossbar improves drive-over clearance while preserving the structure needed for stable lifting. Detailed installation and maintenance instructions, safety decals, maintenance decals, a vehicle lifting point guide, and a safety instruction placard are included with every lift. For shops that want low-rise speed without lightweight construction, the LR-10000 brings serious BendPak build quality to the bay.
Key Features
10,000-lb. Low-Rise Power
The LR-10000 gives shops low-rise lift speed with enough capacity for many trucks, SUVs, and larger service jobs. It is built for technicians who need fast access without a full-height lift.
4-Inch Collapsed Height
A low 4-inch profile helps the lift accommodate many low-stance vehicles, sports cars, race cars, trucks, and SUVs. The compact footprint also helps keep the bay cleaner when the lift is lowered.

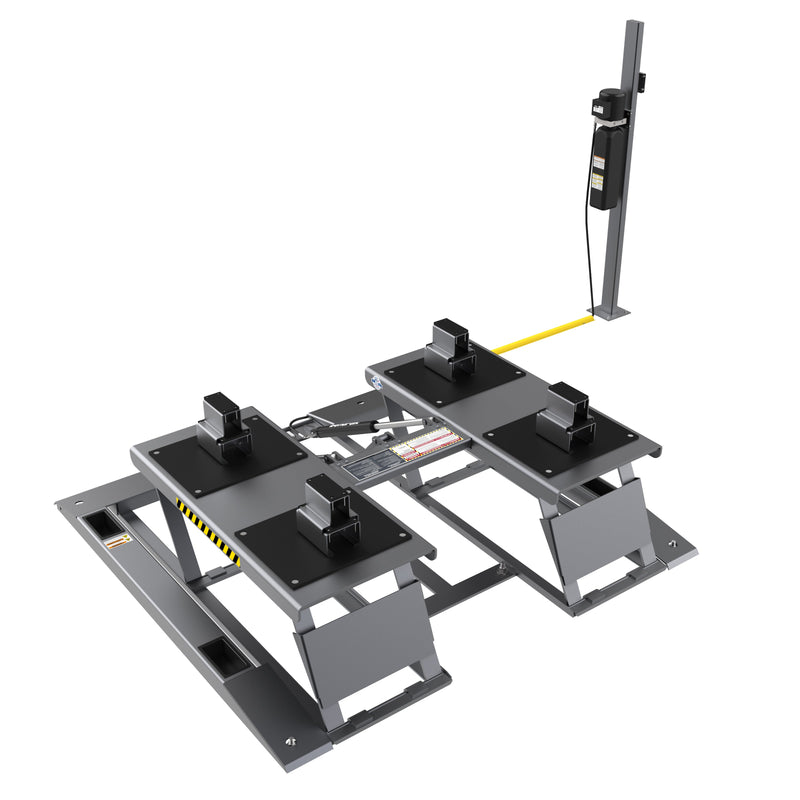

Rubber-Topped Platforms
Full-length rubber-topped platforms and eight multi-height adapters help support a wide range of lift points. The setup improves vehicle contact versatility during quick-service work.

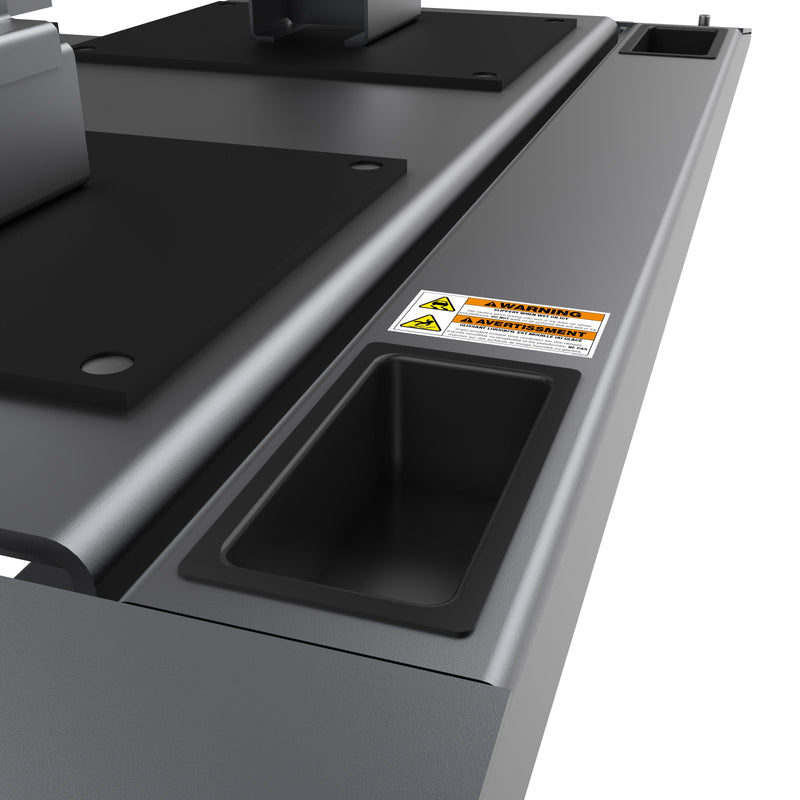

Built-In Parts Trays
Storage trays on each side of the platform help keep lug nuts and small parts from disappearing during service. It is a small detail that saves time when the bay is moving fast.

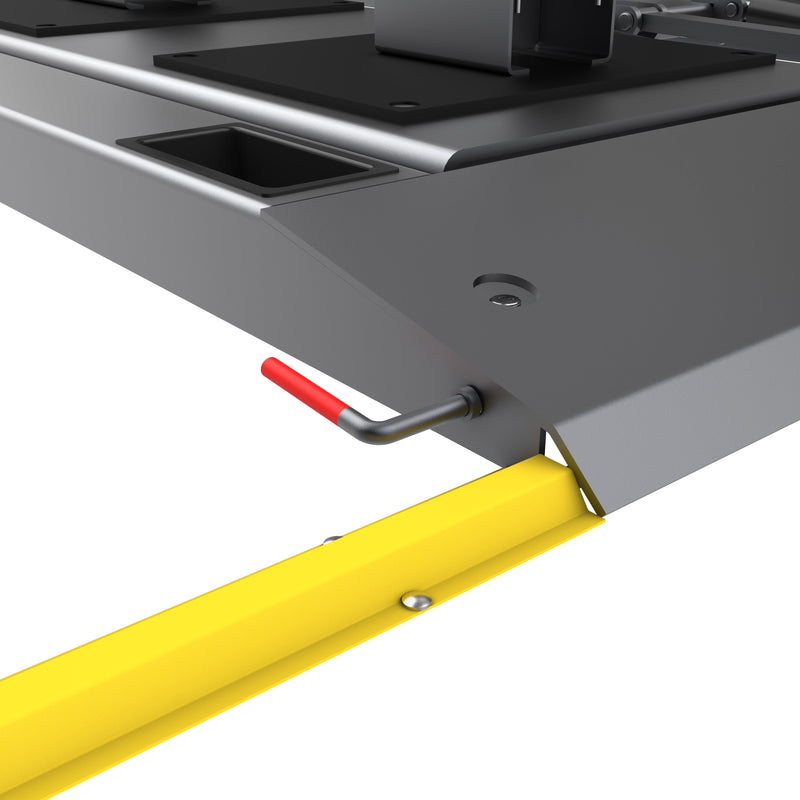

Hands-Free Lock Release
The safety lock release can be operated away from the lift, reducing awkward pushing or pulling on release bars. Technicians get safer, smoother control during lowering.
Rugged Steel Frame
A steel channel frame, diamond-plate ramps, and powder-coat finish give the LR-10000 the durability expected from BendPak. This is compact lifting without flimsy construction.
Specifications (Imperial)
| CAPACITY | |
| Lifting Capacity | 10000 lb |
| RISE | |
| Max Lifting Height | 23 in |
| Max Lifting Height with Blocks | 32 in |
| Lowered Height | 4.5 in |
| Lifting Time | 45 seconds |
| LOCKING HEIGHTS | |
| 1st Locking Position | 14 in |
| 2nd Locking Position | 18 in |
| 3rd Locking Position | 20.75 in |
| 4th Locking Position | 22.5 in |
| DIMENSIONS | |
| Pad Length | 53 in |
| Pad Width | 24 in |
| Length | 83.5 in |
| Width Between Platforms | 24 in |
| POWER UNIT AND VOLTAGE | |
| Horsepower | 1.5 HP |
| Voltage | 208-240V / 50/60 Hz / 1-Phase |
| Sound Level | 40 dBA |
| SHIPPING AND DELIVERY | |
| Shipping Dimensions | 85 x 88 x 24 in |
| Shipping Weight | 1332 lb |
| Shipping Method | LTL |
| Offload Requirement | Forklift |
