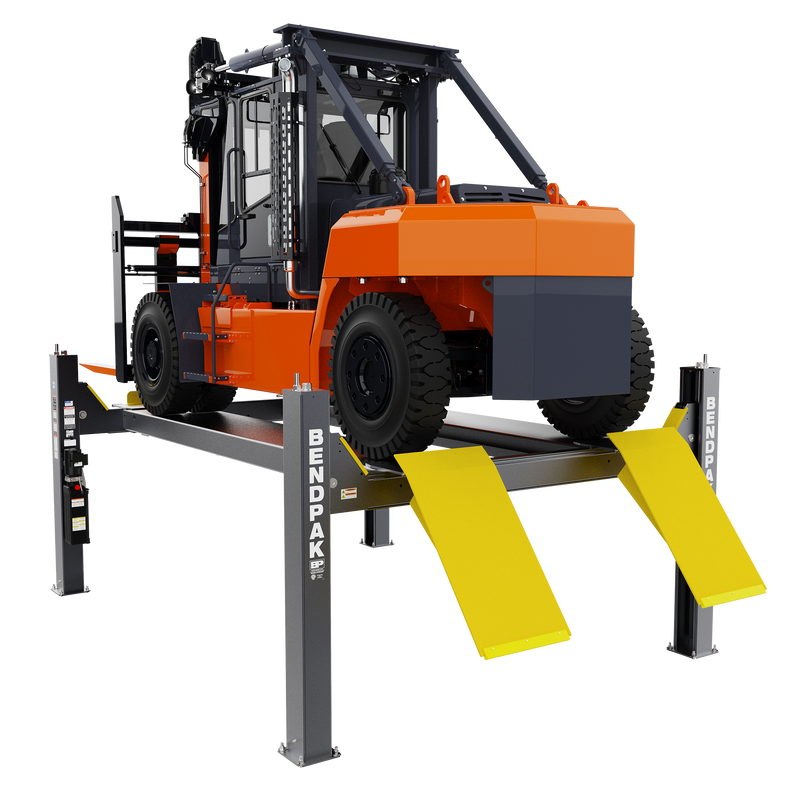

BendPak HDS40FL - 40,000 Lb. Capacity / Four-Post Lift / Forklift
by BendPak
SKU 5175616
Original price
$31,095.00
-
Original price
$31,095.00
Original price
$31,095.00
$31,095.00
-
$31,095.00
Current price
$31,095.00
The BendPak HDS40FL is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 40,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HDS40FL is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 40,000-lbs. (18,144 kg) |
|---|---|
| *Max Capacity / Front Axle | 20,000-lbs. (9,072 kg) |
| *Max Capacity / Rear Axle | 20,000-lbs. (9,072 kg) |
| A - Min. Runway Height: | 9.5" (242 mm) |
| B - Max. Rise: | 60" (1,524 mm) |
| C - Max. Lifting Height: | 69.5" (1,766 mm) |
| Time to Full Rise: | 75 seconds |
| D - Overall Width: | 153.5" (3,899 mm) |
| E - Outside Length: | 197.0" (5,004 mm) |
| F - Overall Length: | 253.75" (6,445 mm) |
| G - Height of Columns: | 91.25" (2,318 mm) |
| H - Width Between Columns: | 133.5" (3,391 mm) |
| I - Drive-Thru Clearance: | 109.0" (2,768 mm) |
| J - Runway Width: | 28.125" (712 mm) |
| K - Length of Runways: | 197.5" (5,013 mm) |
| L - Width Between Runways: | 40.875" (1,038 mm) |
| M - Runway Centerline: | 74.0" (1,880 mm) |
| N - Outside Edge of Runways: | 102.125" (2,592 mm) |
| Locking Positions: | 13 |
| Lock Spacing: | Every 4" / 100 mm |
| Motor: | 220 VAC / 60 Hz, 1Ph |
| Noise: | 45 dB |
| Weight: | 6,748-lbs. (3,060 kg) |
| Dimensions: | 266" x 33" x 37" (6,756 mm x 838 mm x 940 mm) |
