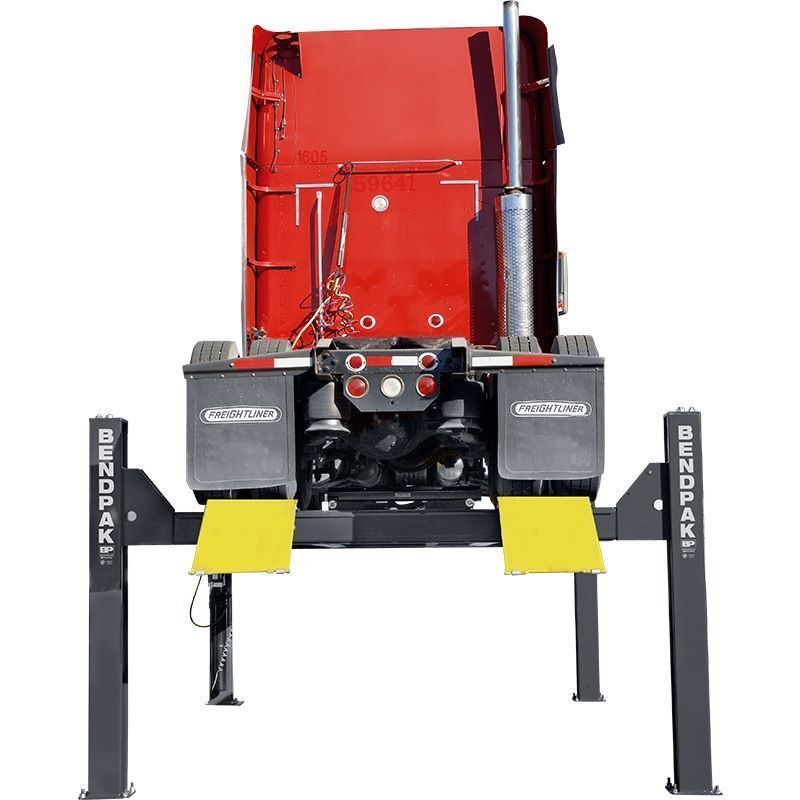

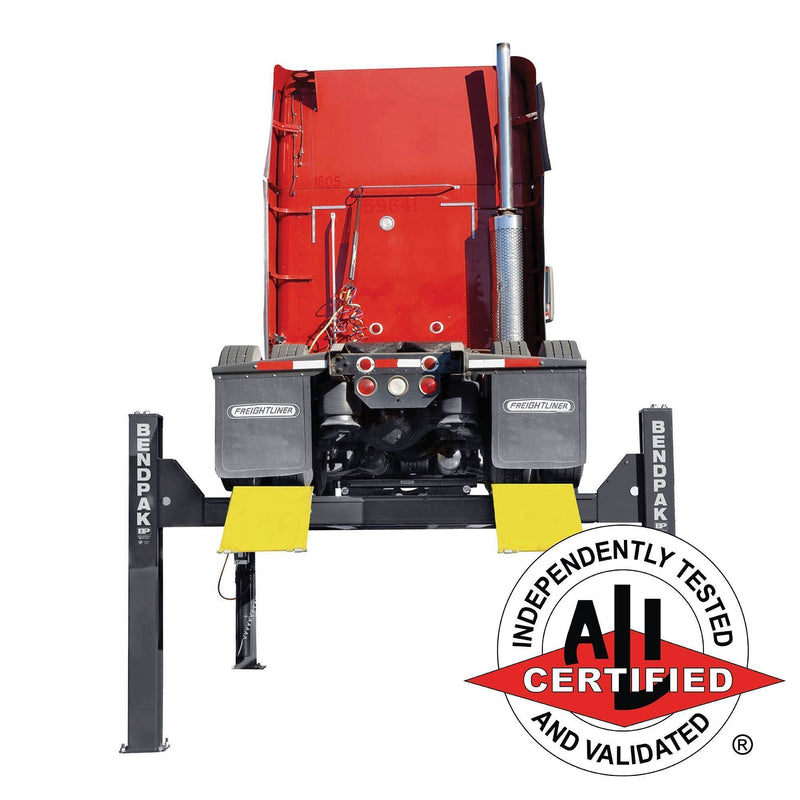

BendPak HDS-27X - 27,000-lb. Capacity / Four-Post Lift / Extended
by BendPak
SKU 5175164
Original price
$25,895.00
-
Original price
$25,895.00
Original price
$25,895.00
$25,895.00
-
$25,895.00
Current price
$25,895.00
The BendPak HDS-27X is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 27,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HDS-27X is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 27,000 lbs. (12,247 kg) |
|---|---|
| *Max Capacity / Front Axle | 13,500 lbs. (6,123 kg) |
| *Max Capacity / Rear Axle | 13,500 lbs. (6,123 kg) |
| A - Min. Runway Height: | 9.5" (241 mm) |
| B - Max. Rise: | 60" (1,524 mm) |
| C - Max. Lifting Height: | 69.5" (1,765 mm) |
| Time to Full Rise: | 75 seconds |
| D - Overall Width: | 153.5" (3,899 mm) |
| E - Outside Length: | 317" (8,051 mm) |
| F - Overall Length: | 372.75" (9,468 mm) |
| G - Height of Columns: | 91.25" (2,318 mm) |
| H - Width Between Columns: | 133.5" (3,391 mm) |
| I - Drive-Thru Clearance: | 109" (2,769 mm) |
| J - Runway Width: | 22" (559 mm) |
| K - Length of Runways: | 315.5" (8,014 mm) |
| L - Width Between Runways: | 40" (1,016 mm) or 45.25" (1,149 mm) |
| M - Runway Centerline: | 67.25" (1,708 mm) or 72.5" (1,842 mm) |
| N - Outside Edge of Runways: | 89.25" (2,267 mm) or 94.5" (2,400 mm) |
| Rated Capacity: | 230" (5,842 mm) |
| 75% Capacity: | 195" (4,953 mm) |
| 50% Capacity: | 165" (4,191 mm) |
| 25% Capacity: | 130" (3,302 mm) |
| Locking Positions: | 13 |
| Lock Spacing: | Every 4" (100 mm) |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Noise: | 45 dB |
| Weight: | 6,944-lbs. (3,149 kg) |
| Dimensions: | 326'' x 27'' x 36'' (8,280 mm x 685 mm x 914 mm) |
