BendPak HDS-18E - 18,000-lb. Capacity / Four-Post Lift / Standard
by BendPak
SKU 5175968
Original price
$21,595.00
-
Original price
$21,595.00
Original price
$21,595.00
$21,595.00
-
$21,595.00
Current price
$21,595.00

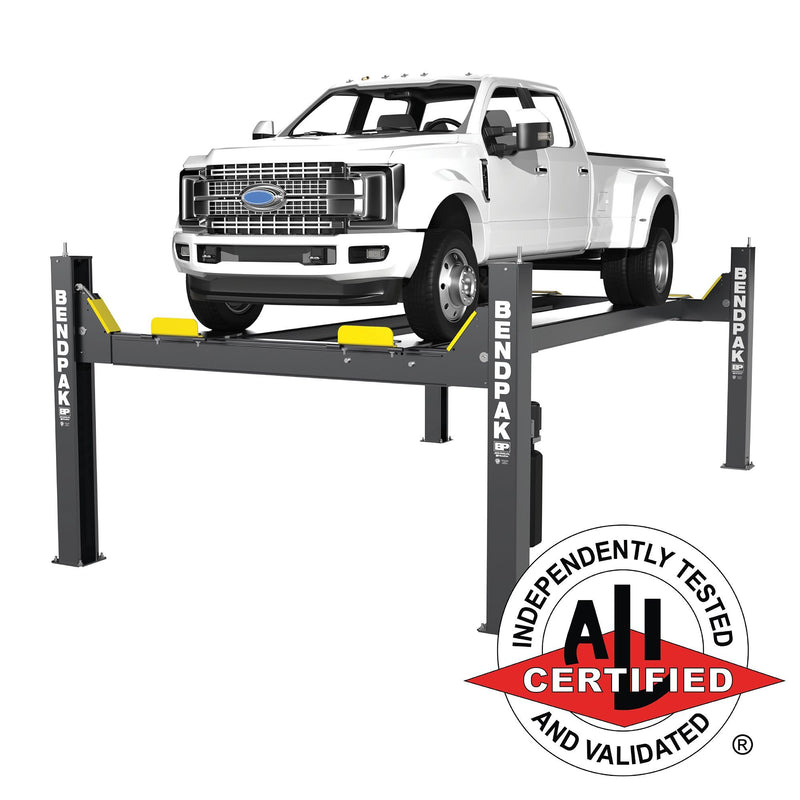

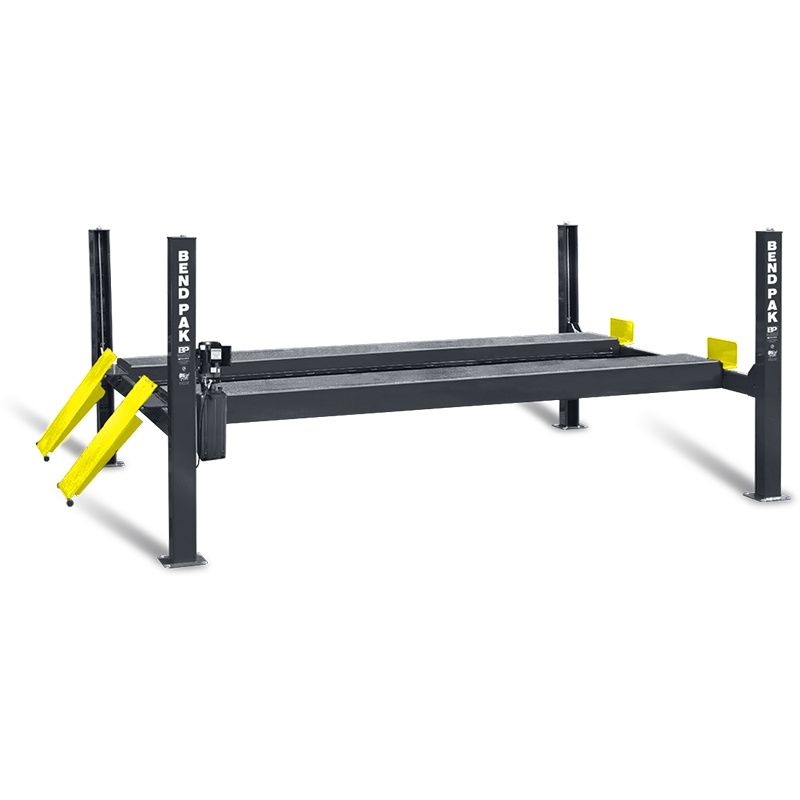

The BendPak HDS-18E is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 18,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HDS-18E is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 18,000 lbs. (8,165 kg) |
|---|---|
| *Max Capacity / Front Axle | 9,000 lbs. (4,082 kg) |
| *Max Capacity / Rear Axle | 9,000 lbs. (4,082 kg) |
| A - Min. Runway Height: | 9.5" (241 mm) |
| B - Max. Rise: | 60" (1,524 mm) |
| C - Max. Lifting Height: | 69.5" (1,765 mm) |
| Time to Full Rise: | 75 seconds |
| D - Overall Width: | 153.5" (3,899 mm) |
| E - Outside Length: | 257" (6,528 mm) |
| F - Overall Length: | 312.75" (7,944 mm) |
| G - Height of Columns: | 91.25" (2,318 mm) |
| H - Width Between Columns: | 133.5" (3,391 mm) |
| I - Drive-Thru Clearance: | 109" (2,769 mm) |
| J - Runway Width: | 22" (559 mm) |
| K - Length of Runways: | 255.5" (6,490 mm) |
| L - Width Between Runways: | 40" (1,016 mm) or 45.25" (1,149 mm) |
| M - Runway Centerline: | 67.25" (1,708 mm) or 72.5" (1,842 mm) |
| N - Outside Edge of Runways: | 89.25" (2,267 mm) or 94.5" (2,400 mm) |
| Rated Capacity: | 185" (4,699 mm) |
| 75% Capacity: | 160" (4,064 mm) |
| 50% Capacity: | 135" (3,429 mm) |
| 25% Capacity: | 110" (2,794 mm) |
| Locking Positions: | 13 |
| Lock Spacing: | Every 4" / 100 mm |
| Motor: | 220 VAC / 60 Hz. 1Ph. |
| Noise: | 45 dB |
| Weight: | 6,003-lbs. (2,722 kg) |
| Dimensions: | 265'' x 27'' x 36'' (6,731 mm x 685 mm x 914 mm) |
