BendPak HDS-14 - 14,000-lb. Capacity / Four-Post Lift / Standard Length
by BendPak
SKU 5175170
Original price
$8,120.00
-
Original price
$8,120.00
Original price
$8,120.00
$8,120.00
-
$8,120.00
Current price
$8,120.00

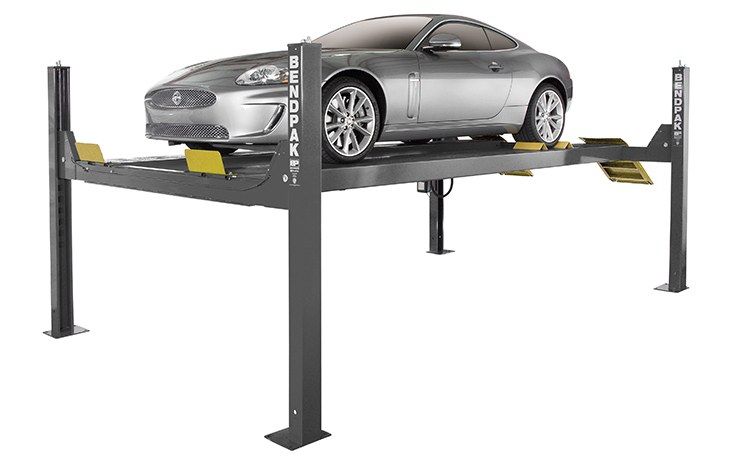

The BendPak HDS-14 is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 14,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HDS-14 is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 14,000 lbs. (6,350 kg) |
|---|---|
| *Max Capacity / Front Axle | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Rear Axle | 7,000 lbs. (3,175 kg) |
| A - Min. Runway Height: | 7.5" (191 mm) |
| B - Max. Rise: | 70" (1,778 mm) |
| C - Max. Lifting Height: | 77.5" (1,969 mm) |
| Time to Full Rise: | 60 seconds |
| D - Overall Width: | 130" (3,302 mm) |
| E - Outside Length: | 213" (5,410 mm) |
| F - Overall Length: | 242" (6,147 mm) |
| G - Height of Columns: | 92" (2,337 mm) |
| H - Width Between Columns: | 120" (3,048 mm) |
| I - Drive-Thru Clearance: | 98" (2,489 mm) |
| J - Runway Width: | 20" (508 mm) |
| K - Length of Runways: | 197.5" (5,017 mm) |
| L - Width Between Runways: | 34.5" (876 mm) or 41.5" (1,054 mm) |
| M - Runway Centerline: | 57.5" (1,461 mm) or 64.5" (1,638 mm) |
| N - Outside Edge of Runways: | 77.5" (1,969 mm) or 84.5" (2,146 mm) |
| Rated Capacity: | 140" (3,556 mm) |
| 75% Capacity: | 120" (3,048 mm) |
| 50% Capacity: | 100" (2,540 mm) |
| 25% Capacity: | 80" (2,032 mm) |
| Locking Positions: | 15 |
| Lock Spacing: | Every 4" (102 mm) |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Noise: | 45 dB |
| Weight: | 2,606 lbs. (1182 kg) |
| Dimensions: | 209" x 22" x 29" (5,309 mm x 558 mm x 737 mm) |
