BendPak HD-9ST - 9,000-lb. Capacity / Four-Post Lift / Narrow Width
by BendPak
SKU 5175860
Original price
$5,995.00
-
Original price
$5,995.00
Original price
$5,995.00
$5,995.00
-
$5,995.00
Current price
$5,995.00

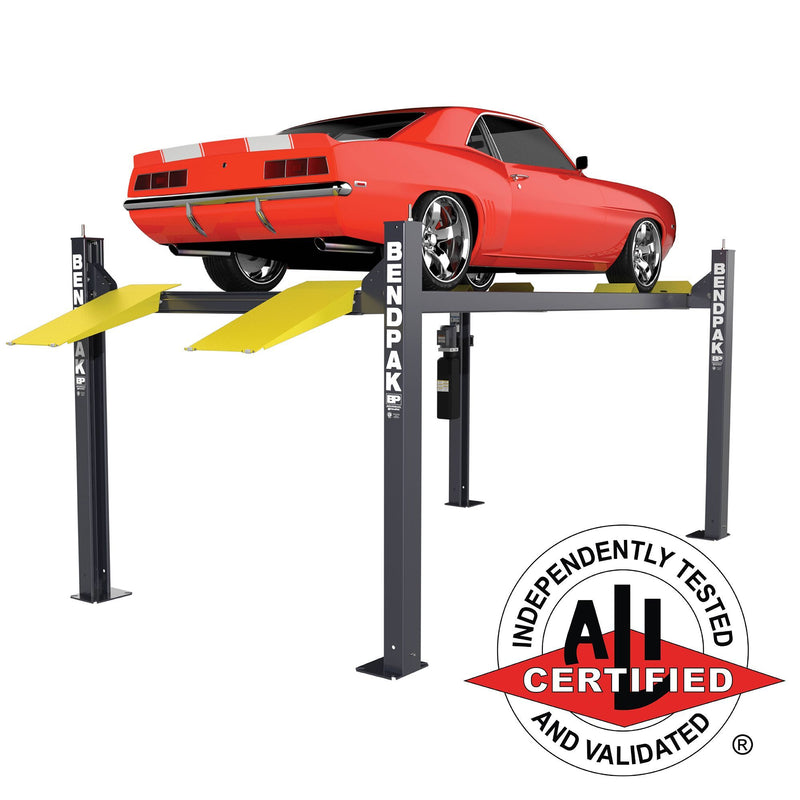

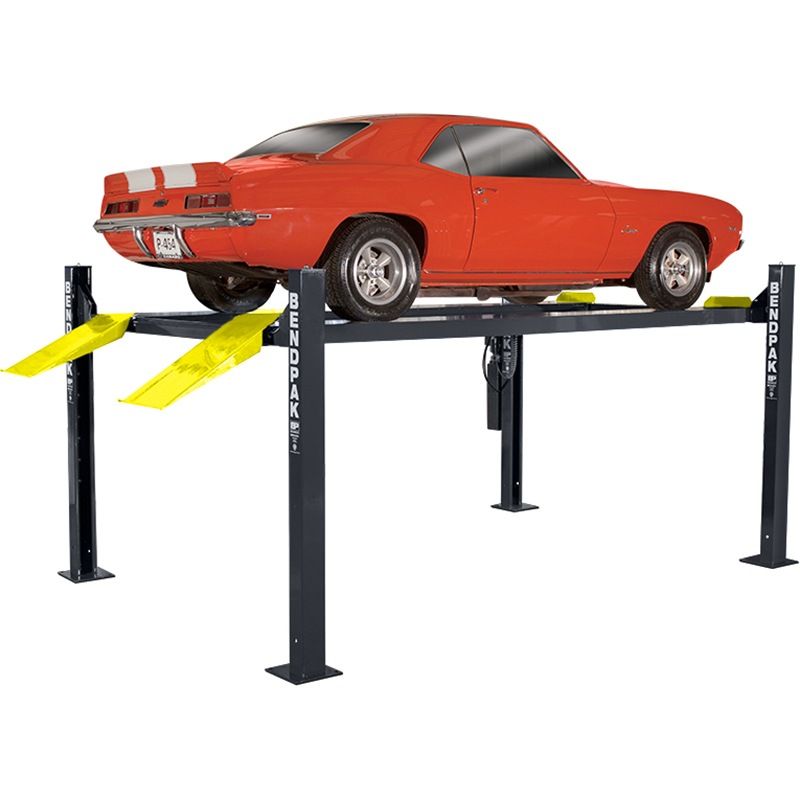

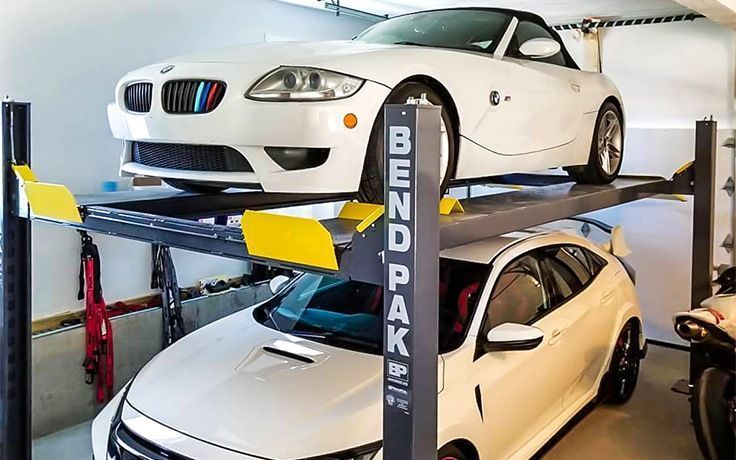

The BendPak HD-9ST is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 9,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HD-9ST is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 9,000 lbs. (4,082 kg) |
|---|---|
| *Max Capacity / Front Axle | 4,500 lbs. (2,041 kg) |
| *Max Capacity / Rear Axle | 4,500 lbs. (2,041 kg) |
| A - Min. Runway Height: | 4.5" (114 mm) |
| B - Max. Rise: | 70" (1,778 mm) |
| C - Max. Lifting Height: | 74.5" (1,892 mm) |
| Time to Full Rise: | 50 seconds |
| D - Overall Width: | 100.25" (2,546 mm) |
| E - Outside Length: | 174" (4,420 mm) |
| F - Overall Length: | 200" (5,080 mm) |
| G - Height of Columns: | 88" (2,235 mm) |
| H - Width Between Columns: | 89.75" (2,280 mm) |
| I - Drive-Thru Clearance: | 76.5" (1,943 mm) |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 164" (4,166 mm) |
| L - Width Between Runways: | 37.5" (952 mm) |
| M - Runway Centerline: | 56.5" (1,435 mm) |
| N - Outside Edge of Runways: | 75.5" (1,918 mm) |
| Rated Capacity: | 115" (2,921 mm) |
| 75% Capacity: | 100" (2,540 mm) |
| 50% Capacity: | 85" (2,159 mm) |
| 25% Capacity: | 70" (1,778 mm) |
| Locking Positions: | 12 |
| Lock Spacing: | Every 4" (102 mm) |
| Motor: | 220 VAC / 60 Hz / 1Ph |
| Noise: | 45 dB |
| Weight: | 1,592 lbs. (722 kg) |
| Dimensions: | 167" x 22" x 28" (4,241 mm x 558 mm x 711 mm) |
