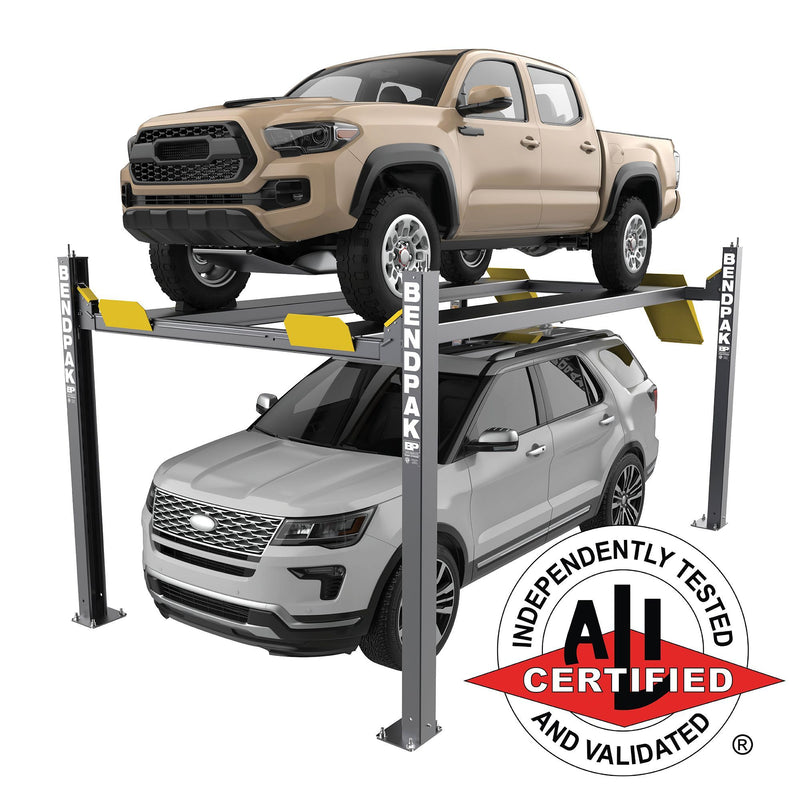

BendPak HD-9EWT - 9,000-lb. Capacity / Four-Post Lift / Extra-Wide / High Lift
by BendPak
SKU 5175607
Original price
$6,795.00
-
Original price
$6,795.00
Original price
$6,795.00
$6,795.00
-
$6,795.00
Current price
$6,795.00
The BendPak HD-9EWT is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 9,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HD-9EWT is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity | 9,000 lbs. / 4,082 kg |
|---|---|
| Max Capacity at Front Axle | 4,500 lbs. / 2,041 kg |
| Max Capacity at Rear Axle | 4,500 lbs. / 2,041 kg |
| A. Min. Runway Height | 4.75 in. / 121 mm |
| B. Maximum Rise | 82.165 in. / 2,087 mm |
| C. Maximum Lifting Height | 87 in. / 2,208 mm |
| D. Overall Width ± .125 in. / 3 mm | 117 in. / 2,970 mm |
| E. Outside Length | 198 in. / 5,028 mm |
| F. Overall Length | 224.50 in. / 5,703 mm |
| G. Height of Post | 100 in. / 2,537 mm |
| H. Distance Between Posts | 107 in. / 2,716mm |
| I. Drive-thru Clearance | 93.25 in. / 2,371 mm |
| J. Runway Width | 19 in. / 482 mm |
| K. Runway Length | 182.25 in. / 4,629 mm |
| L. Width Between Runways | 35.75 in. – 42.0 in. / 910 MIN – 1,068 mm MAX |
| M. Runway Centerline | 57.75 in. – 64.00 in. / 1,468 – 1,626 mm |
| N. Outside Edge of Runways | 76.75 in.- 83 in. / 1,950 – 2,108 mm |
| Max. Load Operating Pressure | 135 in. / 3,429 mm |
| Min. Wheelbase @ Rated Capacity | 115 in. / 2,921 mm |
| Min. Wheelbase @ 75 Capacity | 95 in. / 2,413 mm |
| Min. Wheelbase @ 25 Capacity | 80 in. / 2,032 mm |
| Locking Positions | 17 spaced every 4 in. / 102 mm |
| Motor | 220 VAC, 60 Hz, 1 Ph (special voltages available upon request) |
