BendPak HD-7PXW - 7,000-lb. Capacity / Super-Tall Four-Post Lift / Vehicle Display Platform
by BendPak
SKU 5175516
Original price
$9,695.00
-
Original price
$9,695.00
Original price
$9,695.00
$9,695.00
-
$9,695.00
Current price
$9,695.00

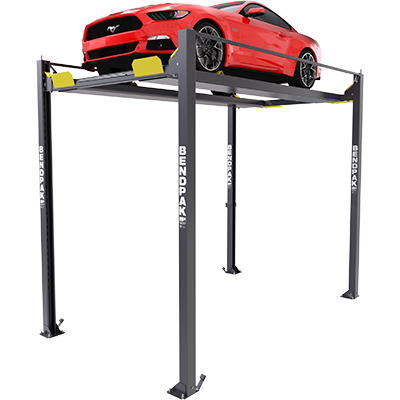

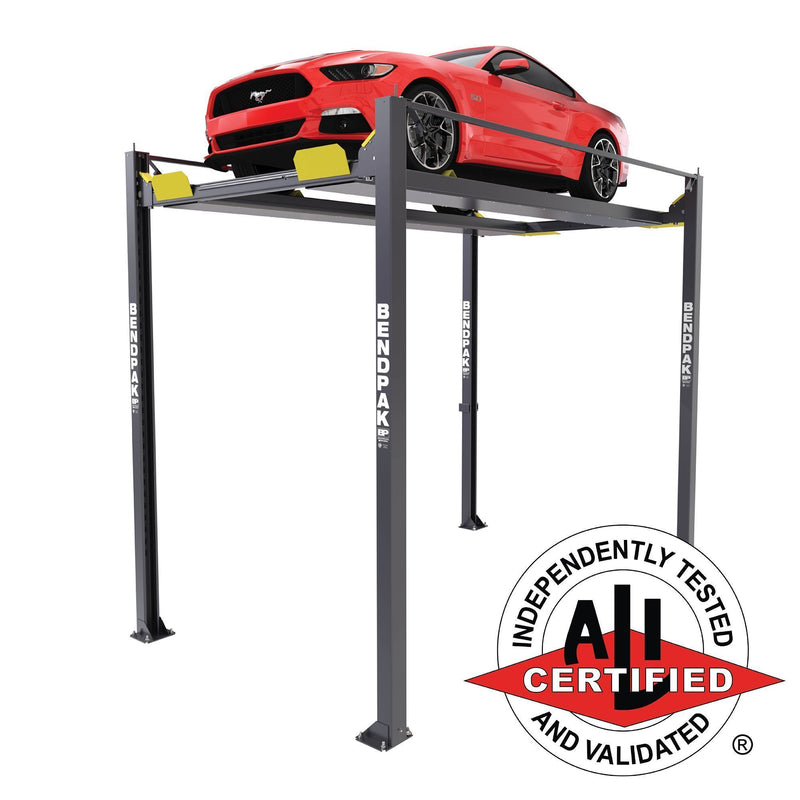

The BendPak HD-7PXW is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 7,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HD-7PXW is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 7,000 lbs. (3,175 kg) |
|---|---|
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Min. Runway Height: | 5" (127 mm) |
| B - Max. Rise: | 140.25" (3,562 mm) |
| C - Max. Lifting Height: | 145.25" (3,689 mm) |
| Time to Full Rise: | 50 seconds |
| D - Overall Width: | 110.25" (2,800 mm) |
| E - Outside Length: | 198" (5,029 mm) |
| F - Overall Length (includes ramps): | 213" (5,688 mm) |
| G - Height of Columns: | 158" (4,013 mm) |
| Top Lock Height: | 143.82in" (3,653 mm) |
| H - Width Between Columns: | 100.25" (2,546 mm) |
| I - Drive-Thru Clearance: | 86.5" (2,197 mm) |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 182.25" (4,629 mm) |
| L - Width Between Runways: | 35" (889 mm) or 41" (1,041 mm) |
| M - Runway Centerline: | 57" (1,448 mm) or 63" (1,600 mm) |
| N - Outside Edge of Runways: | 75.75" (1,924 mm) or 82" (2,083 mm) |
| Rated Capacity: | 135" (3,429 mm) |
| 75% Capacity: | 115" (2,921 mm) |
| 50% Capacity: | 95" (2,413 mm) |
| 25% Capacity: | 80" (2,032 mm) |
| Locking Positions: | 31 |
| Lock Spacing: | Every 4" (102 mm) |
| Motor: | 208-230 VAC / 50-60 Hz / 1Ph |
| Noise: | 45 dB |
| Weight: | 2,254 lbs. (1022 kg) |
| Dimensions: | 192'' x 22'' x 31'' (4,876 mm x 558 mm x 787 mm) |
