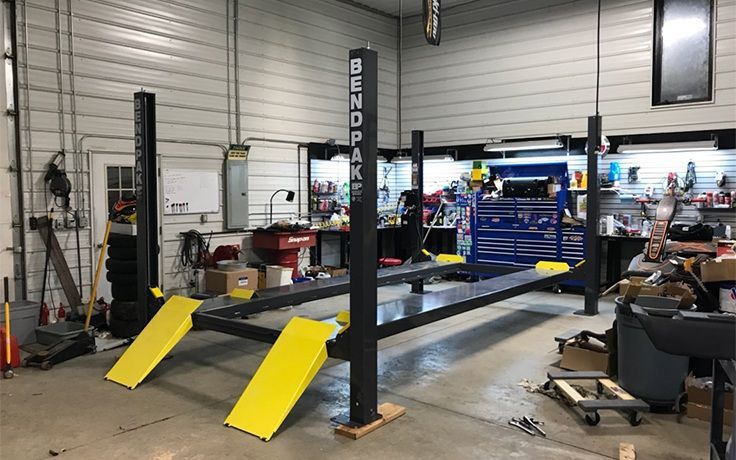

BendPak HD-7P - 7,000-lb. Capacity / Narrow Car Lift / High Rise
by BendPak
SKU 5175510
Original price
$6,595.00
-
Original price
$6,595.00
Original price
$6,595.00
$6,595.00
-
$6,595.00
Current price
$6,595.00

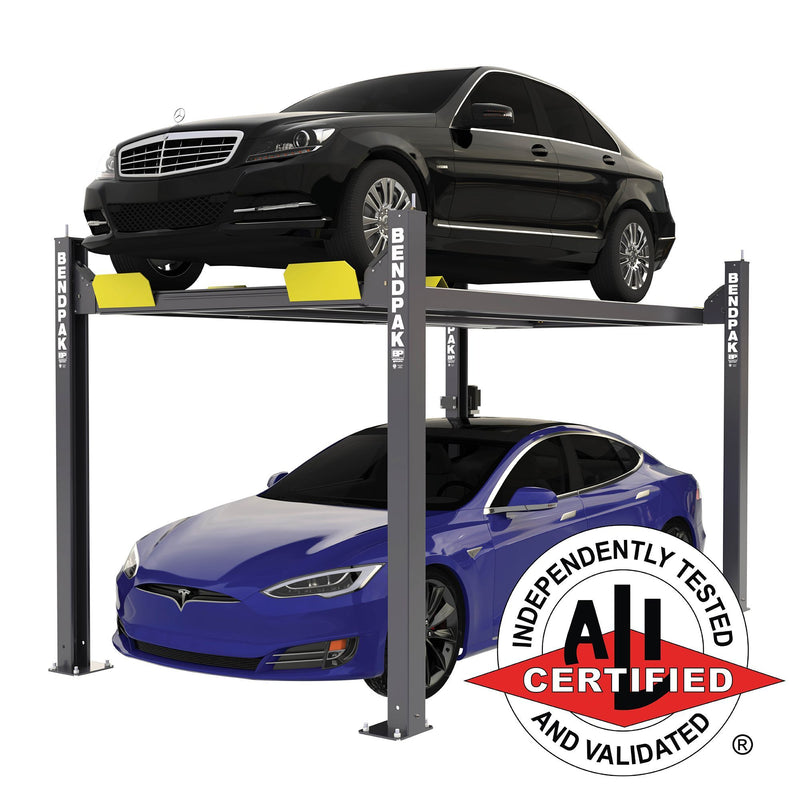

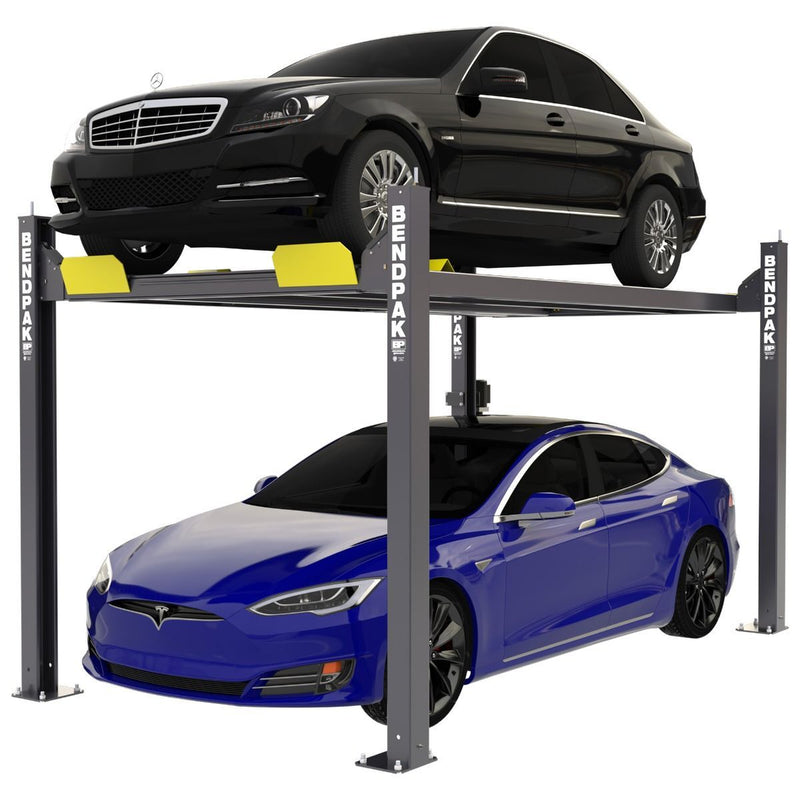

The BendPak HD-7P is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 7,000-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HD-7P is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 7,000 lbs. (3,175 kg) |
|---|---|
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Min. Runway Height: | 5" (127 mm) |
| B - Max. Rise: | 82" (2,083 mm) |
| C - Max. Lifting Height: | 85.75" (2,178 mm) |
| Time to Full Rise: | 35 seconds |
| D - Overall Width: | 100.25” (2,546 mm) |
| E - Outside Length: | 174" (4,420 mm) |
| F - Overall Length: | 200.5" (5,093 mm) |
| G - Height of Columns: | 100" (2,540 mm) |
| H - Width Between Columns: | 90.25” (2,292 mm) |
| I - Drive-Thru Clearance: | 76.5" (1,943 mm) |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 158.25" (4,020 mm) |
| L - Width Between Runways: | 34.5" (876 mm) |
| M - Runway Centerline: | 56.5" (1,435 mm) |
| N - Outside Edge of Runways: | 75.5" (1,918 mm) |
| Rated Capacity: | 115" (2,921 mm) |
| 75% Capacity: | 100" (2,540 mm) |
| 50% Capacity: | 85" (2,159 mm) |
| 25% Capacity: | 70" (1,778 mm) |
| Locking Positions: | 17 |
| Lock Spacing: | Every 4" (102 mm) |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Noise: | 45 dB |
| Weight: | 1,756-lbs. (796 kg) |
| Dimensions: | 167" x 22" x 28" (4,242 mm x 558 mm x 711 mm) |
