BendPak HD-7500BLX - 100" Height, 132" Width, 224" Length 7,500-lb. Capacity / Vehicle and Boat Storage Lift / 82" Rise
by BendPak
SKU 5175315
Original price
$8,595.00
-
Original price
$8,595.00
Original price
$8,595.00
$8,595.00
-
$8,595.00
Current price
$8,595.00

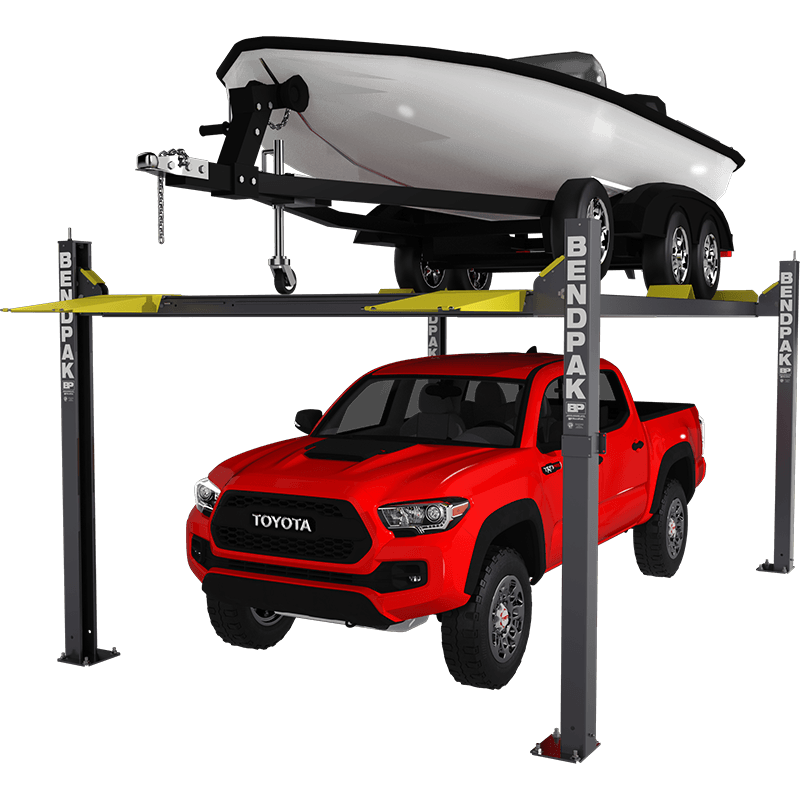

The BendPak HD-7500BLX is a four-post lift engineered for durable, everyday use in professional and home garage settings. It offers a 7,500-lb. lifting capacity, allowing it to accommodate a wide range of vehicles safely and securely. Drive-on ramps and a rugged steel frame make loading straightforward, while the runway design keeps access to the vehicle's underside convenient for service, storage, or display purposes. Built from heavy-gauge steel components, the HD-7500BLX is designed to provide long-term reliability in demanding shop or storage environments.
| Lifting Capacity* | 7,500 lbs. (3,402 kg) |
|---|---|
| *Max Capacity / Front Axle | 3,750 lbs. (1,701 kg) |
| *Max Capacity / Rear Axle | 3,750 lbs. (1,701 kg) |
| A - Min. Runway Height: | 5" (127 mm) |
| B - Max. Rise: | 82" (2,083 mm) |
| C - Max. Lifting Height: | 85.75" (2,178 mm) |
| Time to Full Rise: | 55 seconds |
| D - Overall Width: | 132" (3,353 mm) |
| E - Outside Length: | 198" (5,029 mm) |
| F - Overall Length: | 224.5" (5,702 mm) |
| G - Height of Columns: | 100" (2,540 mm) |
| H - Width Between Columns: | 122" (3,099 mm) |
| I - Drive-Thru Clearance: | 108.5" (2,756 mm) |
| J - Runway Width: | 19" (483 mm) |
| K - Length of Runways: | 182.25" (4,629 mm) |
| L - Width Between Runways: | 46.5" (1,181 mm) or 66.5" (1,689 mm) |
| M - Runway Centerline: | 68.5" (1,740 mm) or 88.5" (2,248 mm) |
| N - Outside Edge of Runways: | 87.5" (2,223 mm) or 107.5" (2,731 mm) |
| Rated Capacity: | 135" (3,429 mm) |
| 75% Capacity: | 115" (2,921 mm) |
| 50% Capacity: | 95" (2,413 mm) |
| 25% Capacity: | 80" (2,032 mm) |
| Locking Positions: | 17 |
| Lock Spacing: | Every 4" (102 mm) |
| Motor: | 220 VAC / 60 Hz / 1 Ph |
| Noise: | 45 dB |
| Weight: | 1,910 lbs. (866 kg) |
| Dimensions: | 191'' x 22'' x 28'' (4,851 mm x 558 mm x 711 mm) |
