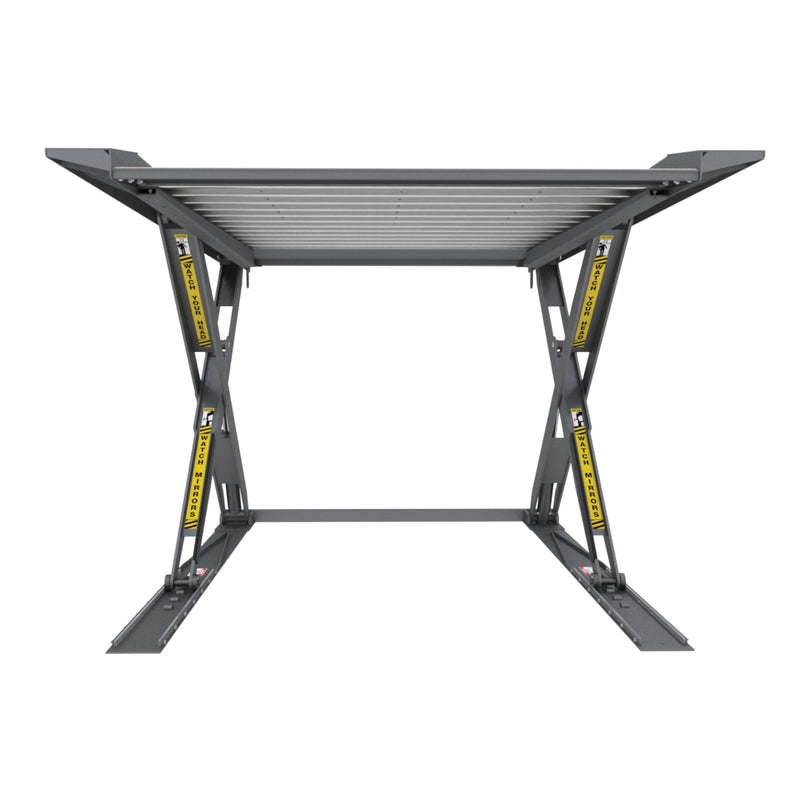

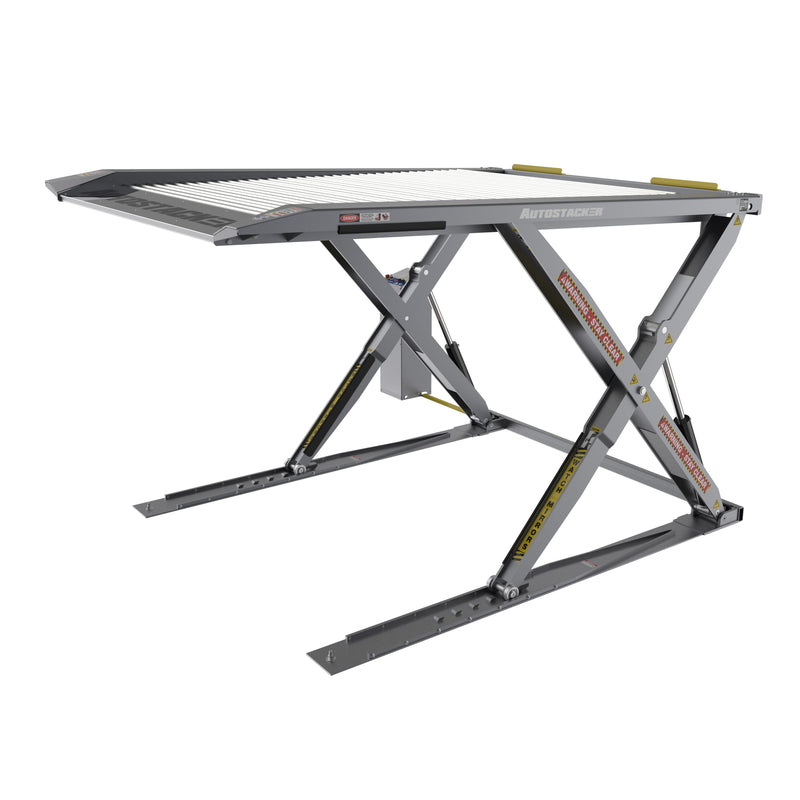

BendPak A6W - 6,000-lb. Capacity / Platform Parking Lift / Extra Wide (Autostacker)
by BendPak
SKU 5175282
Original price
$14,195.00
-
Original price
$14,195.00
Original price
$14,195.00
$14,195.00
-
$14,195.00
Current price
$14,195.00

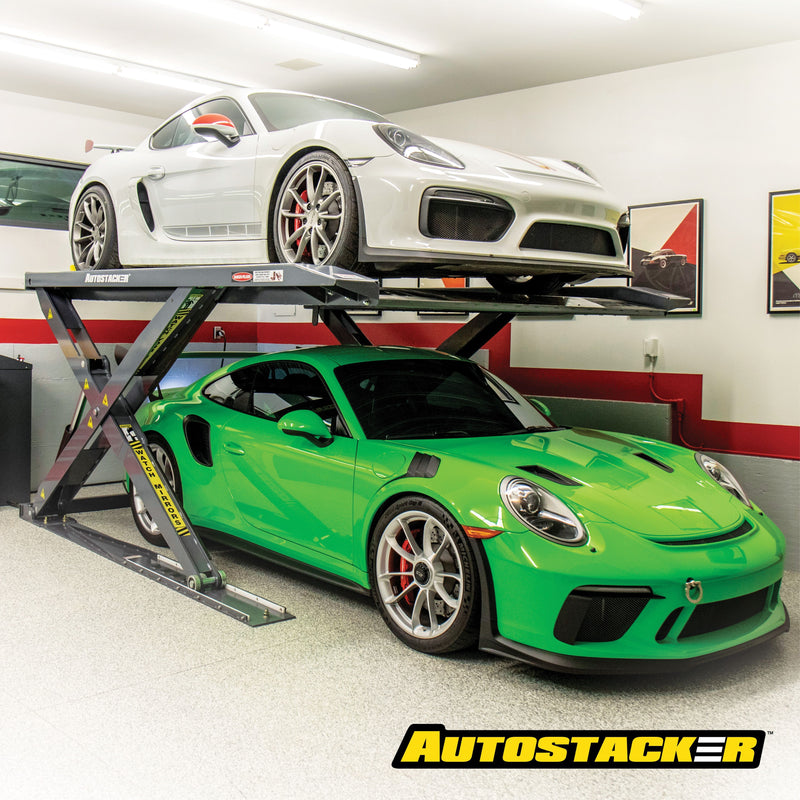

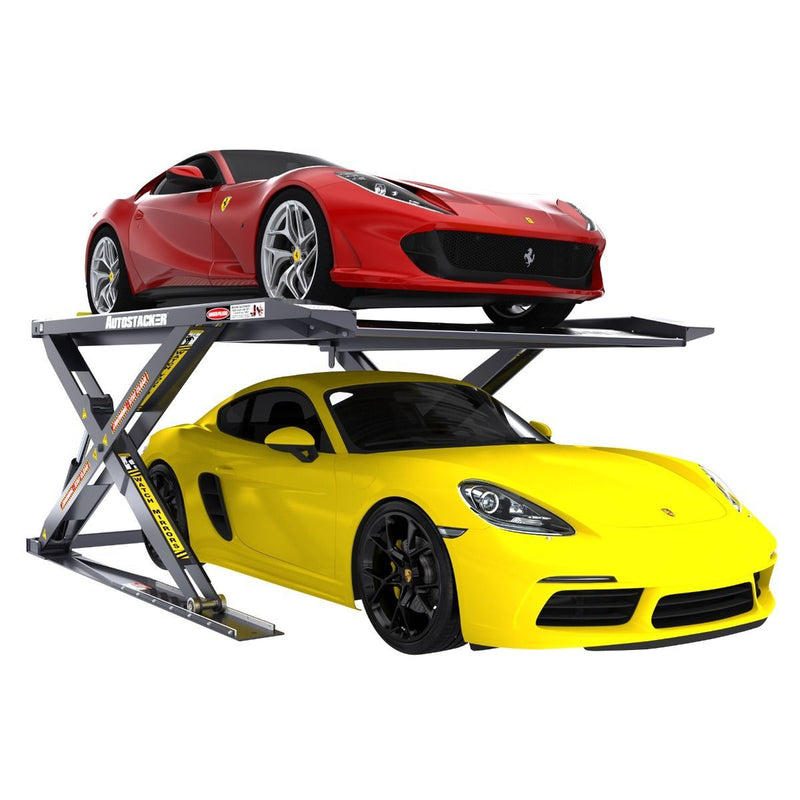

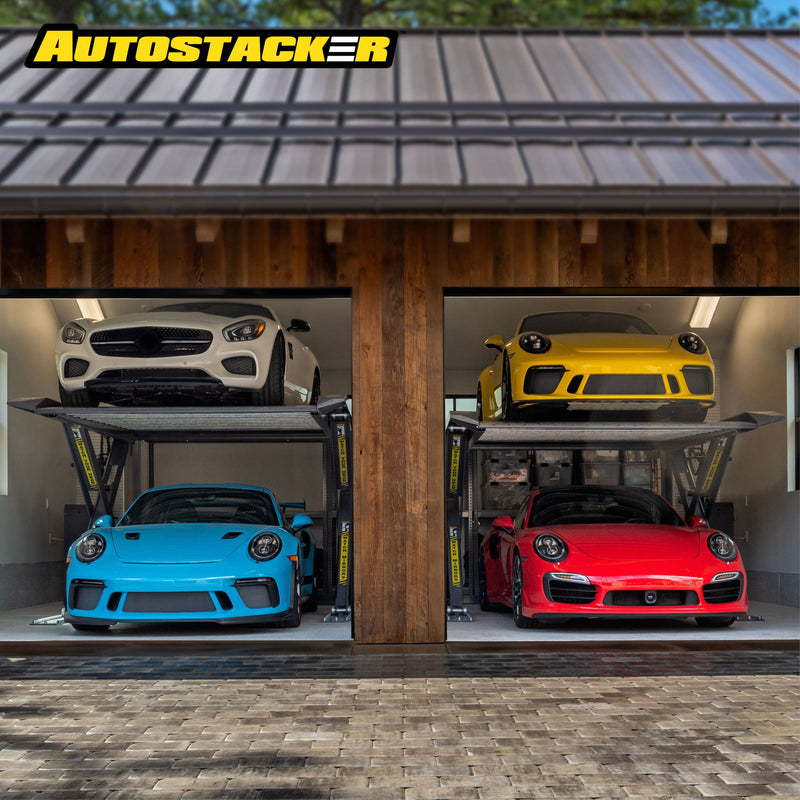

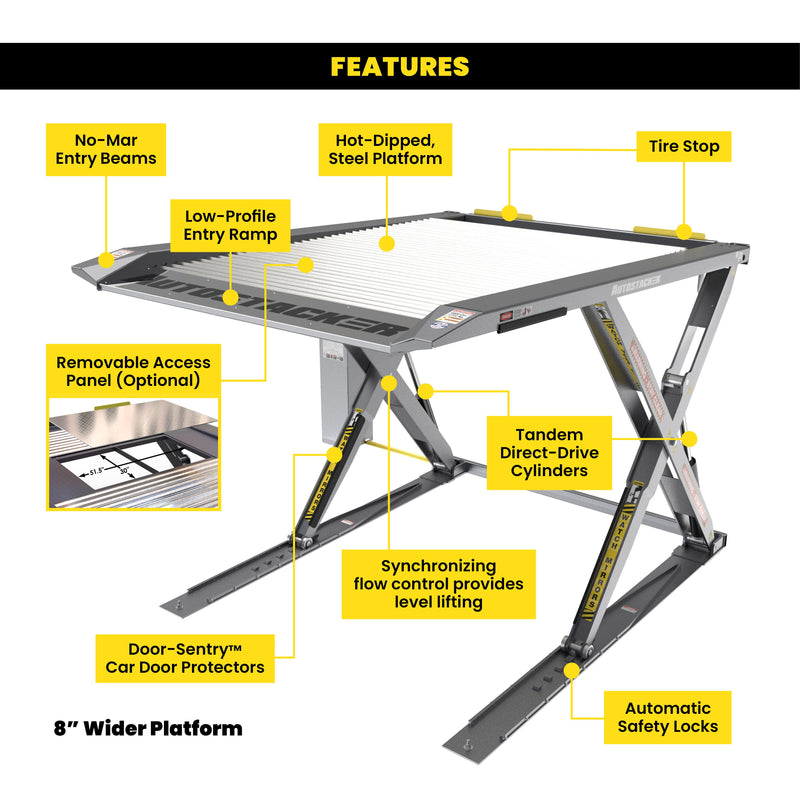

Meet the Autostacker A6W, an extra-wide version of the world's best fully collapsible parking lift. Like our standard-width model, the extra-wide edition offers a safe, easy way to store two vehicles in a single parking space. This model offers 8 more inches of interior space, making it easier to open vehicle doors and make a clean exit.

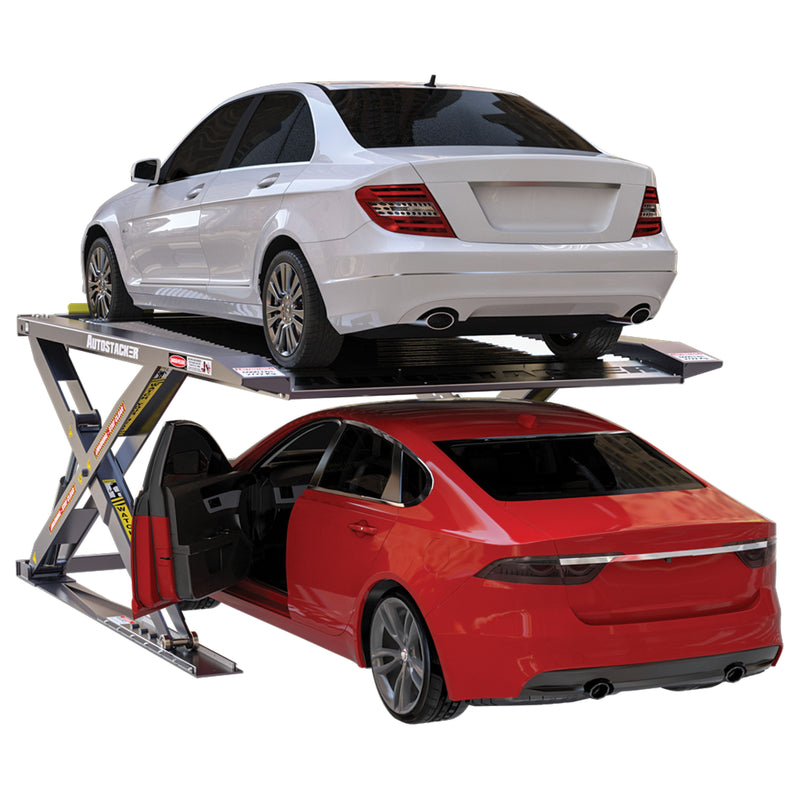

Autostacker is compact, which lets it fit in tighter spaces with ease. The potential downside of this: There are precious few inches to open a vehicle door when a car is pulled front-first into the lower space. With 8 extra inches for door clearance, the A6W offers more space for ingress and egress.
| Style | Multi-Platform Parking Lift |
|---|---|
| Lifting Capacity | 6,000 lbs. (2,722 kg) |

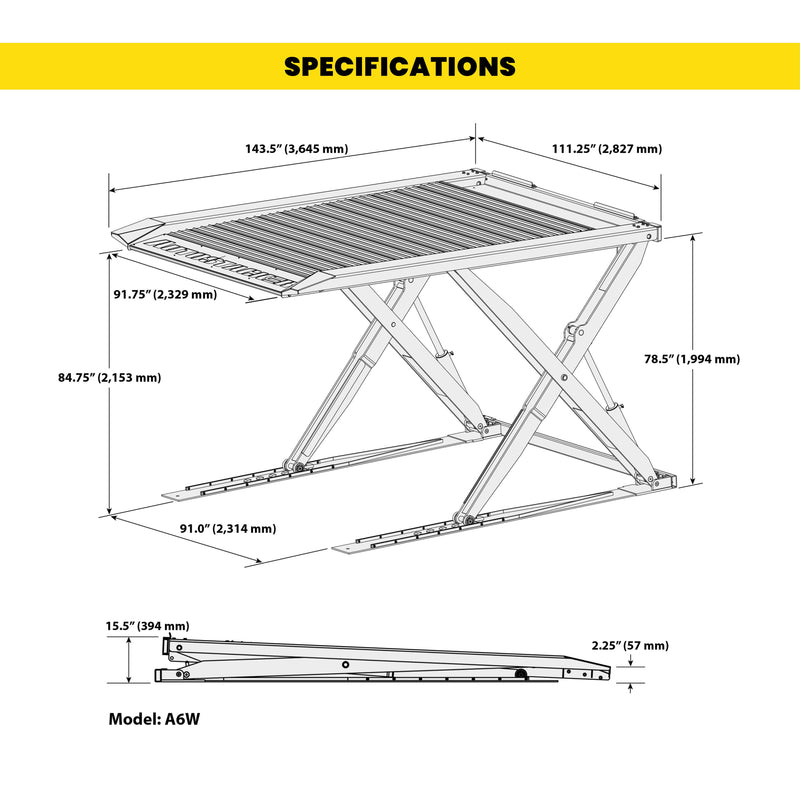

| Overall width | 111” (2,815 mm) |
| Overall length | 144” (3,658 mm) |
| Platform length | 124” (3,150 mm) |
| Platform width | 91.75” (2,331 mm) |

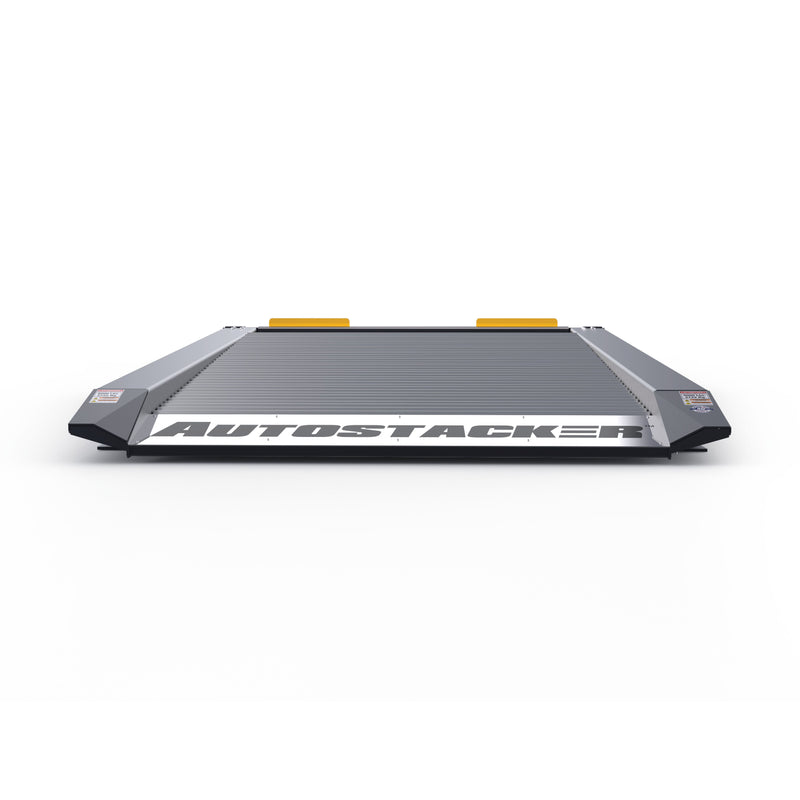

| Platform height (forward) | 13” (330 mm) |

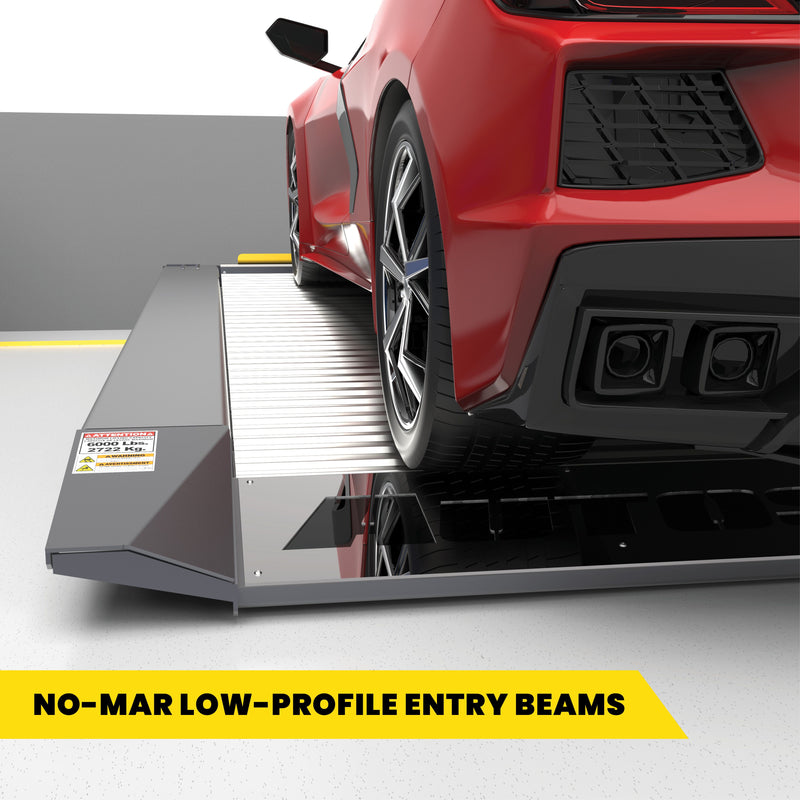

| Ramp height (entry) | 2” (51 mm) |
| Maximum underclearance | 80” (2,032 mm) |

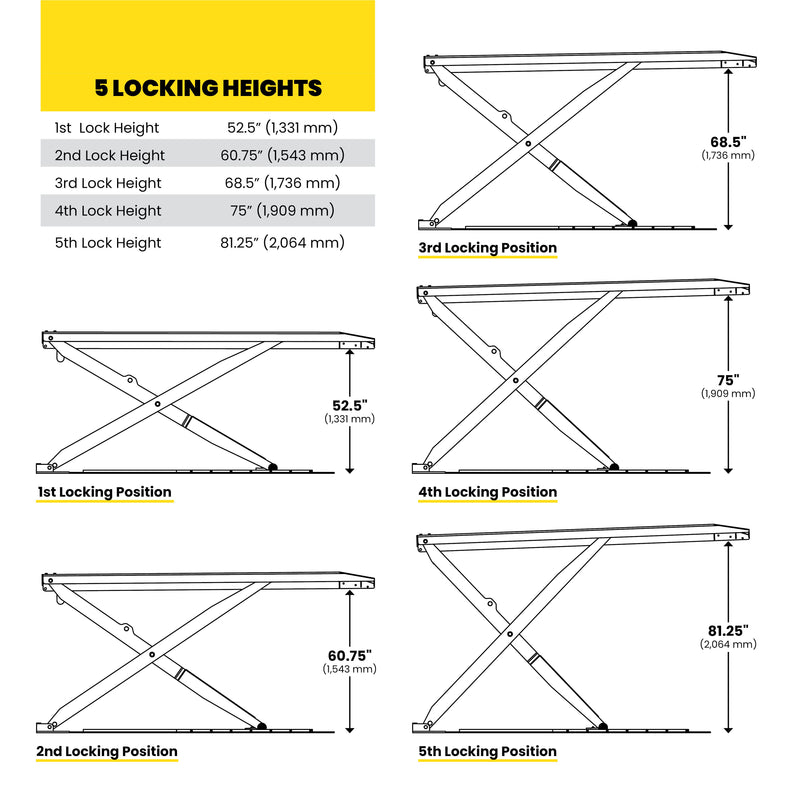

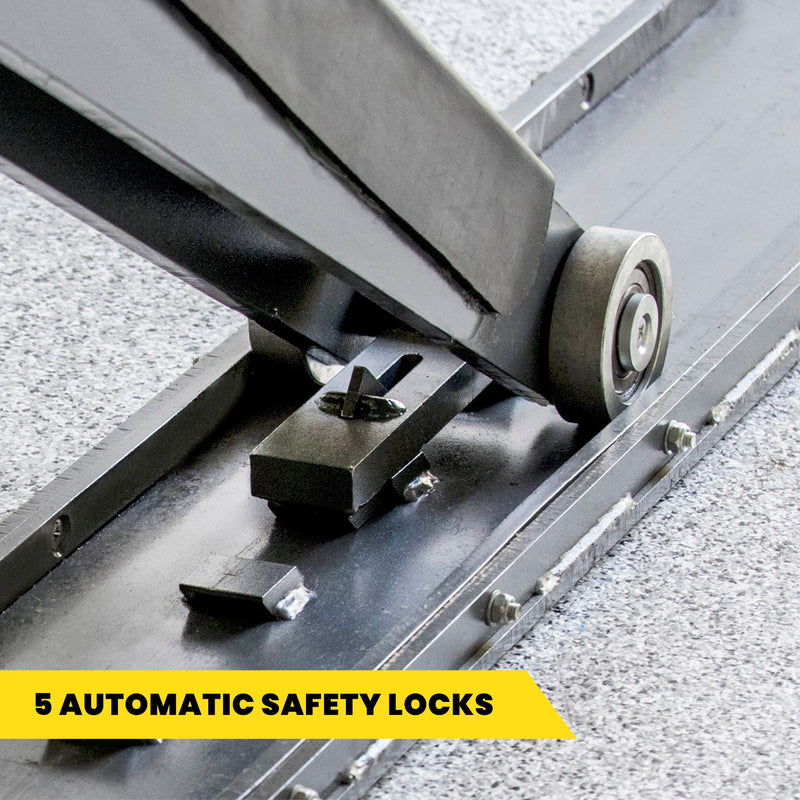

| Under clearance on 1st lock (lowest) | 52.5" (1,331 mm) |
| Under clearance on 2nd lock | 60.75" (1,543 mm) |
| Under clearance on 3rd lock | 68.5" (1,736 mm) |
| Under clearance on 4th lock | 75" (1,909 mm) |
| Under clearance on 5th lock (highest) | 81.25" (2,064 mm) |
| Motor | 208-240V, 50/60 Hz / 1 Ph |
| Noise Level | 52 dB |
| Shipping weight | 3,350 lbs. (1,530 kg) |
| Shipping Dimensions | 144'' x 28'' x 30'' (3,657 mm x 711 mm x 762 mm) |
